LG5796XPW0 02 – LITERATURE AND OPTIONAL

LG5796XPW0 02 – LITERATURE AND OPTIONAL

Written by

in

LG5796XPW0 02 – LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL 72112
Platinum (Uncut)
WPL LIT677967
Enamal, Toast (1 Qt. Uncut)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL 261880
72113 Whirlpool Touch-Up Paint
WPL LIT677971
Paint, Spray (13 Oz.) (Platinum)
Golden Harvest (Uncut)
WPL LIT696751
Dryer
Washer (Belt Drive)
WPL LIT695879
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL LIT696233
WP72107 Whirlpool Touchup
Wire, 25` Roll (Red 12 Ga.)
Leveler (Thinner)
Almond (Uncut)
Guide, Dryer
Toast

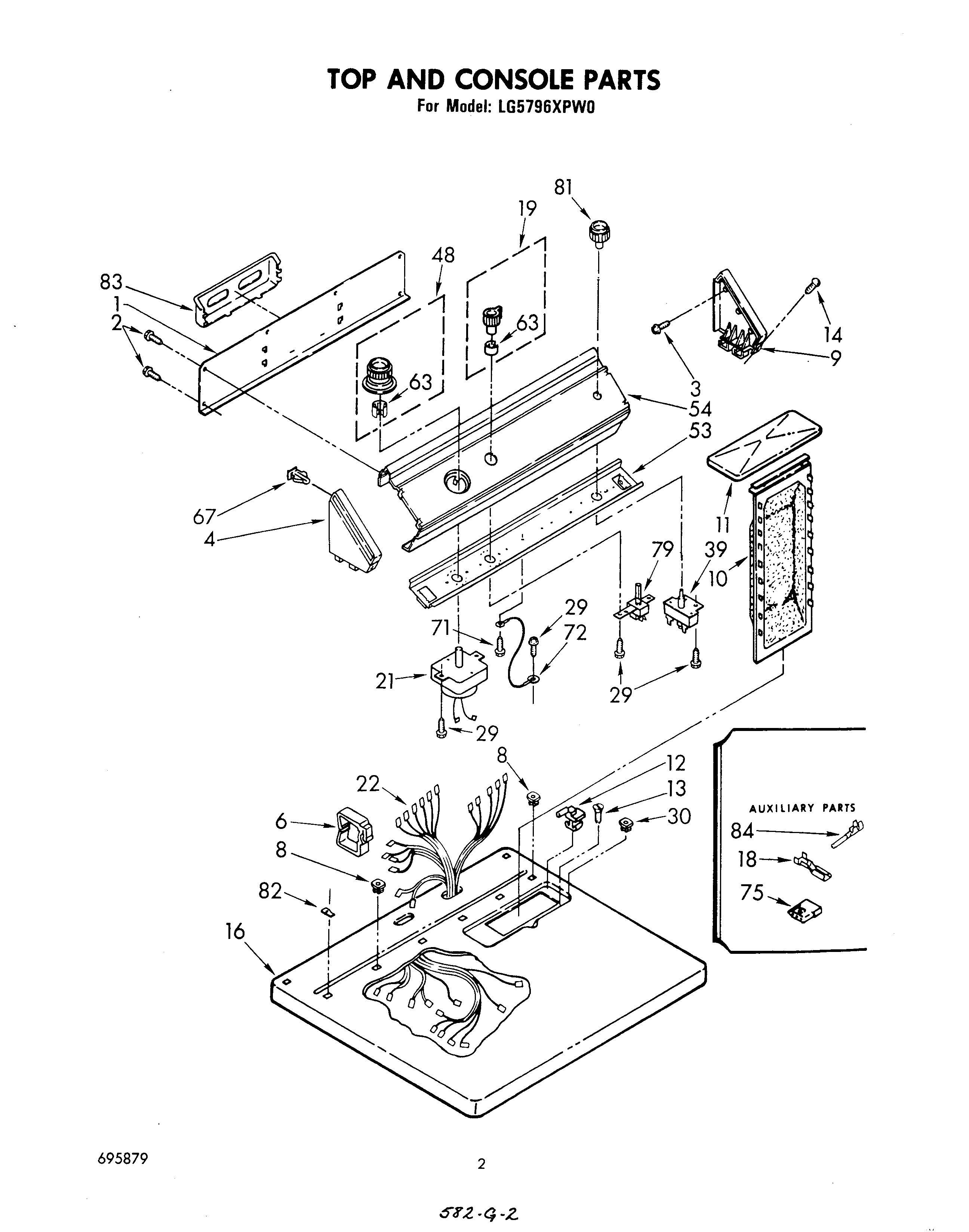

1Panel, Rear
3WPL 355326
4Cap, End (L.H.)
6Clip, Harness (Rear Bulkhead Area)
8Nut, Push-In (2)
9WPL 63795
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (Golden Harvest)
16Top (White)
16Top (Toast)
16Top (Platinum)
16Top (Almond)
18WP94614 Whirlpool Terminal
19Knob, Water Level
21Timer Assembly 60 Hz.
22Harness, Wiring
29WP3390631 Whirlpool Screw
3098460 Whirlpool Nut
39Switch, Push-To-Start
39(Alt.)
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54PANEL, CONTROL
63WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
71SCREW
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
79Switch, Temperature Selector
81Knob, Push To Start
82Stop, Push-In Top
83Rack, Literature
84WP596797 Whirlpool Terminal
