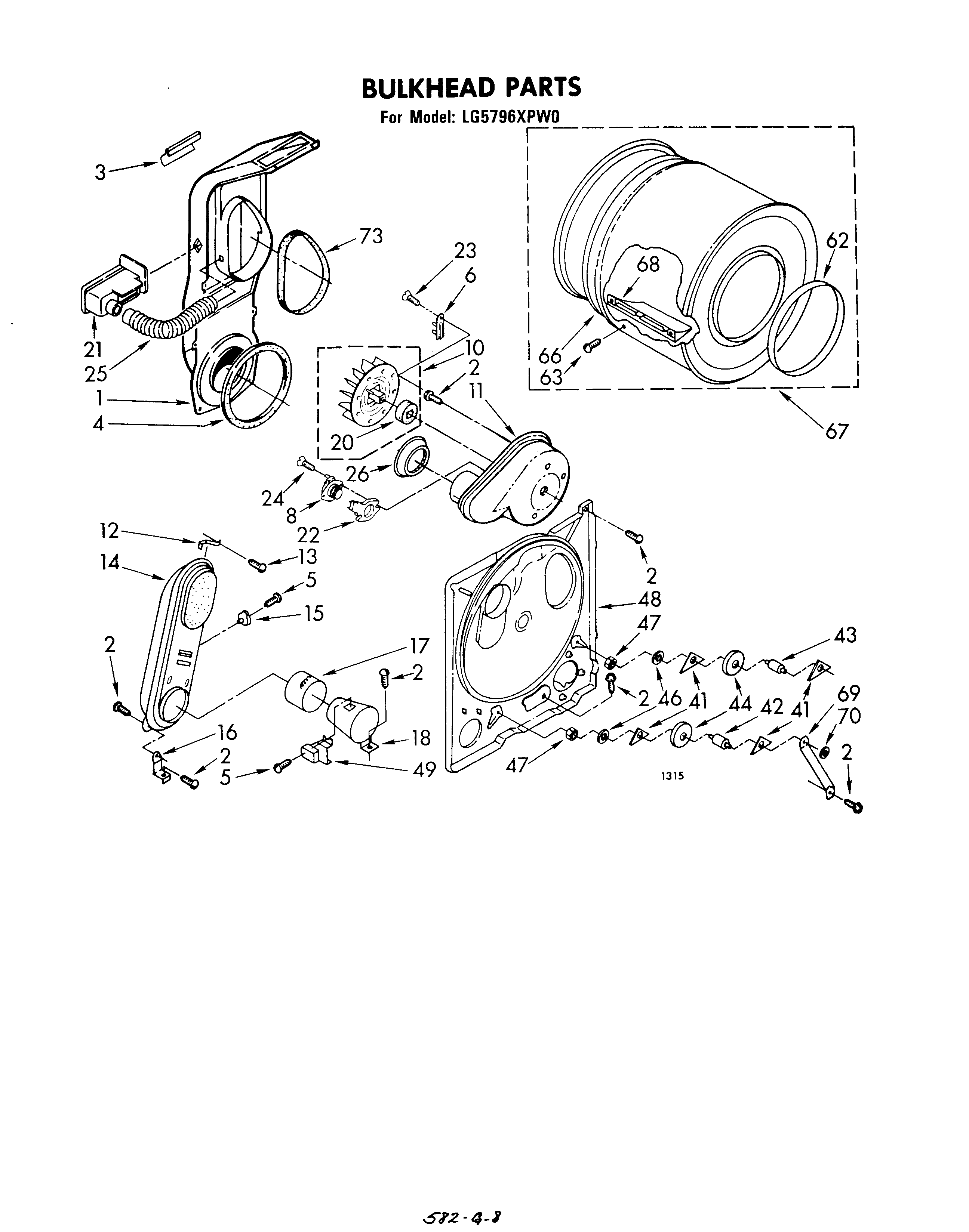

LG5796XPW0 05 – BULKHEAD

Products

Position	Product
1	Lint Chute
2	SCREW
3	686770 Whirlpool Support Bracket
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	WP3390719 Whirlpool Dryer Thermal Fuse
6	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP694674 Whirlpool Cycling Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
15	(Alt.)
15	Thermostat, 205 F (96 C)
15	Thermostat SPST (205)
16	Support, Heater Box (2)
17	279900 Whirlpool Box O/S1
20	Seal, Blower
21	Alert, Lint
22	Heater, Thermostat
23	WP965173 Whirlpool Dishwasher Screw
24	WP488729 Whirlpool Refrigerator Door Screw
25	Hose, Differential
26	W11233063 Whirlpool Shield Assembly
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP358160 Whirlpool Nut
48	Bulkhead
49	WP338906 Whirlpool Dryer Gas Sensor
62	WP3394508 Whirlpool Bearing Ring
63	Screw, 11-16 x 7/8
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	3396775 Whirlpool Drum Assembly
68	WP342847 Whirlpool Drum Baffle
69	Bracket, Support
70	WP90296 Whirlpool Clip
73	SEAL
