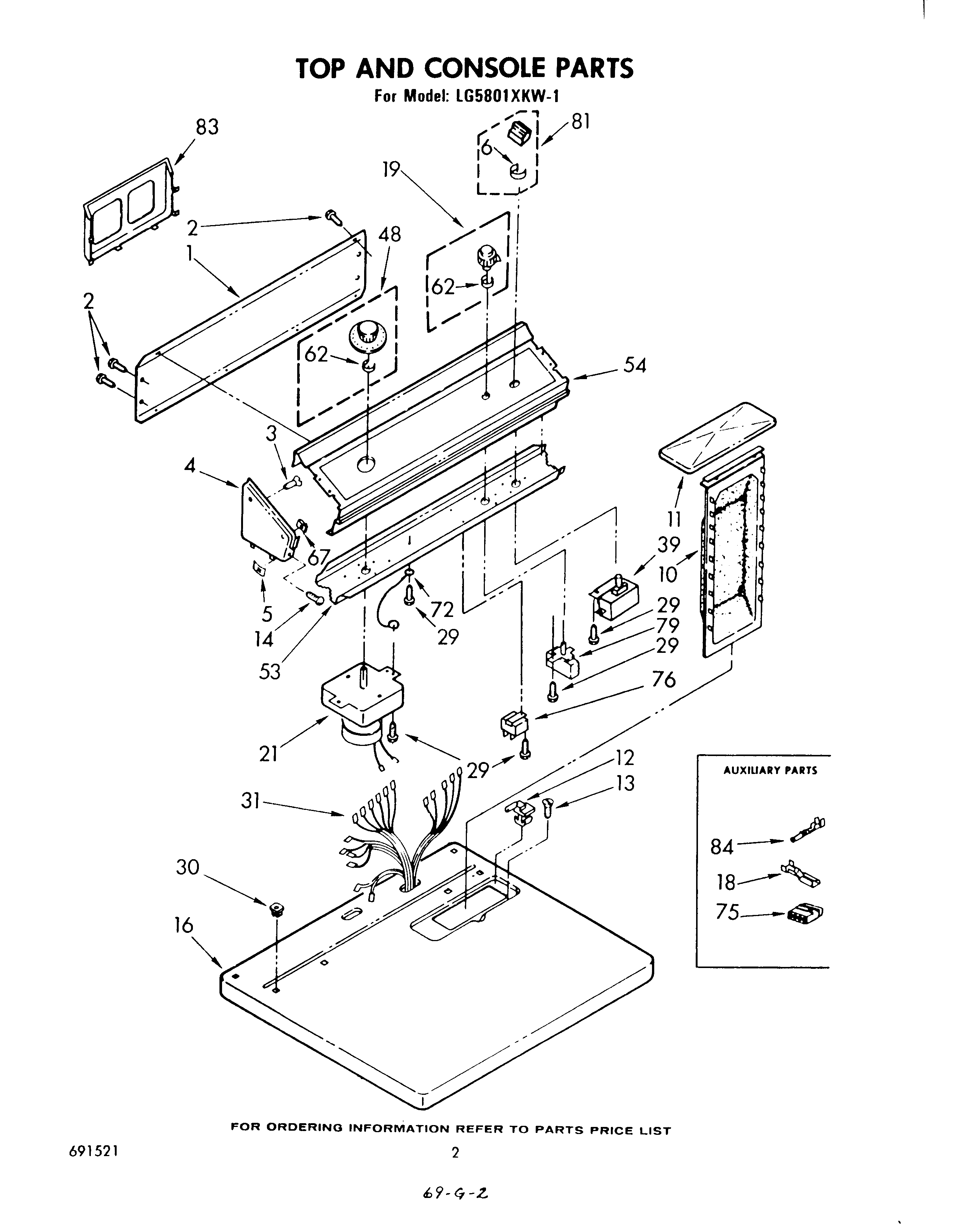

LG5801XKW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Enamel, New Avocado (1 Qt. Uncut)
Golden Harvest (Uncut)
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
Wire, 25` Roll (Red 12 Ga.)
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End (L.H.) (White)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (White)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Golden Harvest)
4End Cap Assembly, L.H. (New Avocado)
4End Cap Assembly, L.H. (New Avocado)
5Stop, Push-In Top
6Clip
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (New Avocado)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 1 (2)
16Top (Almond)
16Top (Golden Harvest)
16Top (New Avocado)
16top (white)
18WP94614 Whirlpool Terminal
19Control Knob Assembly
21Timer Assembly 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39WPL 685067
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
76Buzzer, Mini
79Switch, Rotary
81Button Assembly
83Rack, Literature
84WPL 690724
84Instructions, Wiring
84Instructions,
84350956 Whirlpool Spray Assembly
84350938 Whirlpool Spray Gun
84WPL 691521
84WP596797 Whirlpool Terminal
84WPL 688898
84WPL 799351
84Paint, Spray 13 Oz. (Avocado)
8472109 Whirlpool Dacor Avocado Touch-Up Paint
84Golden Harvest
84350930 Whirlpool White Spray Paint
8472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
84W10851673 Whirlpool Transformer
84Wire, Adapter (4“ Long)
84Wire, Adapter (4-1/2 “ Long)
84Supplement, Installation Instructions
84Leveler (Thinner)
84WP72107 Whirlpool Touchup
8472017 Whirlpool Appliance Touch-Up Paint White
84279320 Whirlpool Dryer Rear Terminal Block Kit
