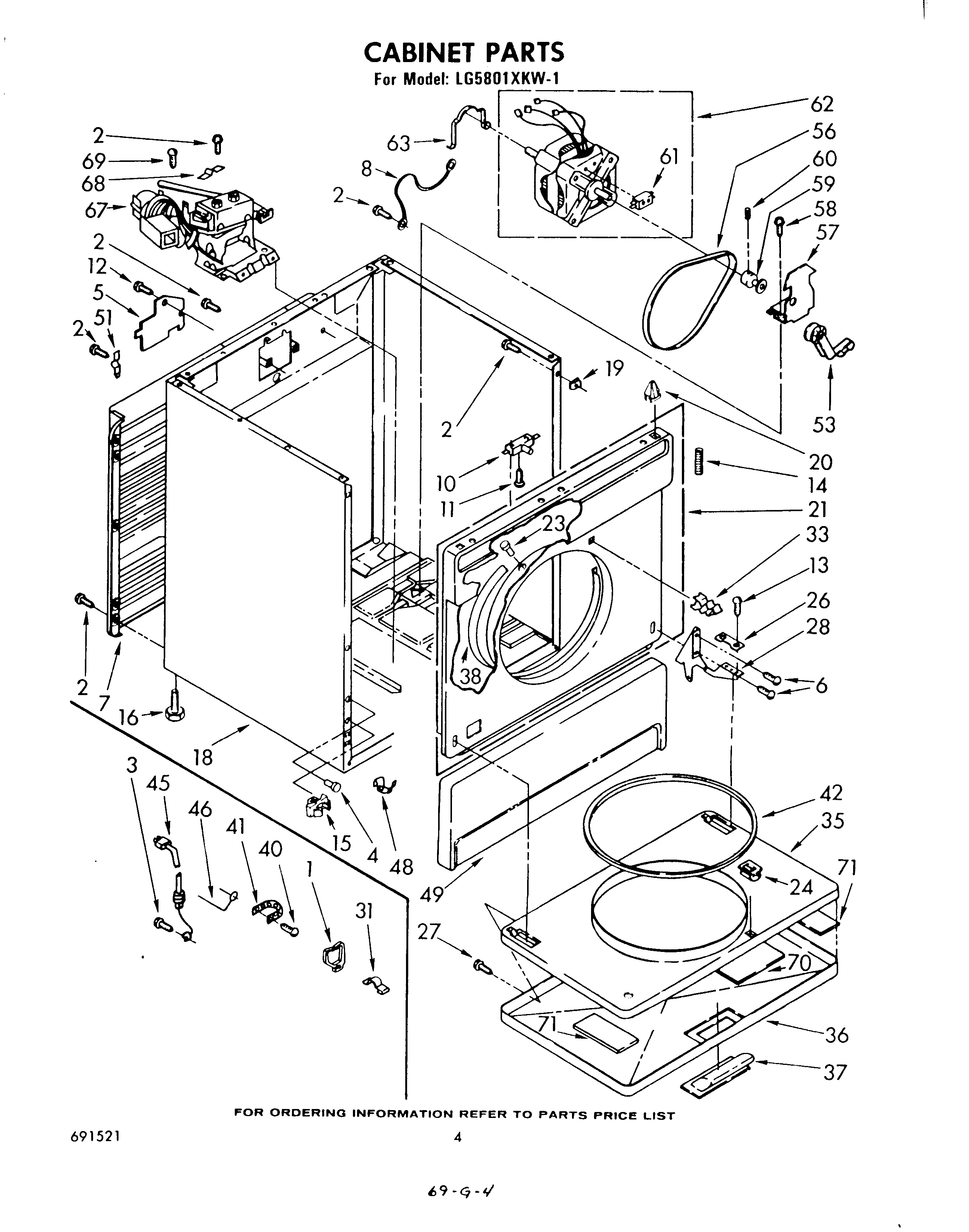

LG5801XKW1 03 – CABINET

Products

Position	Product
1	Clip, Harness (Rear Bulkhead Area)
3	SCREW
4	238614 Whirlpool Bumper Hinge
5	W11736322 Whirlpool Cover Assembly
6	Screw, 10-32 x 1/2
7	Panel, Rear
8	Wire, Ground (Motor)
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
13	WP308685 Whirlpool Microwave Screw
14	Spring, Door (2)
15	Clip, Toe Panel
16	49621 Whirlpool Leveling Feet
18	Cabinet (White)
18	Cabinet (Golden Harvest)
18	Cabinet (Almond)
18	Cabinet (New Avocado)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Upper Front Panel Assembly (White)
21	Upper Front Panel Assembly (Almond)
21	Upper Front Panel Assembly (Golden Harvest)
21	Upper Front Panel Assembly (New Avocado)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
26	W11252547 Whirlpool Clip Assembly
27	Screw
28	Hinge, L.H.
28	Hinge, R.H.
31	8528351 Whirlpool Clip
35	Door, Panel (Golden Harvest)
35	Door, Panel (White)
35	Door, Rear (New Avocado)
35	Door, Panel (Almond)
36	Door, Front (New Avocado)
36	Door, Front (Almond)
36	Door, Front (Golden Harvest)
36	Door, Front (White)
37	WP348721 Whirlpool Handle
37	Handle (Golden Harvest)
37	Handle (Almond)
38	279264 Whirlpool Bearing and Seal Kit
40	Screw, Ground (10-24 x 1)
41	Strap, Ground
42	WP3390733 Whirlpool Door Seal Assembly
45	W11222083 Whirlpool Power Cord
46	WPL 364089
48	WP297092 Whirlpool Clip
49	Panel, Toe (Almond)
49	WPL 689248
49	Panel, Toe (Golden Harvest)
49	Panel, Toe (White)
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	W11233559 Whirlpool Motor Pulley
60	SCREW, SET
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	WPL 688639
67	WPL 688637
68	341029 Whirlpool Clamp
69	WPL 343826
70	WPL 691207
71	WPL 691525
71	WPL 691206
