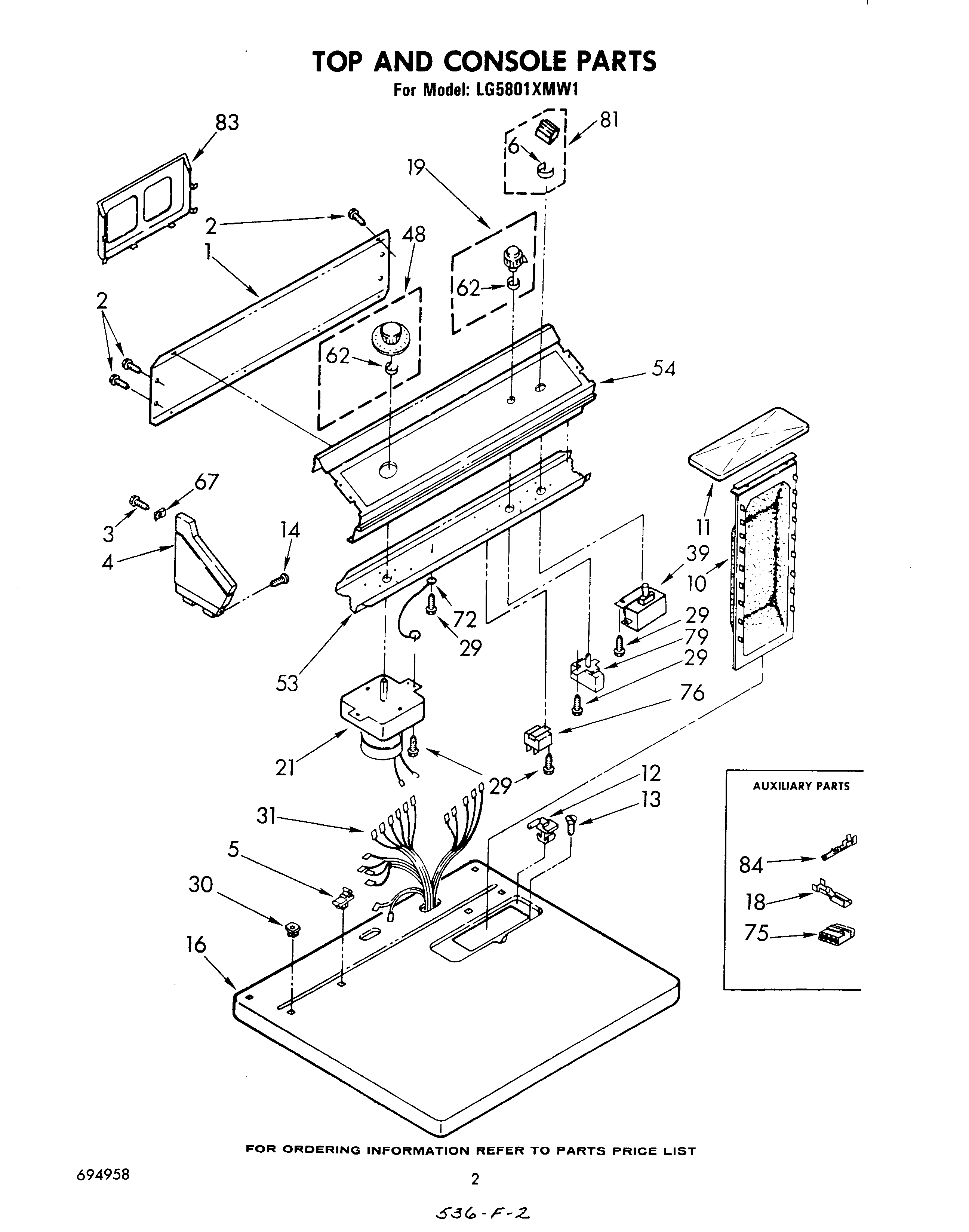

LG5801XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG5801XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG5801XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Golden Harvest (Uncut)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
799344 Whirlpool Refrigerator Paint
Enamel, New Avocado (1 Qt. Uncut)
Almond (Uncut)
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End L.H. (Platinum)
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (Toast)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
4Cap, End L.H. (White)
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Golden Harvest)
4Cap, End L.H. (Toast)
5Stop, Push-In Top
6Clip
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 1 (2)
16Top (Platinum)
16Top (Toast)
16top (white)
16Top (Almond)
16Top (Golden Harvest)
18WP94614 Whirlpool Terminal
19Control Knob Assembly
21Timer Assembly 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Push-To-Start (Alternate)
39WPL 685067
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67Clip (4)
72Wire, Ground
75353424 Whirlpool Connector
75Connector (Door Switch)
76WP694419 Whirlpool Buzzer Adjuster
79Switch, Temperature Selector
81Button Assembly
83Rack, Literature
84Leveler (Thinner)
84WP72107 Whirlpool Touchup
84WPL 694344
8472017 Whirlpool Appliance Touch-Up Paint White
84WPL 694958
84350956 Whirlpool Spray Assembly
84350938 Whirlpool Spray Gun
84WPL 72112
84WP596797 Whirlpool Terminal
8472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
84WPL 799351
84Paint, Spray 13 Oz. (Avocado)
8472109 Whirlpool Dacor Avocado Touch-Up Paint
84Paint, Spray (13 Oz.) (Platinum)
84Toast
84WPL 693849
84Golden Harvest
8472113 Whirlpool Touch-Up Paint
84350930 Whirlpool White Spray Paint
84Us
