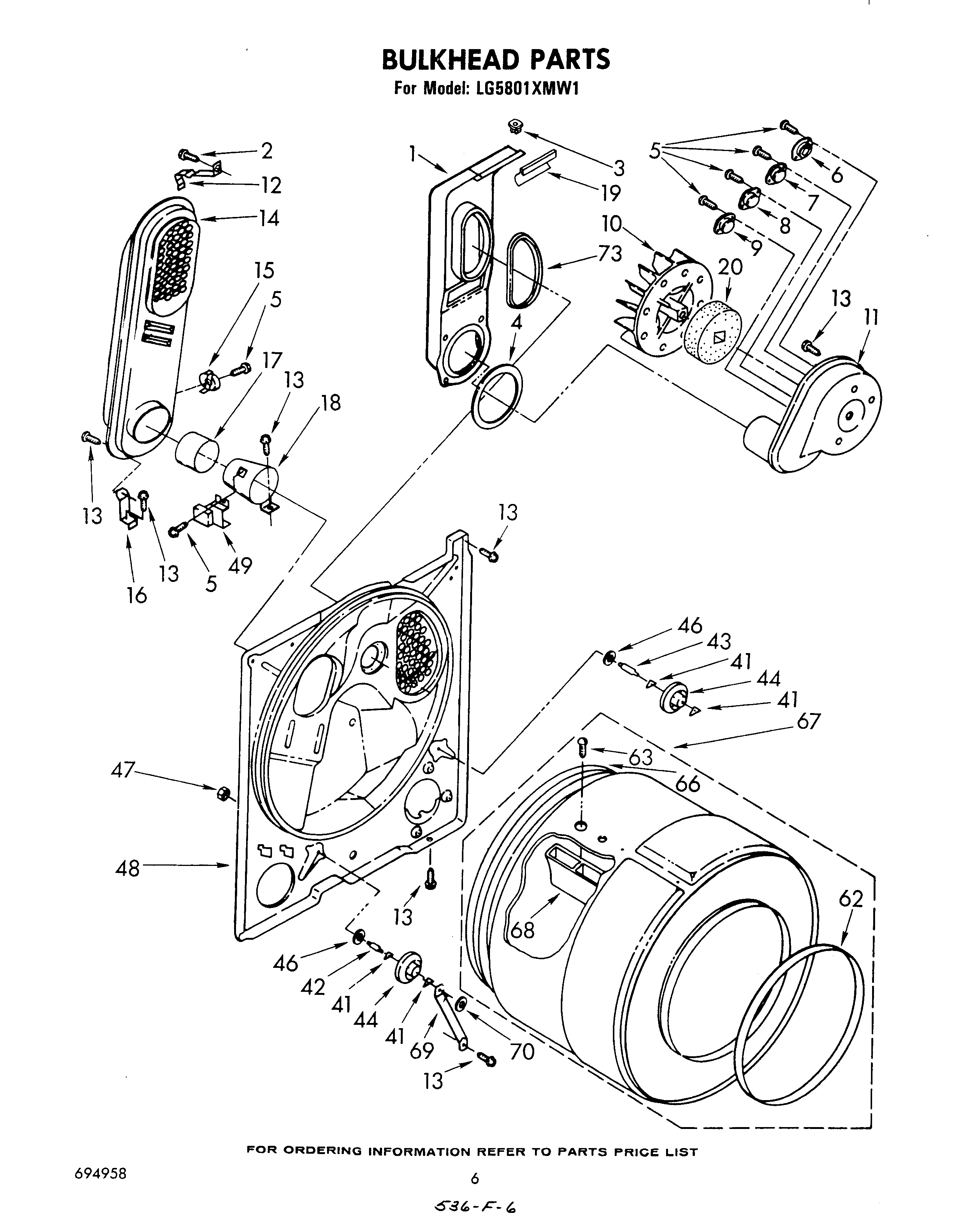

LG5801XMW1 04 – BULKHEAD

LG5801XMW1 04 – BULKHEAD

Written by

in

LG5801XMW1 04 – BULKHEAD

Products

PositionProduct
1279505 Whirlpool Chute
398460 Whirlpool Nut
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6WP3390719 Whirlpool Dryer Thermal Fuse
7WP694674 Whirlpool Cycling Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
15Thermostat, 205 F (96 C)
15(Alt.)
15Thermostat SPST (205)
16Support, Heater Box (2)
17279900 Whirlpool Box O/S1
19686770 Whirlpool Support Bracket
20Seal, Blower
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
49WP338906 Whirlpool Dryer Gas Sensor
62WP3394509 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67697760 Whirlpool Drum Assembly Primary OS2
68WP342847 Whirlpool Drum Baffle
69Bracket, Support
70WP90296 Whirlpool Clip
73SEAL
