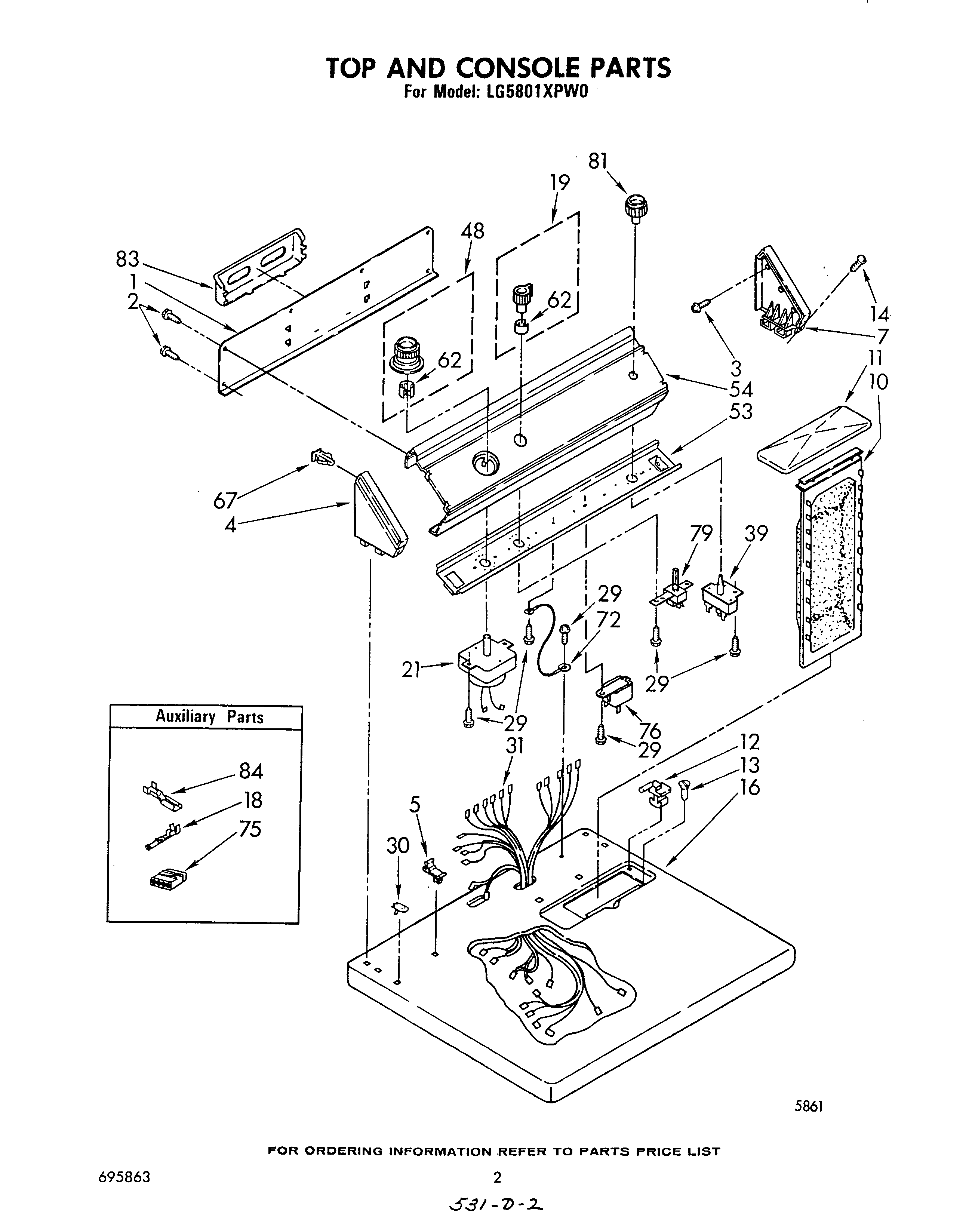

LG5801XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG5801XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG5801XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Almond (Uncut)
Golden Harvest (Uncut)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
799344 Whirlpool Refrigerator Paint
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
7WPL 63795
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (Platinum)
16Top (White)
16Top (Toast)
16Top (Golden Harvest)
16Top (Almond)
18WP94614 Whirlpool Terminal
19Knob, Water Level
21Timer Assembly 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Push-To-Start (Alternate)
39WPL 685067
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
76WP694419 Whirlpool Buzzer Adjuster
79WPL 695091
81Knob, Push To Start
83Rack, Literature
84Toast
84WPL 695863
84Use & Care Guide
84350938 Whirlpool Spray Gun
84350956 Whirlpool Spray Assembly
8472017 Whirlpool Appliance Touch-Up Paint White
84WP72107 Whirlpool Touchup
84WPL 72112
84WPL 693849
84Leveler (Thinner)
84Paint, Spray (13 Oz.) (Platinum)
84WP596797 Whirlpool Terminal
84WPL 799351
84350930 Whirlpool White Spray Paint
8472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
8472113 Whirlpool Touch-Up Paint
84Golden Harvest
84WPL 696233
