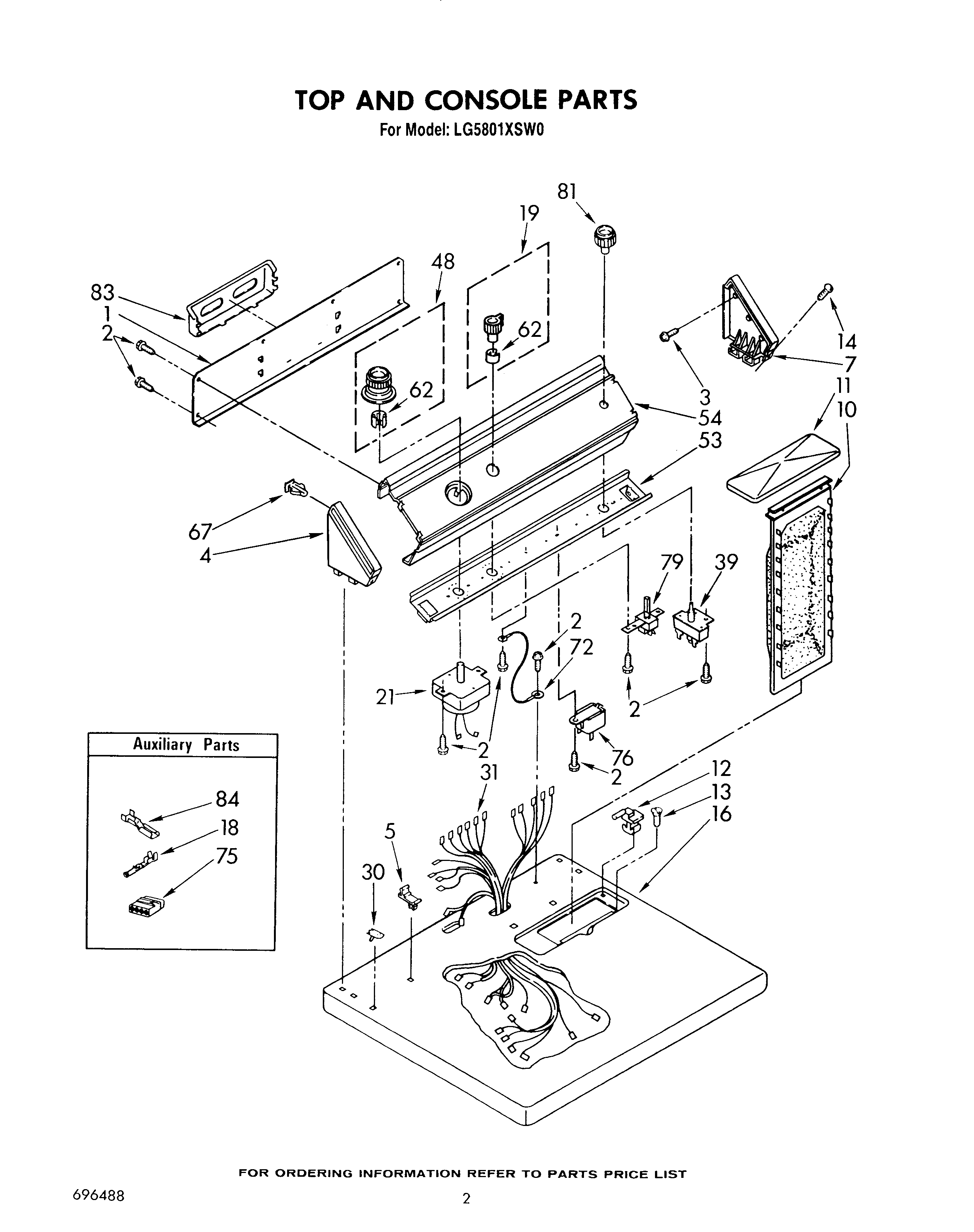

LG5801XSW0 02 – TOP AND CONSOLE, LIT/OPTIONAL

LG5801XSW0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LG5801XSW0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT677971
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
WPL LIT677967
Dryer
799344 Whirlpool Refrigerator Paint
WPL LIT696233
WP72107 Whirlpool Touchup
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
WPL LIT696488
350938 Whirlpool Spray Gun
Leveler (Thinner)
WPL LIT696217
Almond (Uncut)
Guide, Dryer
Washer (Belt Drive)
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
7WPL 63795
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Toast)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (White)
16Top (Almond)
16Top (Golden Harvest)
16Top (Toast)
16Top (Platinum)
18WP94614 Whirlpool Terminal
19Control Knob, Temperature
21Timer Assembly, 60 Hz.
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Push-To-Start
39(Alt.)
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
76WP694419 Whirlpool Buzzer Adjuster
79Switch, Temperature (Variable)
81Knob, Push-To-Start
83Rack, Literature
84WP596797 Whirlpool Terminal
