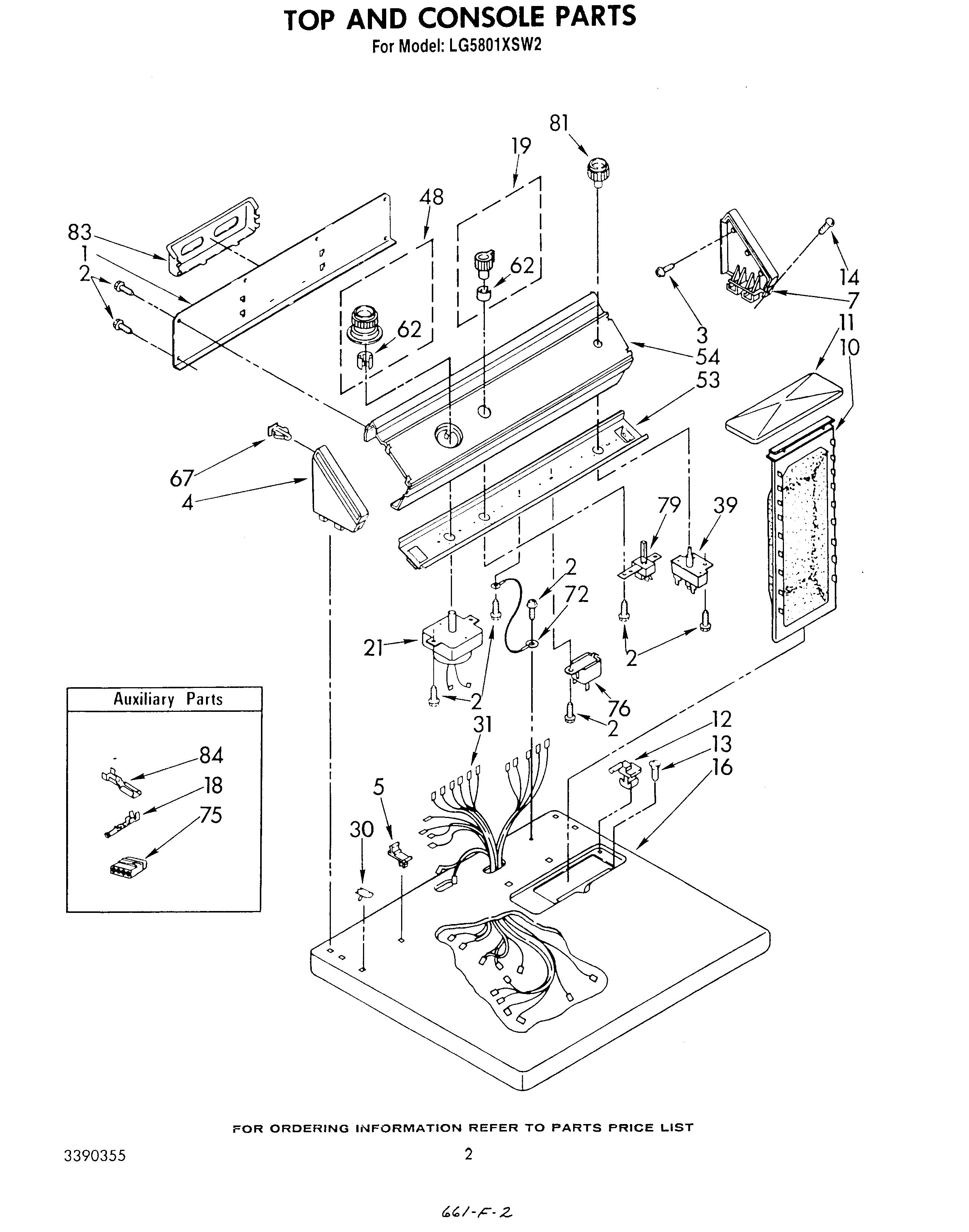

LG5801XSW2 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

LG5801XSW2 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Written by

in

LG5801XSW2 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT3390211
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
WPL LIT3390355
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT677971
WPL LIT677967
Washer (Belt Drive)
Guide, Dryer
WPL LIT3389442
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Almond (Uncut)
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
Leveler (Thinner)
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
Dryer
350930 Whirlpool White Spray Paint
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
7WPL 63795
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Golden Harvest)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (Golden Harvest)
16Top (White)
16Top (Toast)
16Top (Platinum)
16Top (Almond)
18WP94614 Whirlpool Terminal
19Control Knob, Temperature
21Timer Assembly, 60 Hz.
30Nut, Push-In (2)
31Harness, Wiring
39Relay, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75353424 Whirlpool Connector
75Connector (Door Switch)
76WP694419 Whirlpool Buzzer Adjuster
79Switch, Temperature (Variable)
81Knob, Push-To-Start
83Rack, Literature
84WP596797 Whirlpool Terminal
