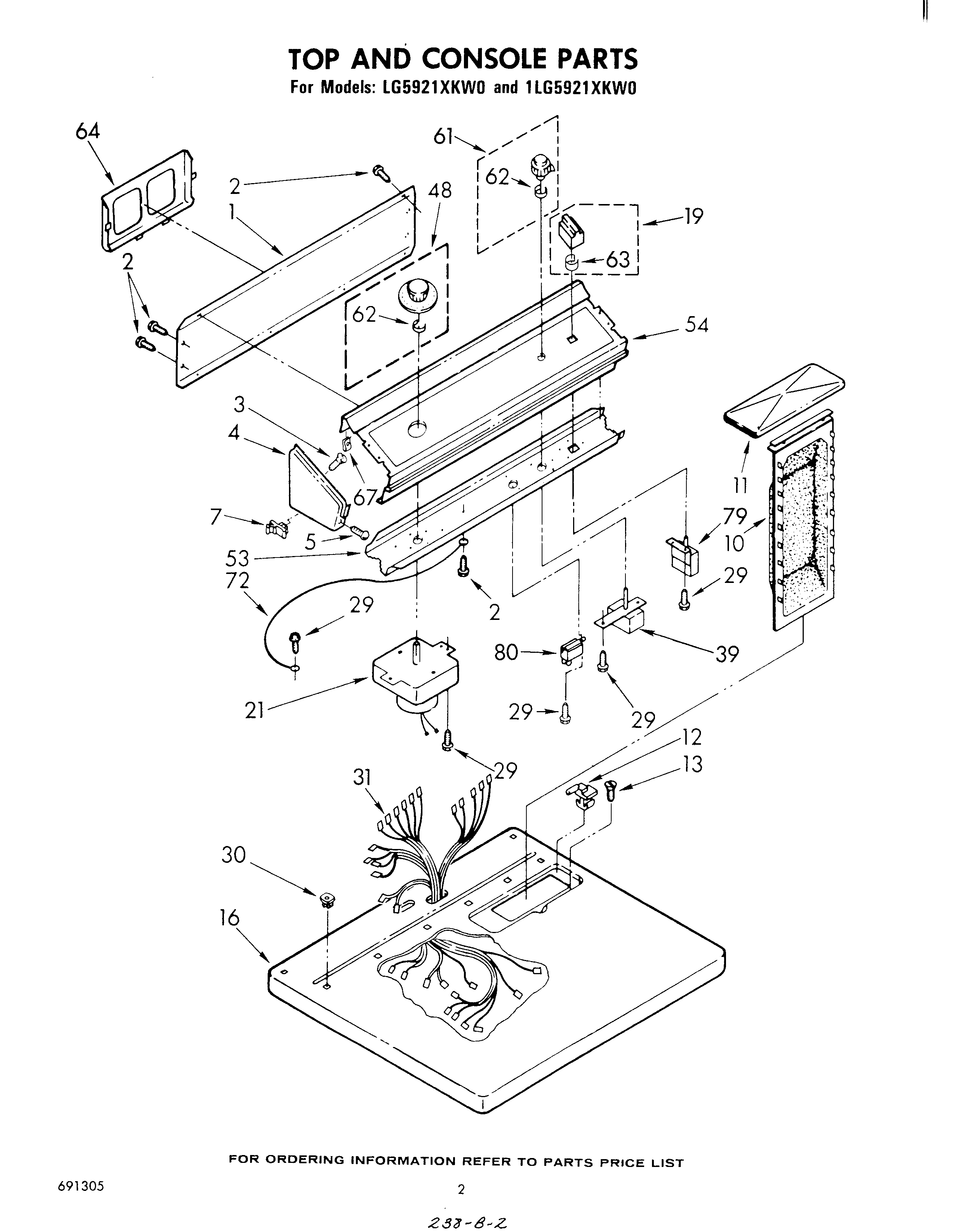

LG5921XKW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
Wire, 25` Roll (Red 12 Ga.)
Golden Harvest (Uncut)
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Golden Harvest)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End L.H. (White)
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
5Screw, 8-18 x 1 (2)
7Stop, Push-In Top
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Golden Harvest)
16top (white)
16Top (Almond)
19Button Assembly
21Timer Assembly 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Rotary
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
61Control Knob Assembly
62WP688805 Whirlpool Spring Clip
63Clip
64Rack, Literature
67WP689559 Whirlpool Nut
79Wire, Ground
79Switch, Push-To-Start (Alternate)
80WPL 690723
80Buzzer, Mini
80Instructions, Wiring
80Instructions,
80WPL 691305
80WPL 688898
80Supplement, Installation Instructions
80350956 Whirlpool Spray Assembly
8072017 Whirlpool Appliance Touch-Up Paint White
80WP72107 Whirlpool Touchup
80Leveler (Thinner)
8072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
80Golden Harvest
80279320 Whirlpool Dryer Rear Terminal Block Kit
80WPL 799351
80350930 Whirlpool White Spray Paint
80W10851673 Whirlpool Transformer
80Wire, Adapter (4“ Long)
80Wire, Adapter (4-1/2 “ Long)
80350938 Whirlpool Spray Gun
