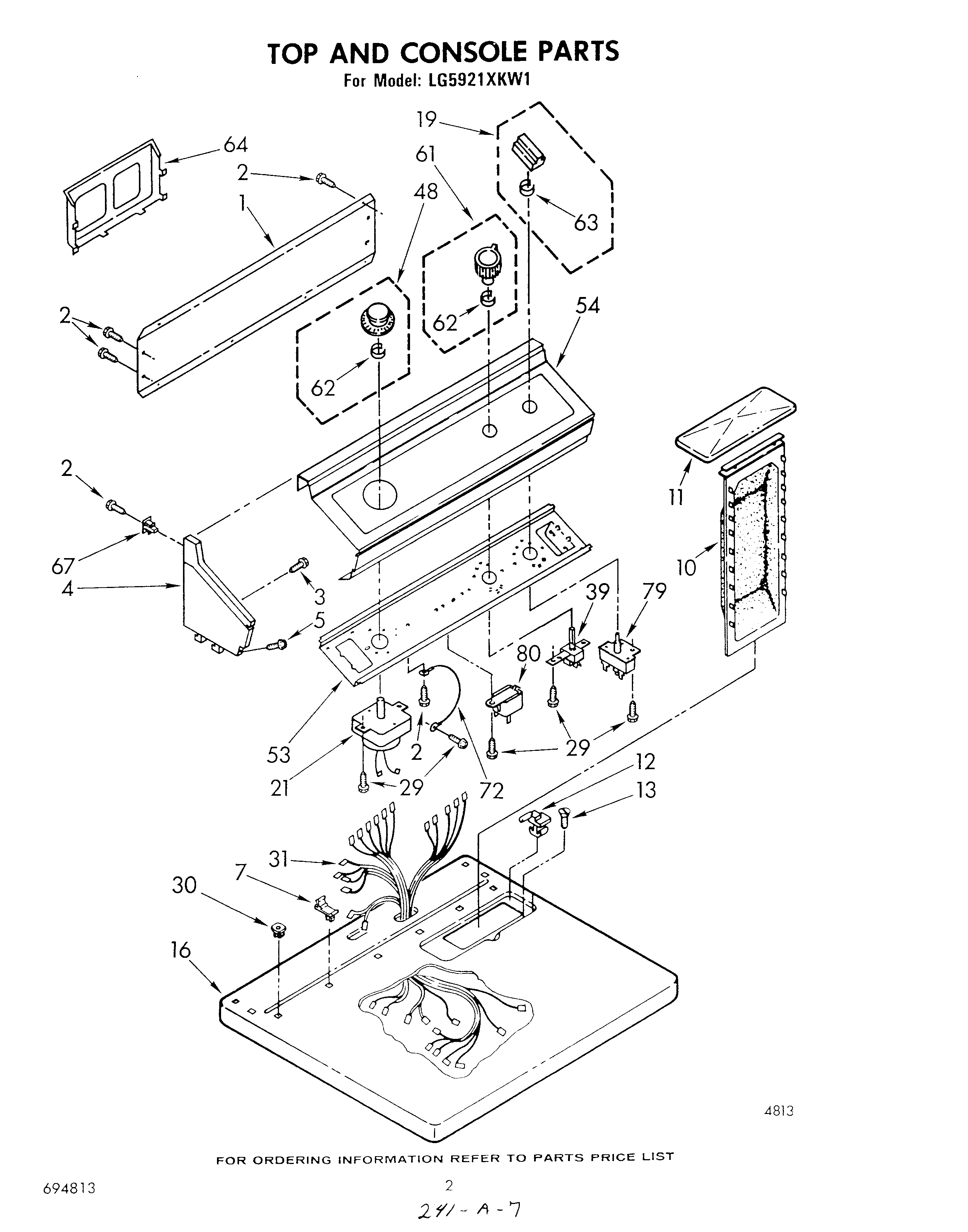

LG5921XKW1 02 – TOP AND CONSOLE , LIT/OPTIONAL

Products

Position	Product
	Almond (Uncut)
	Golden Harvest (Uncut)
	799344 Whirlpool Refrigerator Paint
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WPL 355326
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (White)
4	Cap, End L.H. (Golden Harvest)
4	Cap, End L.H. (Almond Cap, End R.H.)
5	Screw, 8-18 x 1 (2)
7	Stop, Push-In Top
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (Golden Harvest)
16	Top (Almond)
16	top (white)
19	Button Assembly
21	Timer Assembly 60 Hz.
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
31	Harness, Wiring
39	Switch, Temperature Selector
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
61	Control Knob Assembly
62	WP688805 Whirlpool Spring Clip
63	Clip
64	Rack, Literature
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Push-To-Start (Alternate)
79	Switch, Push-To-Start
79	WPL 685067
80	WPL 694344
80	Use & Care Guide
80	WPL 693849
80	350938 Whirlpool Spray Gun
80	WP694419 Whirlpool Buzzer Adjuster
80	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
80	WPL 799351
80	350930 Whirlpool White Spray Paint
80	Leveler (Thinner)
80	WP72107 Whirlpool Touchup
80	72017 Whirlpool Appliance Touch-Up Paint White
80	350956 Whirlpool Spray Assembly
80	Golden Harvest
80	List, Service Parts
