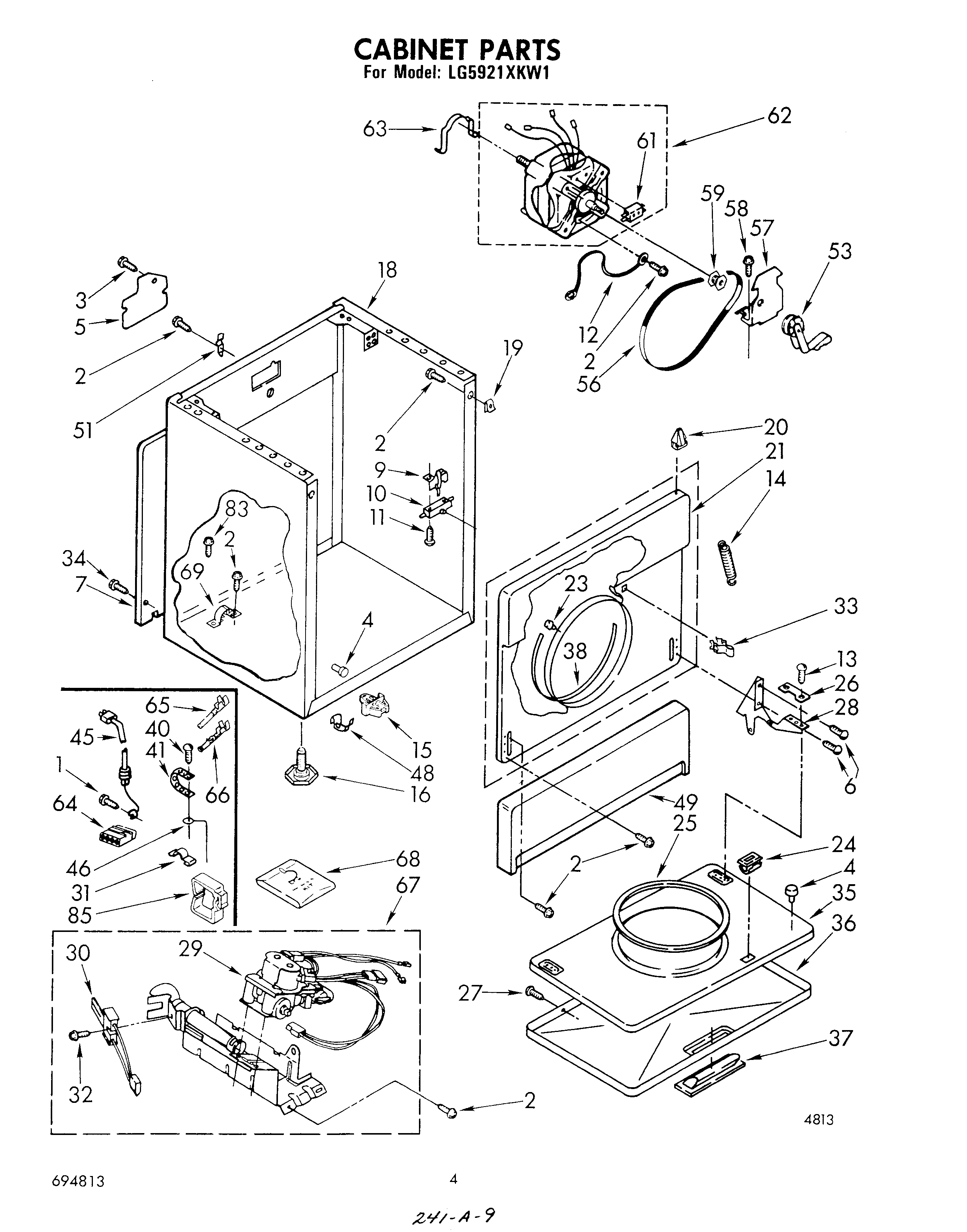

LG5921XKW1 03 – CABINET

LG5921XKW1 03 – CABINET

Written by

in

LG5921XKW1 03 – CABINET

Products

Position	Product
2	SCREW
3	WP693995 Whirlpool Screw
4	238614 Whirlpool Bumper Hinge
5	W11736322 Whirlpool Cover Assembly
6	Screw, 10-32 x 1/2
7	Panel, Rear
9	WP691581 Whirlpool Actuator
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	Wire, Ground (Motor)
13	WP308685 Whirlpool Microwave Screw
14	Spring, Door (2)
15	Clip, Toe Panel
16	49621 Whirlpool Leveling Feet
18	Cabinet (Almond)
18	Cabinet (White)
18	Cabinet (Golden Harvest)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (Almond)
21	Front Panel Assembly (White)
21	Front Panel Assembly (New Gold)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	WP3390733 Whirlpool Door Seal Assembly
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	Hinge, L.H.
28	Hinge, R.H.
29	279923 Whirlpool Gas Valve
30	279311 Whirlpool Dryer Flat Igniter with Bracket
31	8528351 Whirlpool Clip
32	WPW10366705 Whirlpool Screw
34	WP489069 Whirlpool Compactor Screw
35	Door, Panel (Almond)
35	Door, Panel (White)
35	Door, Panel (Golden Harvest)
36	Door, Front (Golden Harvest)
36	Door, Front (Almond)
36	Door, Front (White)
37	WP348721 Whirlpool Handle
37	Handle (Almond)
37	Handle (Golden Harvest)
38	279264 Whirlpool Bearing and Seal Kit
40	Screw, Ground (10-24 x 1)
41	Strap, Ground
45	W11222083 Whirlpool Power Cord
46	WPL 364089
48	WP297092 Whirlpool Clip
49	Panel, Toe (Golden Harvest)
49	Panel, Toe (Almond)
49	Panel, Toe (White)
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
64	353424 Whirlpool Connector
64	Connector (Door Switch)
65	WP596797 Whirlpool Terminal
66	WP94614 Whirlpool Terminal
67	Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
68	49572A Whirlpool Dryer Propane Gas Conversion Kit
68	Kit, Conversion Type 1 To Type 3 (MFD)
69	341029 Whirlpool Clamp
83	WPL 343826
85	Clip, Harness (Rear Bulkhead Area)
