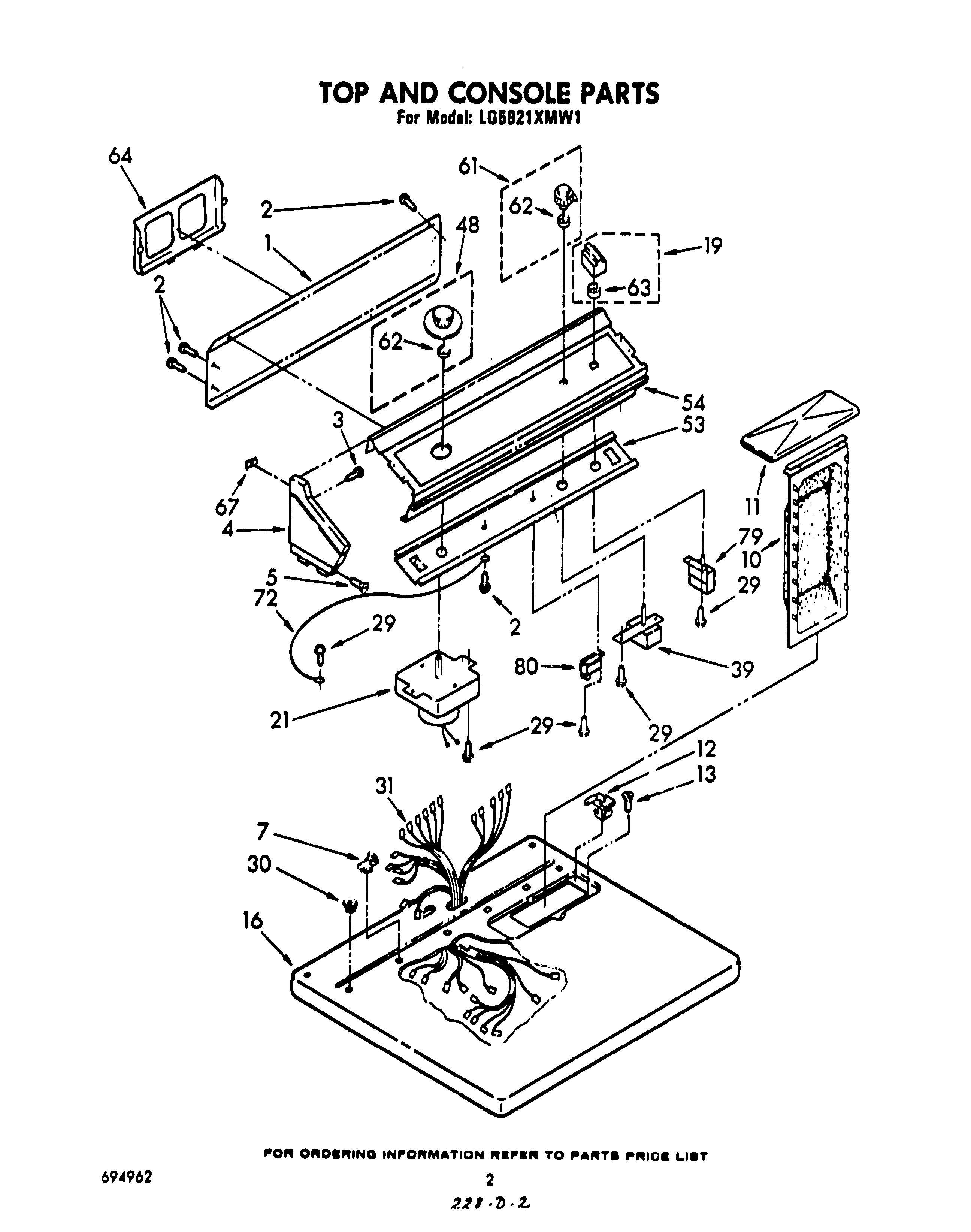

LG5921XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG5921XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG5921XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Golden Harvest (Uncut)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End (L.H.) (Toast)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (White)
4Cap, End L.H. (Golden Harvest)
4Cap, End L.H. (Platinum)
4Cap, End L.H. (Toast)
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
4Cap, End L.H. (Almond Cap, End R.H.)
5Screw, 8-18 x 1 (2)
7Stop, Push-In Top
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16top (white)
16Top (Platinum)
16Top (Toast)
16Top (Golden Harvest)
16Top (Almond)
19Button Assembly
21Timer Assembly 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Rotary
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
61Control Knob Assembly
62WP688805 Whirlpool Spring Clip
63Clip
64Rack, Literature
67Nut, Push-In (4)
72Wire, Ground
79Switch, Push-To-Start
79WPL 685067
79Switch, Push-To-Start (Alternate)
80350956 Whirlpool Spray Assembly
80350930 Whirlpool White Spray Paint
80350938 Whirlpool Spray Gun
80WPL 694962
80Use & Care Guide
80WPL 694344
8072017 Whirlpool Appliance Touch-Up Paint White
80WP72107 Whirlpool Touchup
80WPL 72112
80Paint, Spray (13 Oz.) (Platinum)
80Toast
80WPL 693849
80WP694419 Whirlpool Buzzer Adjuster
80Golden Harvest
8072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
80WPL 799351
80Leveler (Thinner)
8072113 Whirlpool Touch-Up Paint
