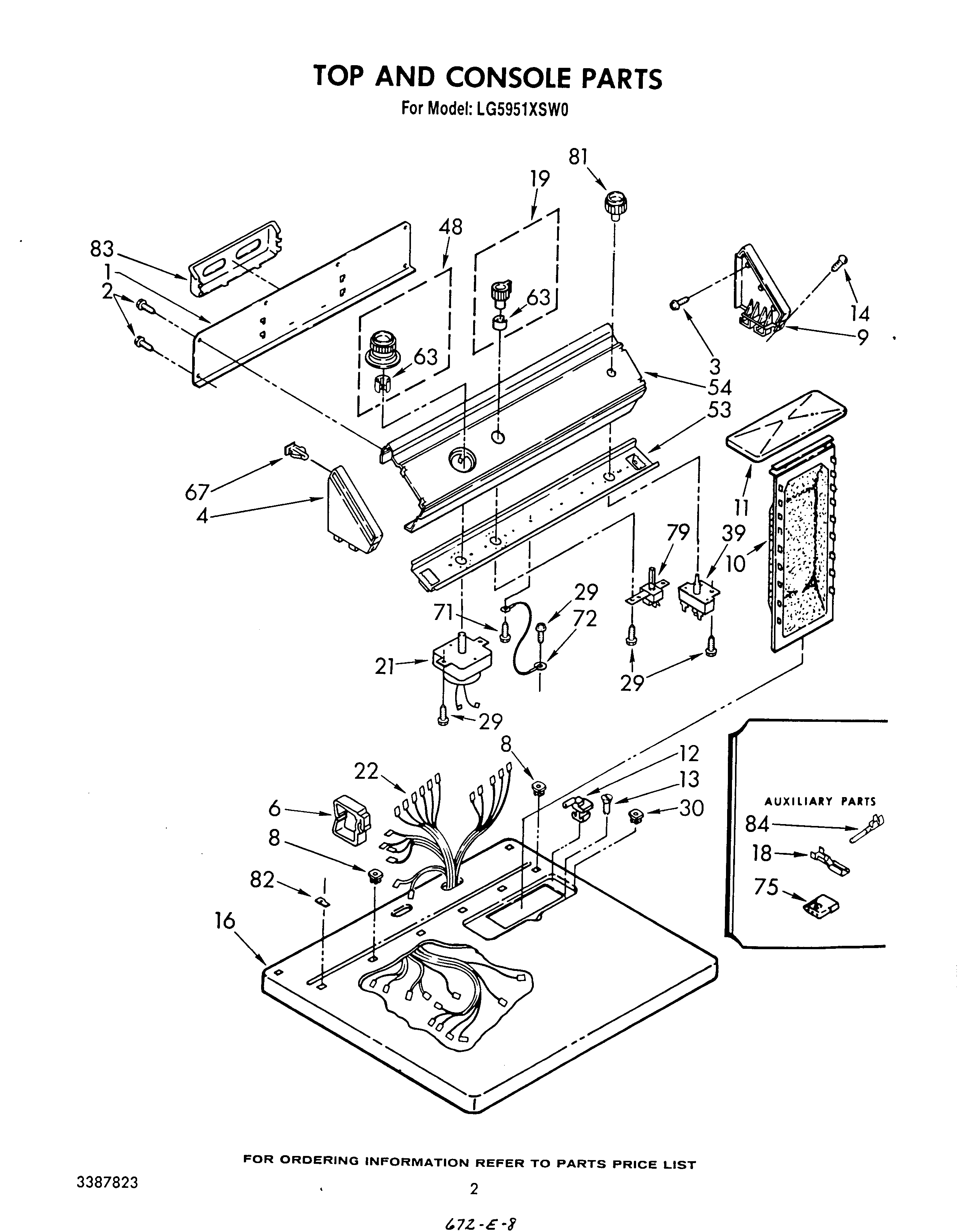

LG5951XSW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
Wire, 25` Roll (Red 12 Ga.)
Dryer
WPL LIT677967
WPL LIT677971
Washer (Belt Drive)
WPL 010875
1Panel, Rear
3WPL 355326
4Cap, End (L.H.)
6Clip, Harness (Rear Bulkhead Area)
8Nut, Push-In (2)
9WPL 63795
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (Platinum)
16Top (Almond)
16Top (White)
16Top (Toast)
16Top (Golden Harvest)
18WP94614 Whirlpool Terminal
19Control Knob, Temperature
21Timer Assembly, 60 Hz.
22Harness, Wiring
29WP3390631 Whirlpool Screw
3098460 Whirlpool Nut
39Switch, Push-To-Start
39(Alt.)
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
63WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
71SCREW
72Wire, Ground
75353424 Whirlpool Connector
75Connector (Door Switch)
79Switch, Temperature Selector
81Knob, Push-To-Start
82Stop, Push-In Top
83Rack, Literature
84Toast
84Leveler (Thinner)
84799344 Whirlpool Refrigerator Paint
8472017 Whirlpool Appliance Touch-Up Paint White
84350956 Whirlpool Spray Assembly
84WPL LIT697389
84WPL LIT697391
84WPL LIT697398
84WPL LIT3387078
84350938 Whirlpool Spray Gun
84WP72107 Whirlpool Touchup
84Almond (Uncut)
84WP596797 Whirlpool Terminal
84WPL 261880
84WPL 72112
84Platinum (Uncut)
84Enamal, Toast (1 Qt. Uncut)
84Paint, Spray (13 Oz.) (Platinum)
84Golden Harvest (Uncut)
8472113 Whirlpool Touch-Up Paint
8472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
84350930 Whirlpool White Spray Paint
84WPL LIT3387823
