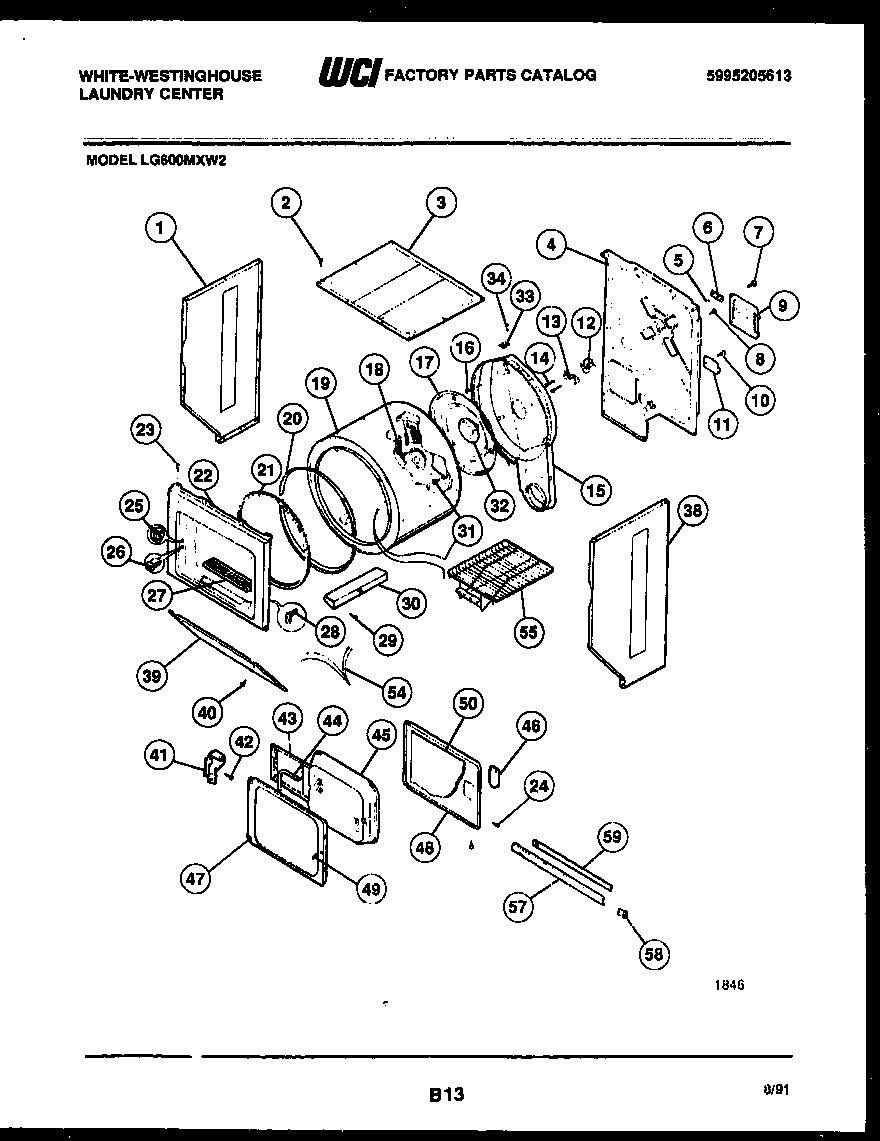

LG600MXW2 02 – CABINET AND COMPONENT PARTS

LG600MXW2 02 – CABINET AND COMPONENT PARTS

Written by

in

LG600MXW2 02 – CABINET AND COMPONENT PARTS

Products

PositionProduct
*27563WCI 5303209889
1PANEL – SIDE – WHITE
3131883301 Frigidaire Panel
4PANEL – REAR
55303281019 Frigidaire Ball Assembly
65303281020 Frigidaire Ball Clip
9PANEL-MOTOR ACCESS
11COVER-TERM BLOCK
12131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13131724301 Frigidaire Dryer Drum Bearing Bracket
14131205400 Frigidaire Screw
173204254 Frigidaire Baffle Assembly
18SCREW (3) (PART OF REAR BEARING KIT.)
19134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
20(RING) BEARING
21WCI 3204260
22WCI 3205629
23WCI 08011280
24SCREW (8)
25131658800 Frigidaire Dryer Door Catch Repair Kit
26SWITCH-DOOR
27WCI 3204263
28CLIP GUIDE (4)
29131382300 Frigidaire Screw-VANE
30137552900 Frigidaire Vane
31WCI 5303207393
325303931781 Frigidaire Shaft
33WCI 5303207396
34131168200 Frigidaire Dryer Screw
38PANEL – SIDE – WHITE
39PANEL-ACCESS, WHITE
40HEATER HOUSING & DUCT
41HINGE-UPPER
41AHINGE-LOWER
42A131302800 Frigidaire Drum Vane Screw
43WCI 3204278
46WCI 3204281
47WCI 3204283
48WCI 3204284
495303207102 Frigidaire Door Strike
50134535300 Frigidaire Insulator
54WCI 3205631
55HOUSING – LINT FILTER – WHITE
57WCI 5303270935
58WCI 5303208614
59ADHESIVE STRIP
