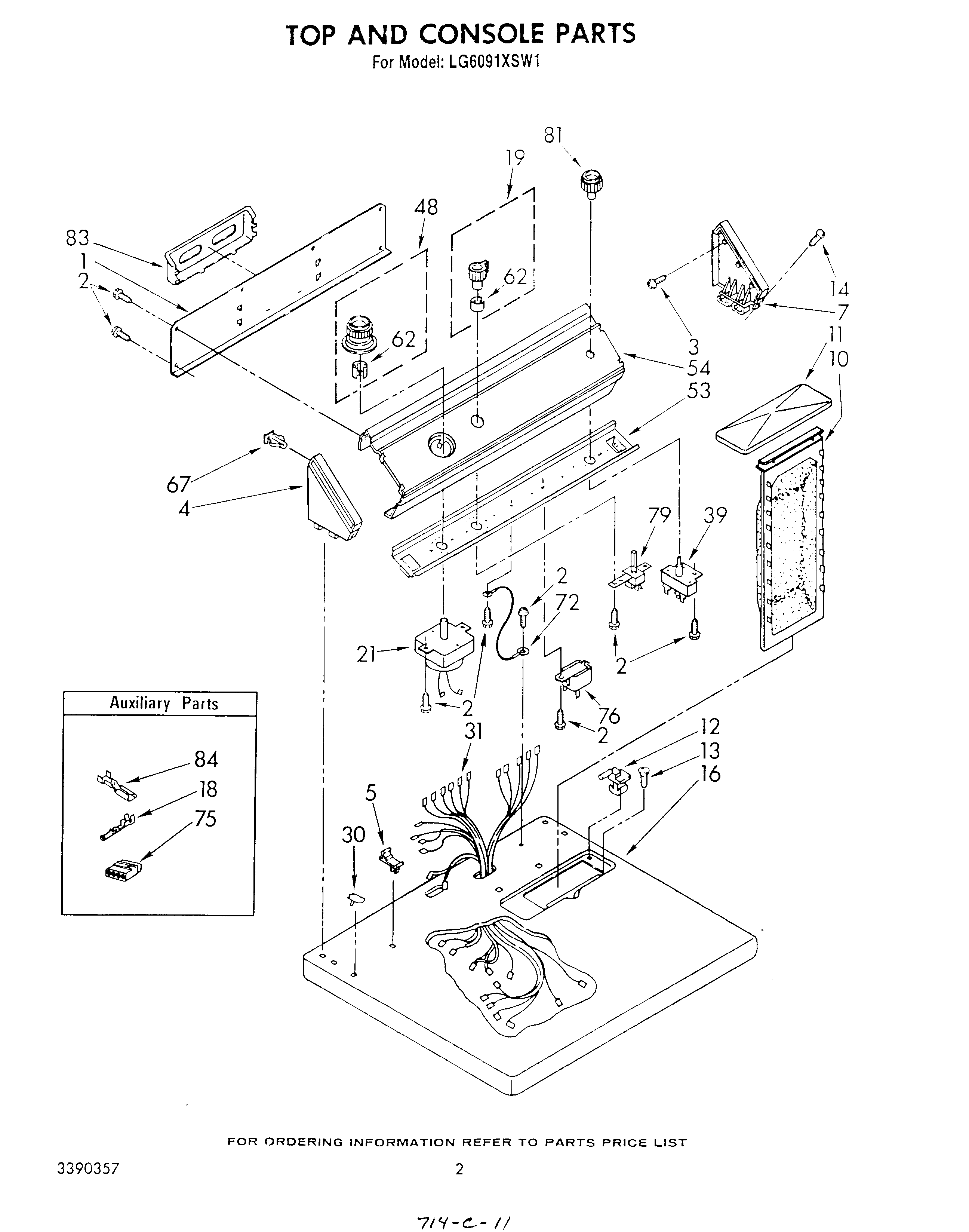

LG6091XSW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG6091XSW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG6091XSW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
Washer (Belt Drive)
WPL 72112
Paint, Spray (13 Oz.) (Platinum)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Platinum (Uncut)
72113 Whirlpool Touch-Up Paint
Enamal, Toast (1 Qt. Uncut)
Toast
Golden Harvest
Golden Harvest (Uncut)
WPL LIT677971
Dryer
Guide, Dryer
WPL LIT3390357
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL LIT3390212
WP72107 Whirlpool Touchup
WPL LIT677967
Leveler (Thinner)
Almond (Uncut)
WPL LIT3389442
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
7WPL 63795
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Toast)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (Almond)
16Top (Golden Harvest)
16Top (Toast)
16Top (White)
16Top (Platinum)
18WP94614 Whirlpool Terminal
19Knob, Temperature Selector
21Timer Assembly, 60 Hz.
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Push-To-Start
39(Alt.)
39Switch, Push-To-Start (Alternate)
48Timer Knob & Dial
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
76WP694419 Whirlpool Buzzer Adjuster
79Switch, Temperature (Variable)
81Knob, Push To Start
83Rack, Literature
84WP596797 Whirlpool Terminal
