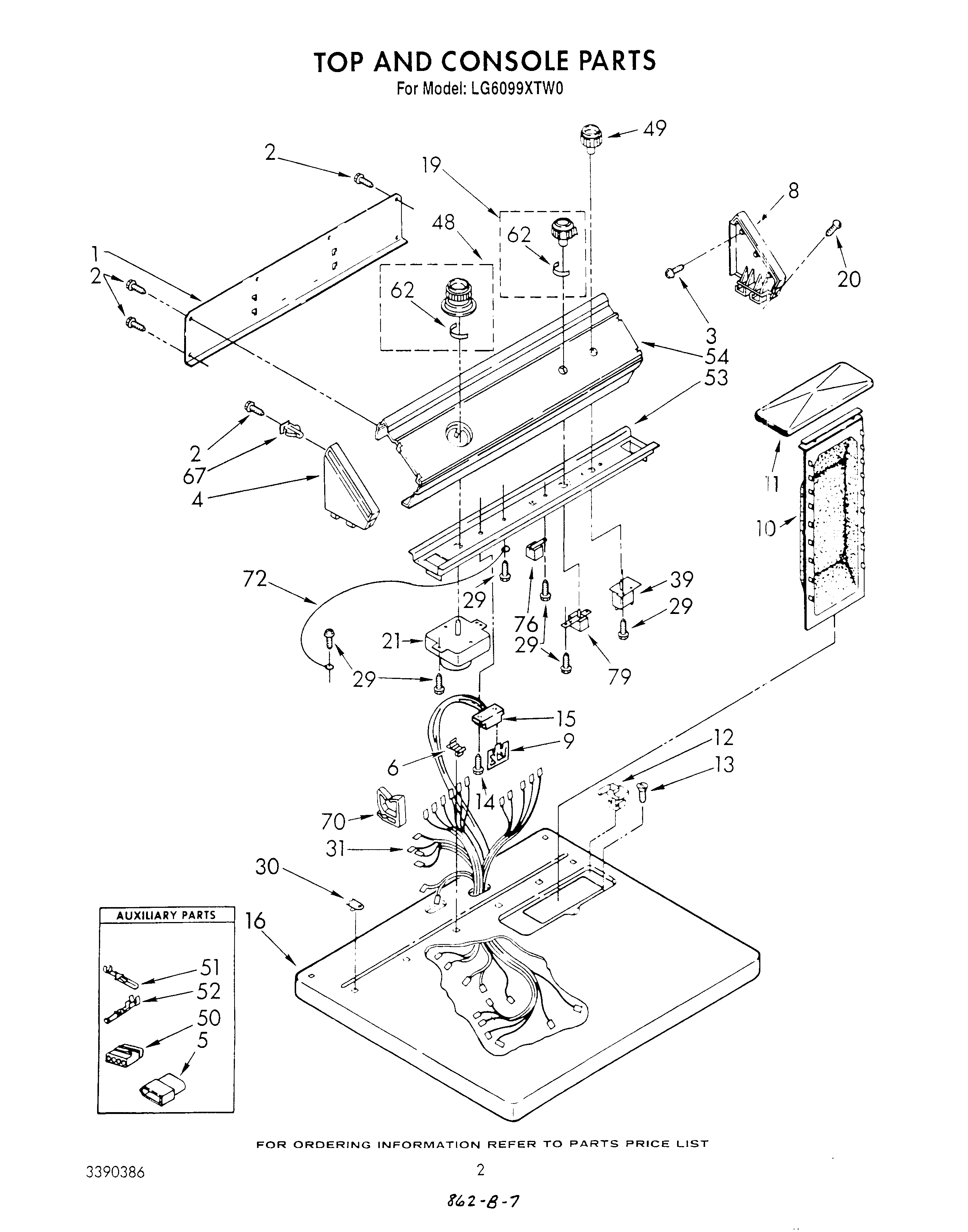

LG6099XTG0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG6099XTG0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG6099XTG0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT3391355
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
Guide, Dryer
WPL LIT3390386
WPL LIT3389894
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72017 Whirlpool Appliance Touch-Up Paint White
Leveler (Thinner)
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
WP72107 Whirlpool Touchup
350930 Whirlpool White Spray Paint
350938 Whirlpool Spray Gun
1Panel, Rear
2WP489069 Whirlpool Compactor Screw
3WPL 355326
4Cap, End (L.H.)
5353424 Whirlpool Connector
6Stop, Push-In Top
8WPL 63795
9Control, Electronic
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Golden Harvest)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14SCREW
15Connector
16Top (White)
16Top (Golden Harvest)
16Top (Almond)
16Top (Toast)
16Top (Platinum)
19Knob, Temperature Selector
20WPL 64211
21Timer, 60Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Relay, Push-To-Start
48Timer Knob & Dial
49Knob, Push To Start
50Connector (Door Switch)
51WP596797 Whirlpool Terminal
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
70Clip, Harness (Rear Bulkhead Area)
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79Switch, Temperature (Variable)
