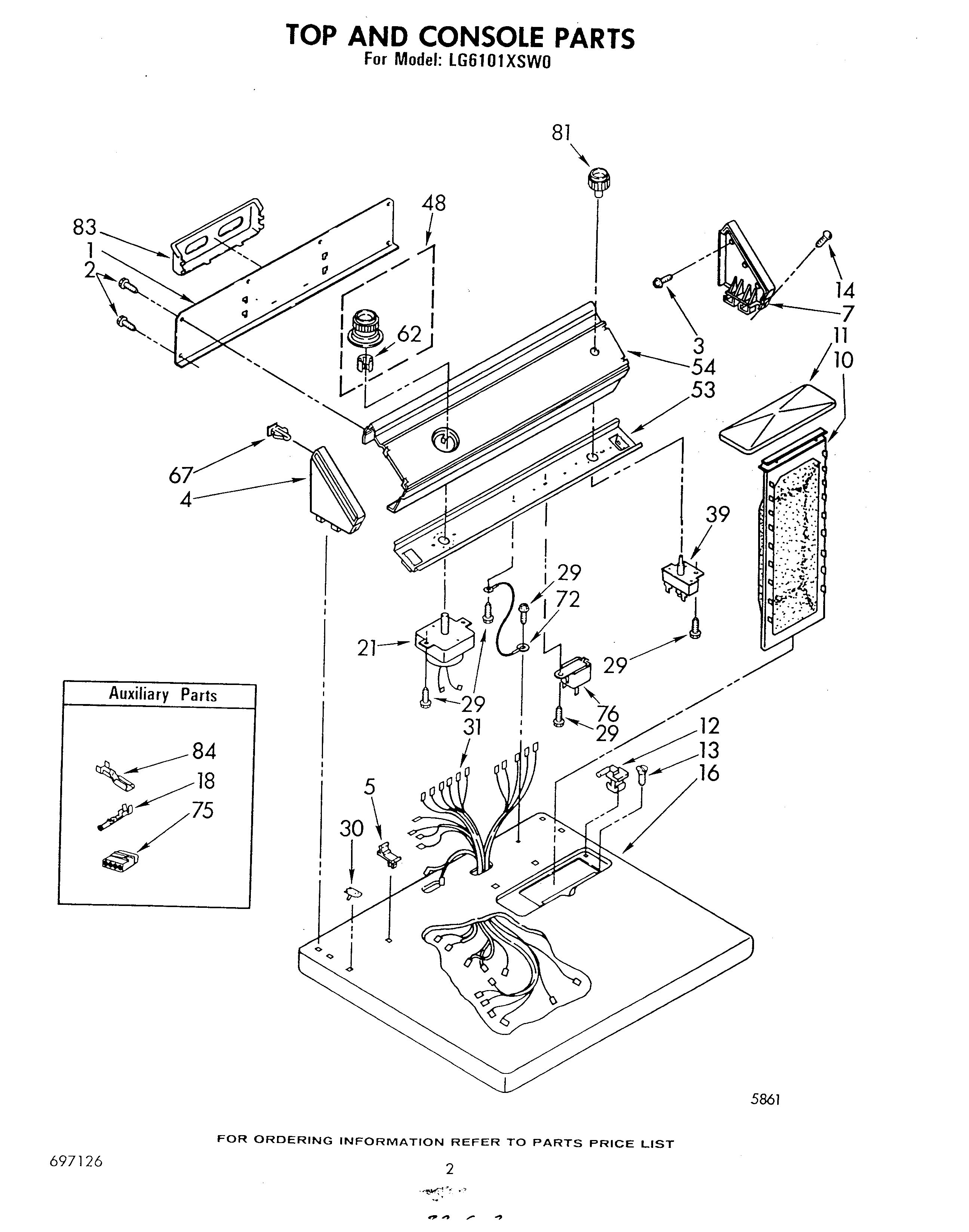

LG6101XSW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG6101XSW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG6101XSW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT697561
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
WPL LIT677971
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT677967
Washer (Belt Drive)
WPL LIT696233
WPL LIT696766
WPL LIT697126
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Dryer
350938 Whirlpool Spray Gun
Almond (Uncut)
Leveler (Thinner)
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
7WPL 63795
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (Almond)
16Top (Golden Harvest)
16Top (White)
16Top (Toast)
16Top (Platinum)
18WP94614 Whirlpool Terminal
21Timer Assembly, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Push-To-Start
48Timer Knob & Dial
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75353424 Whirlpool Connector
75Connector (Door Switch)
76WP694419 Whirlpool Buzzer Adjuster
81Knob, Push-To-Start
83Rack, Literature
84WP596797 Whirlpool Terminal
