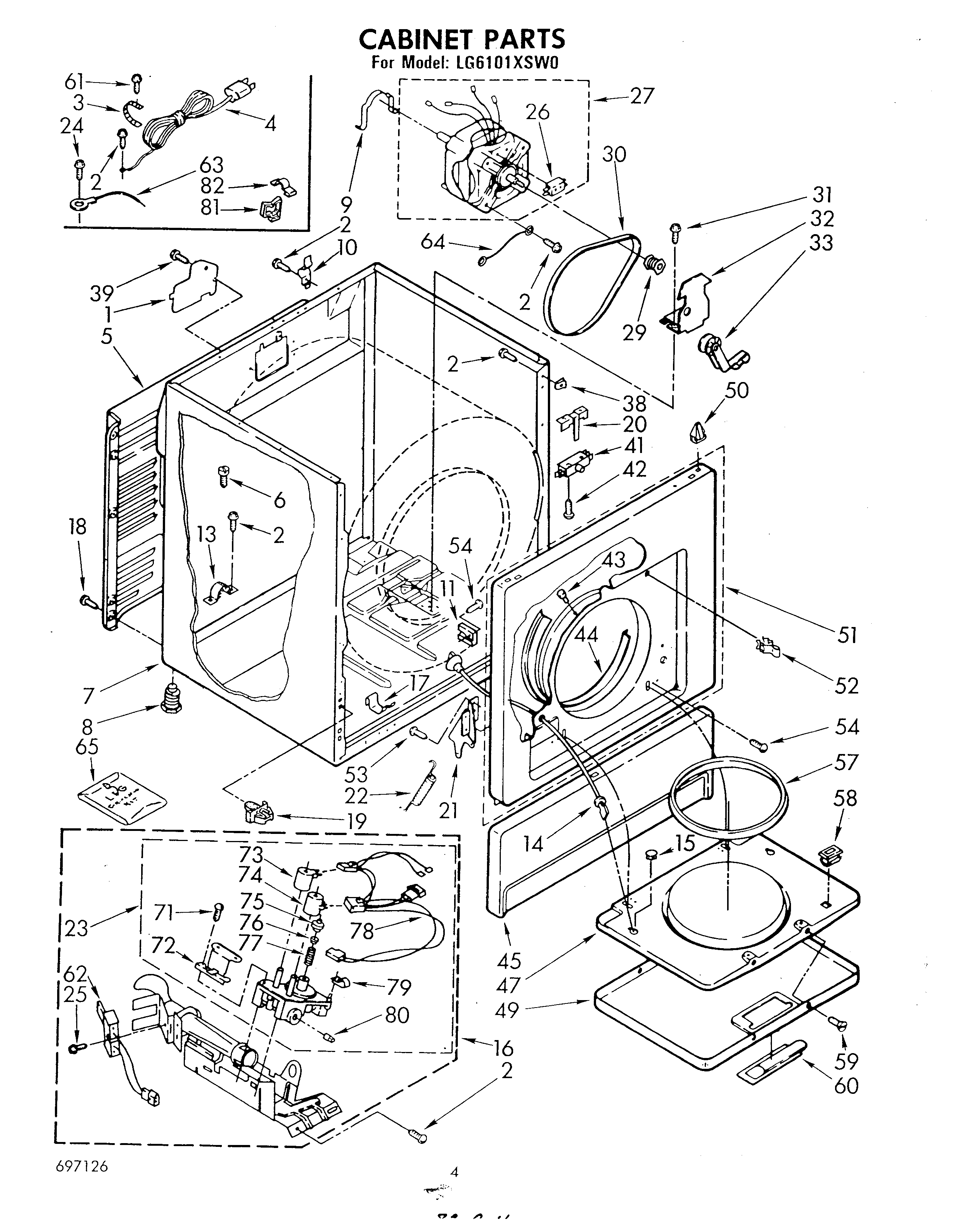

LG6101XSW0 03 – CABINET

Products

Position	Product
1	W11736322 Whirlpool Cover Assembly
3	Strap, Ground
4	W11222083 Whirlpool Power Cord
5	Panel, Rear
6	SCREW
7	Cabinet (Platinum)
7	Cabinet (Almond)
7	Cabinet (White)
7	Cabinet (Golden Harvest)
7	Cabinet (Toast)
8	49621 Whirlpool Leveling Feet
9	WP660658 Whirlpool Clamp
10	WP8066217 Whirlpool Hinge
11	GUIDE
11	Guide, Cable (R.H.)
13	341029 Whirlpool Clamp
14	Cable, Door (2)
15	WP660975 Whirlpool Button Plug
16	Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
17	WP297092 Whirlpool Clip
18	WP489069 Whirlpool Compactor Screw
19	Clip, Toe Panel (2)
20	WP691581 Whirlpool Actuator
21	Hinge, Door (R.H.)
21	WP238460 Whirlpool Hinge
22	WP337186 Whirlpool Door Spring
23	279923 Whirlpool Gas Valve
25	WPW10366705 Whirlpool Screw
26	279827 Whirlpool Dryer Drive Motor
29	WP8066184 Whirlpool Dryer Motor Pulley
30	341241 Whirlpool Dryer Drum Belt
31	3400500 Whirlpool Screw
32	WP348780 Whirlpool Base
33	WP691366 Whirlpool Dryer Idler Pulley Assembly
38	WP98234 Whirlpool Nut
39	WP693995 Whirlpool Screw
41	W10820036 Whirlpool Door Switch Kit
42	WP98129 Whirlpool Screw
43	279220 Whirlpool Clip
44	279264 Whirlpool Bearing and Seal Kit
45	Panel, Toe (Golden Harvest)
45	WPL 695000
45	WPL 694999
45	Panel, Toe (White)
45	Panel, Toe (Almond)
47	Door, Rear
49	Door, Front (Almond)
49	Door Front (New Gold)
49	Door, Front (Toast)
49	Door, Fr
49	Door, Front (White)
50	WP18776 Whirlpool Lock
51	Upper Front Panel (White)
51	WPL 695187
51	Upper Front Panel (Almond)
51	WPL 689531
51	WPL 695186
53	WP488627 Whirlpool Refrigerator Screw
54	WP90767 Whirlpool Screw
57	W11613302 Whirlpool Door Seal
58	279570 Whirlpool Dryer Door Latch Kit
59	WP694091 Whirlpool Screw
60	Handle (Golden Harvest)
60	Handle (Almond)
60	WPL 695016
60	WPL 695017
60	WP348721 Whirlpool Handle
61	Screw, Ground (10-24 x 1)
62	279311 Whirlpool Dryer Flat Igniter with Bracket
63	WPL 364089
64	Wire, Ground (Motor)
65	49572A Whirlpool Dryer Propane Gas Conversion Kit
65	Kit, Conversion Type 1 To Type 3 (MFD)
71	694421 Whirlpool Screw Assembly
72	694538 Whirlpool Bracket
74	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
75	WP694424 Whirlpool Limiter
76	WP694423 Whirlpool Regulator
77	WP694422 Whirlpool Spring
78	WP3401850 Whirlpool Wire Harness
79	WPL 694510
80	W10295523 Whirlpool Plug
81	Clip, Harness (Rear Bulkhead Area)
82	8528351 Whirlpool Clip
