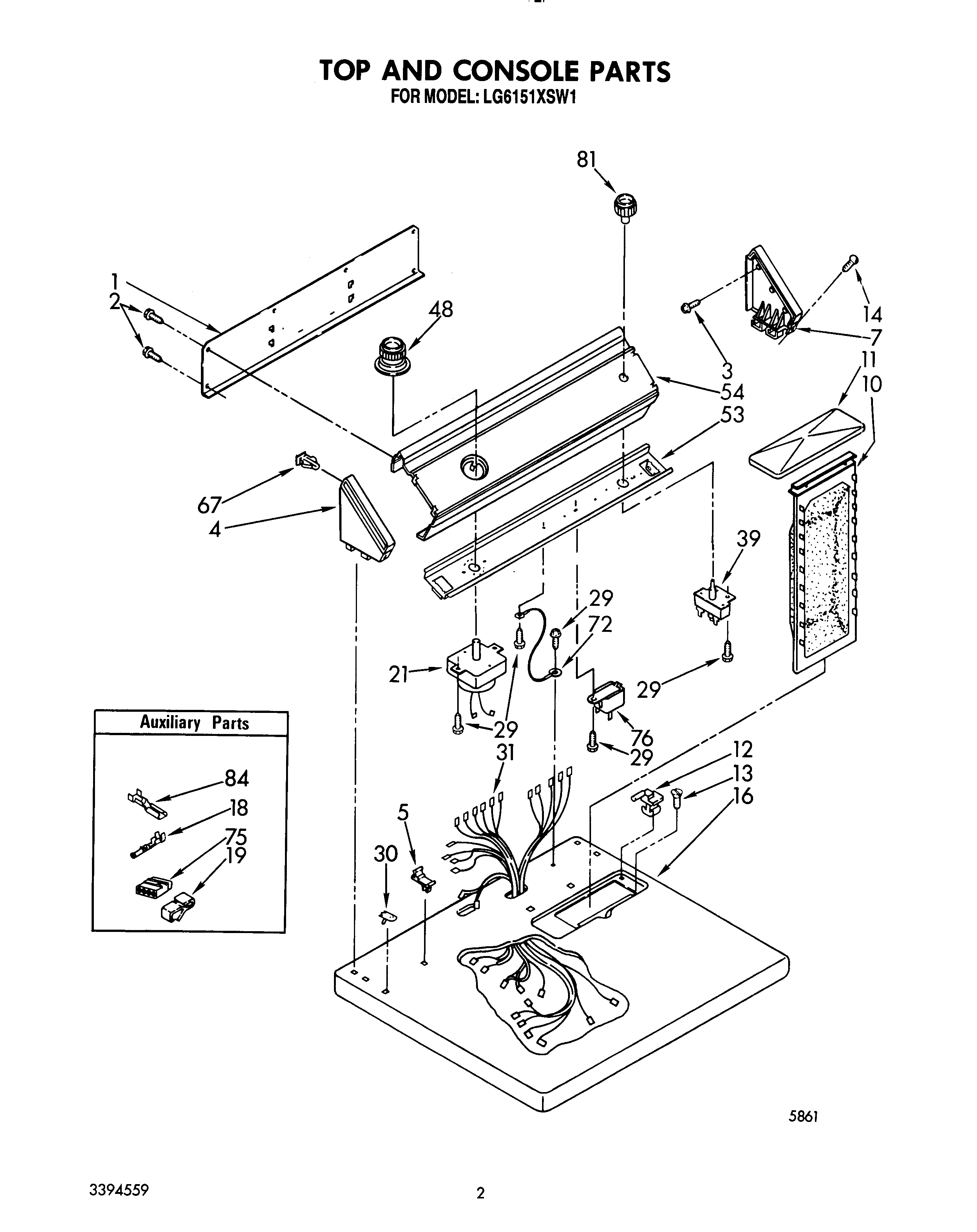

LG6151XSW1 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Almond (Uncut)
	Leveler (Thinner)
	Guide, Dryer
	WP72107 Whirlpool Touchup
	List, Service Parts
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Use & Care Guide
1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	Stop, Push-In Top
7	WPL 63795
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (Almond)
16	Top (White)
18	WP94614 Whirlpool Terminal
19	Clip, Retainer
21	Timer Assembly, 60 Hz.
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
31	Harness, Wiring
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
39	(Alt.)
48	Timer Knob & Dial
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
76	WP694419 Whirlpool Buzzer Adjuster
81	Knob, Push To Start
84	WP596797 Whirlpool Terminal
