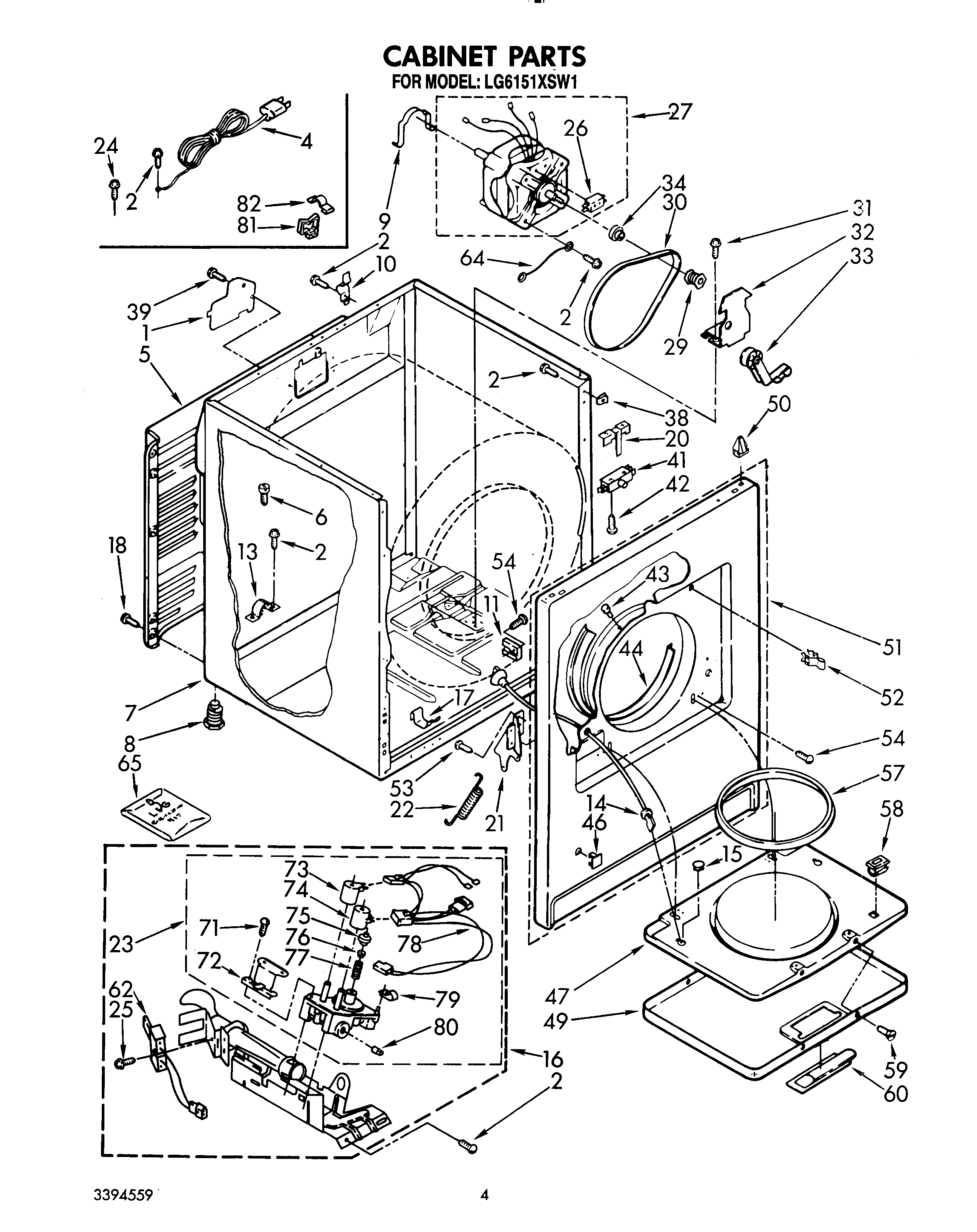

LG6151XSW1 03 – CABINET

LG6151XSW1 03 – CABINET

Written by

in

LG6151XSW1 03 – CABINET

Products

PositionProduct
1W11736322 Whirlpool Cover Assembly
4W11222083 Whirlpool Power Cord
5Panel, Rear
6SCREW
7Cabinet (White)
7Cabinet (Almond)
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WP8066217 Whirlpool Hinge
11Guide, Cable (R.H.)
11GUIDE
13341029 Whirlpool Clamp
14Cable, Door (2)
15WP660975 Whirlpool Button Plug
16Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
17W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
18WP489069 Whirlpool Compactor Screw
20WP691581 Whirlpool Actuator
21WP238460 Whirlpool Hinge
21Hinge, Door (R.H.)
22WP337186 Whirlpool Door Spring
23279923 Whirlpool Gas Valve
24W10850756 Whirlpool Screw
25WPW10366705 Whirlpool Screw
26279827 Whirlpool Dryer Drive Motor
29WP8066184 Whirlpool Dryer Motor Pulley
30341241 Whirlpool Dryer Drum Belt
313400500 Whirlpool Screw
32WP348780 Whirlpool Base
33WP691366 Whirlpool Dryer Idler Pulley Assembly
34WP3393657 Whirlpool Belt Retainer
38WP98234 Whirlpool Nut
39WP693995 Whirlpool Screw
41W10820036 Whirlpool Door Switch Kit
42WP98129 Whirlpool Screw
43279220 Whirlpool Clip
44279264 Whirlpool Bearing and Seal Kit
46Plug, Front Panel (White)
46Plug, Front Panel (Almond)
47Door, Rear
49Door, Front (Almond)
49Door, Front (White)
50WP18776 Whirlpool Lock
51Front Panel Assembly (White)
51Front Panel Assembly (Almond)
53WP488627 Whirlpool Refrigerator Screw
54WP90767 Whirlpool Screw
57W11613302 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
59WP694091 Whirlpool Screw
60WP348721 Whirlpool Handle
60Handle, Door (Almond)
62279311 Whirlpool Dryer Flat Igniter with Bracket
64Wire, Ground (Motor)
65Kit, Conversion Type 1 To Type 3 (MFD)
6549572A Whirlpool Dryer Propane Gas Conversion Kit
71694421 Whirlpool Screw Assembly
72694538 Whirlpool Bracket
74279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
75WP694424 Whirlpool Limiter
76WP694423 Whirlpool Regulator
77WP694422 Whirlpool Spring
78WP3401850 Whirlpool Wire Harness
79WPL 694510
80W10295523 Whirlpool Plug
81Clip, Harness (Rear Bulkhead Area)
828528351 Whirlpool Clip
