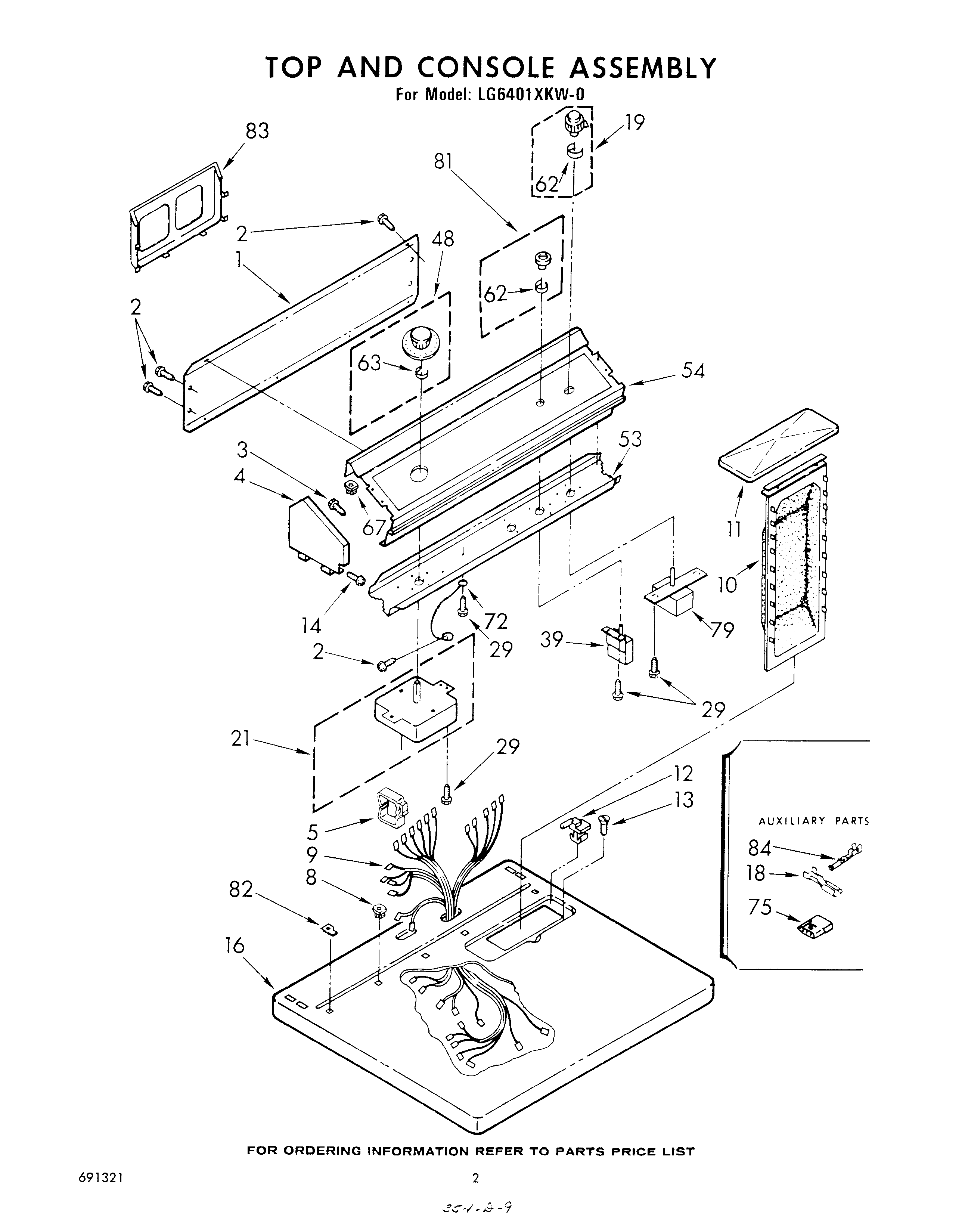

LG6401XKW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG6401XKW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG6401XKW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Wire, 25` Roll (Red 12 Ga.)
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End L.H. (White)
5Clip, Harness (Rear Bulkhead Area)
8Nut, Push-In (2)
9Harness, Wiring
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 1 (2)
16top (white)
16Top (Almond)
18WP94614 Whirlpool Terminal
19Control Knob Assembly
21Timer, 60 Hz.
29WP3390631 Whirlpool Screw
39(Alt.)
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62Clip
63WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
79Switch, Rotary
81Button Assembly
82Stop, Push-In Top
83Rack, Literature
84Instructions,
84WPL 688898
84Instructions, Wiring
84WPL 691254
84WPL 691321
84Wire, Adapter (4-1/2 “ Long)
84Supplement, Installation Instructions
84Wire, Adapter (4“ Long)
84350956 Whirlpool Spray Assembly
8472017 Whirlpool Appliance Touch-Up Paint White
84799344 Whirlpool Refrigerator Paint
84WP72107 Whirlpool Touchup
84Almond (Uncut)
84WP596797 Whirlpool Terminal
84350930 Whirlpool White Spray Paint
8472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
84Golden Harvest
84Golden Harvest (Uncut)
84279320 Whirlpool Dryer Rear Terminal Block Kit
84Enamel, Coffee (1 Qt. Uncut)
84Enamel, New Avocado (1 Qt. Uncut)
84Leveler (Thinner)
84WPL 799351
84W10851673 Whirlpool Transformer
84350938 Whirlpool Spray Gun
