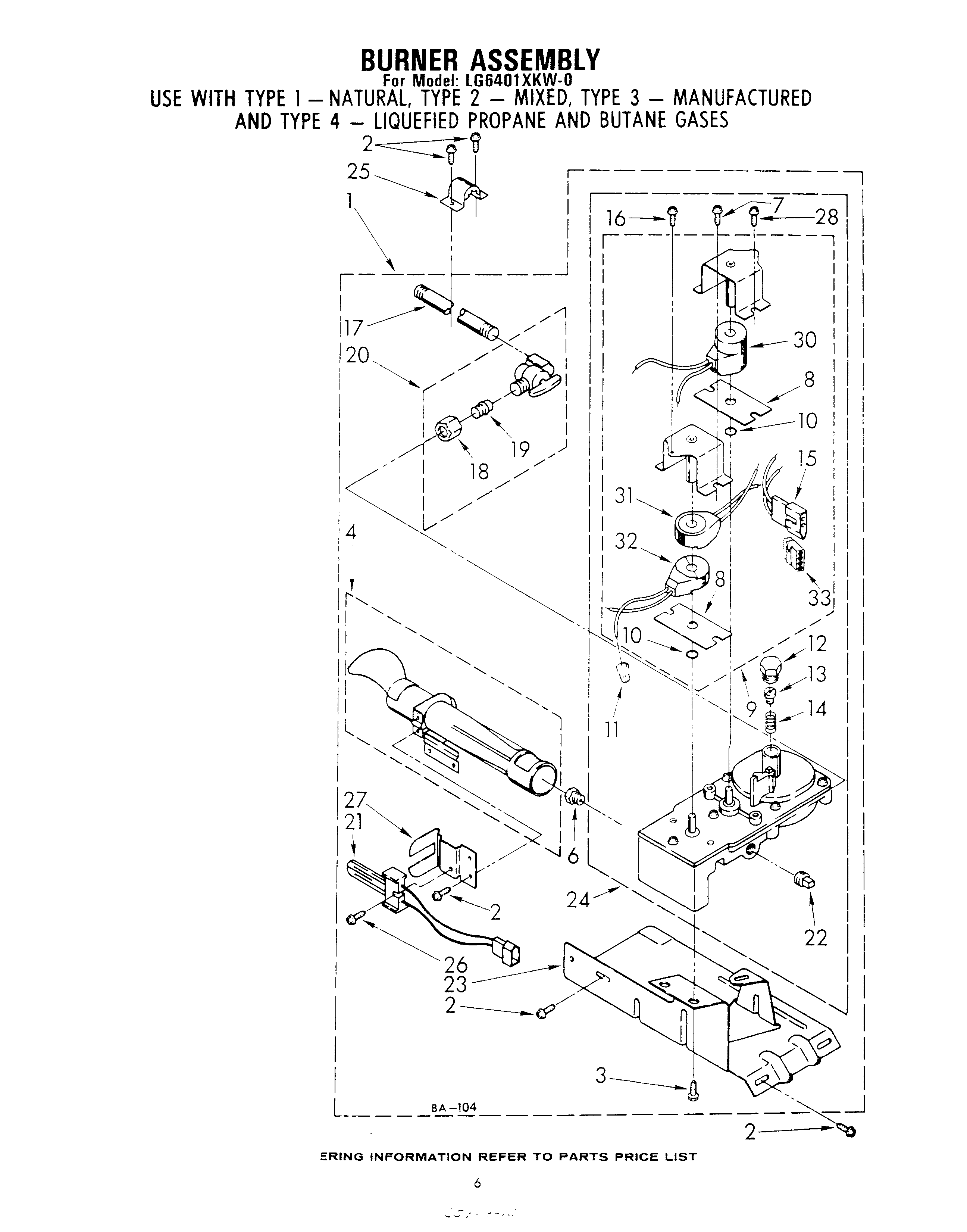

LG6401XKW0 04 – BURNER

Products

PositionProduct
1Burner Assembly, 60 Hz. (Type 1, 2 & 3) (White Rodgers)
2SCREW
3WP90767 Whirlpool Screw
4WP693140 Whirlpool Burner
6Orifice, Burner (Type 4 (Butane))
6WP229742 Whirlpool Gas Orifice
6WP15418 Whirlpool Gas Orifice
6Orifice, Burner (Type 3)
6Orifice, Burner (Type 1)
7WP489128 Whirlpool Refrigerator Screw
8Plate (2)
9BURNER-GAS
10Ring, “O“ (2)
11Connector, Wire (3)
12Screw, Leak Limiter
13Screw, Regulator Adjustment
14Spring, Regulator
15353424 Whirlpool Connector
16Screw, 6-20 x 5/16
17Pipe, Gas Supply
18Nut, Compression
193393767 Whirlpool Pipe
20Valve & Union, Shut-Off
21279311 Whirlpool Dryer Flat Igniter with Bracket
22W10295523 Whirlpool Plug
23Baseplate
24BURNER-GAS
25341029 Whirlpool Clamp
26WPW10366705 Whirlpool Screw
27WP694298 Whirlpool Bracket
28Screw, 8-32 x 5/8 (2)
30Coil Assembly (Main)
31Coil Assembly (Hold)
32Coil Assembly (Assist)
33W10402145 Whirlpool LP Gas Connection
33Receptacle, Latching (2-Way) (Uses Terminal 94614)
33Kit, Conversion Type 1 To Type 3 (MFD)
