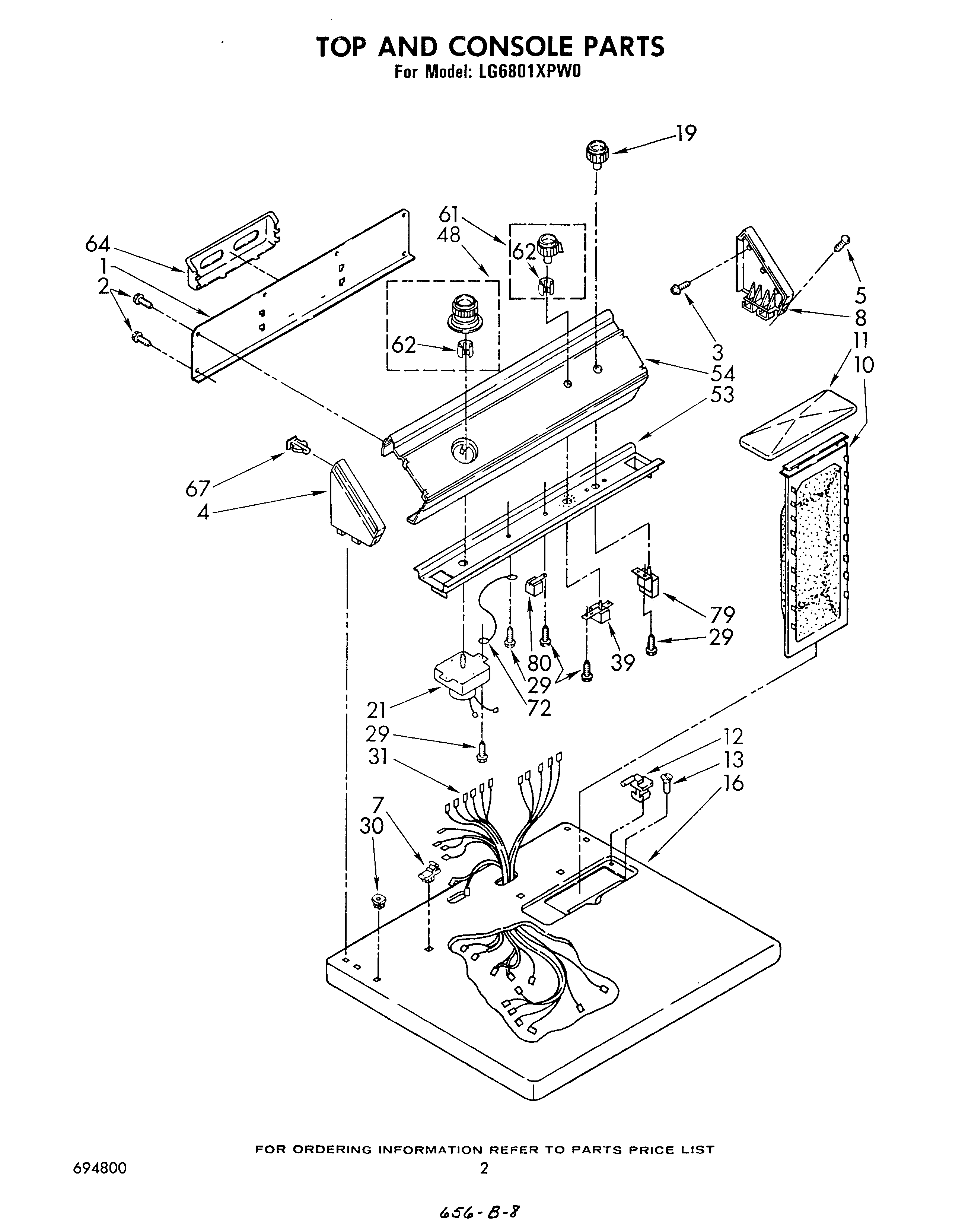

LG6801XPW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

LG6801XPW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Written by

in

LG6801XPW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Products

PositionProduct
Almond (Uncut)
Golden Harvest (Uncut)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
799344 Whirlpool Refrigerator Paint
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5WPL 64211
7Stop, Push-In Top
8WPL 63795
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Platinum)
16Top (Toast)
16Top (Golden Harvest)
16Top (White)
16Top (Almond)
19Knob, Push To Start
21Timer Assembly 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Temperature Selector
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
61Knob, Water Level
62WP688805 Whirlpool Spring Clip
64Rack, Literature
67WP689559 Whirlpool Nut
72Wire, Ground
79Switch, Push-To-Start
79WPL 685067
79Switch, Push-To-Start (Alternate)
80Use & Care Guide
80350938 Whirlpool Spray Gun
80350956 Whirlpool Spray Assembly
8072017 Whirlpool Appliance Touch-Up Paint White
80WP72107 Whirlpool Touchup
80Leveler (Thinner)
80List, Service Parts
80350930 Whirlpool White Spray Paint
8072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
80Wire, 25` Roll (Blue 16 Ga.)
80WPL 799351
80Wire, 25` Roll (Red 12 Ga.)
80WPL 72112
80WPL 693849
80Paint, Spray (13 Oz.) (Platinum)
80Toast
80WP694419 Whirlpool Buzzer Adjuster
80Golden Harvest
8072113 Whirlpool Touch-Up Paint
80WPL 696233
