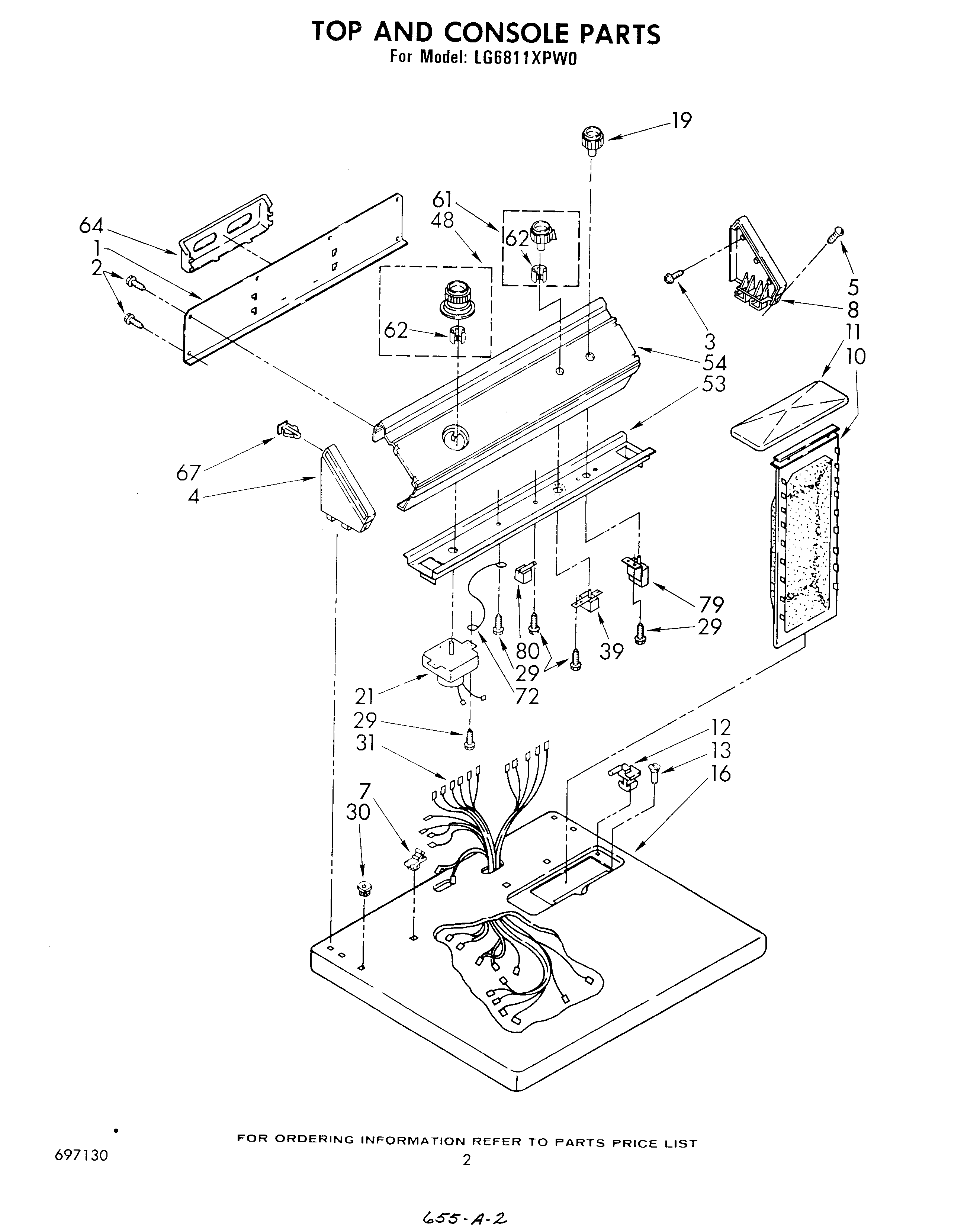

LG6811XPW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT696768
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
Wire, 25` Roll (Red 12 Ga.)
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT677971
WPL LIT677967
WPL LIT697130
Washer (Belt Drive)
Guide, Dryer
WPL LIT696233
72113 Whirlpool Touch-Up Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Leveler (Thinner)
WP72107 Whirlpool Touchup
Almond (Uncut)
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
Dryer
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5WPL 64211
7Stop, Push-In Top
8WPL 63795
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Platinum)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Toast)
16Top (Golden Harvest)
16Top (White)
16Top (Almond)
16Top (Platinum)
19Knob, Push To Start
21Timer Assembly, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Temperature (Variable)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
61Knob, Water Level
62WP688805 Whirlpool Spring Clip
64Rack, Literature
67WP689559 Whirlpool Nut
72Wire, Ground
79Switch, Push-To-Start
79(Alt.)
79Switch, Push-To-Start (Alternate)
80WP694419 Whirlpool Buzzer Adjuster
