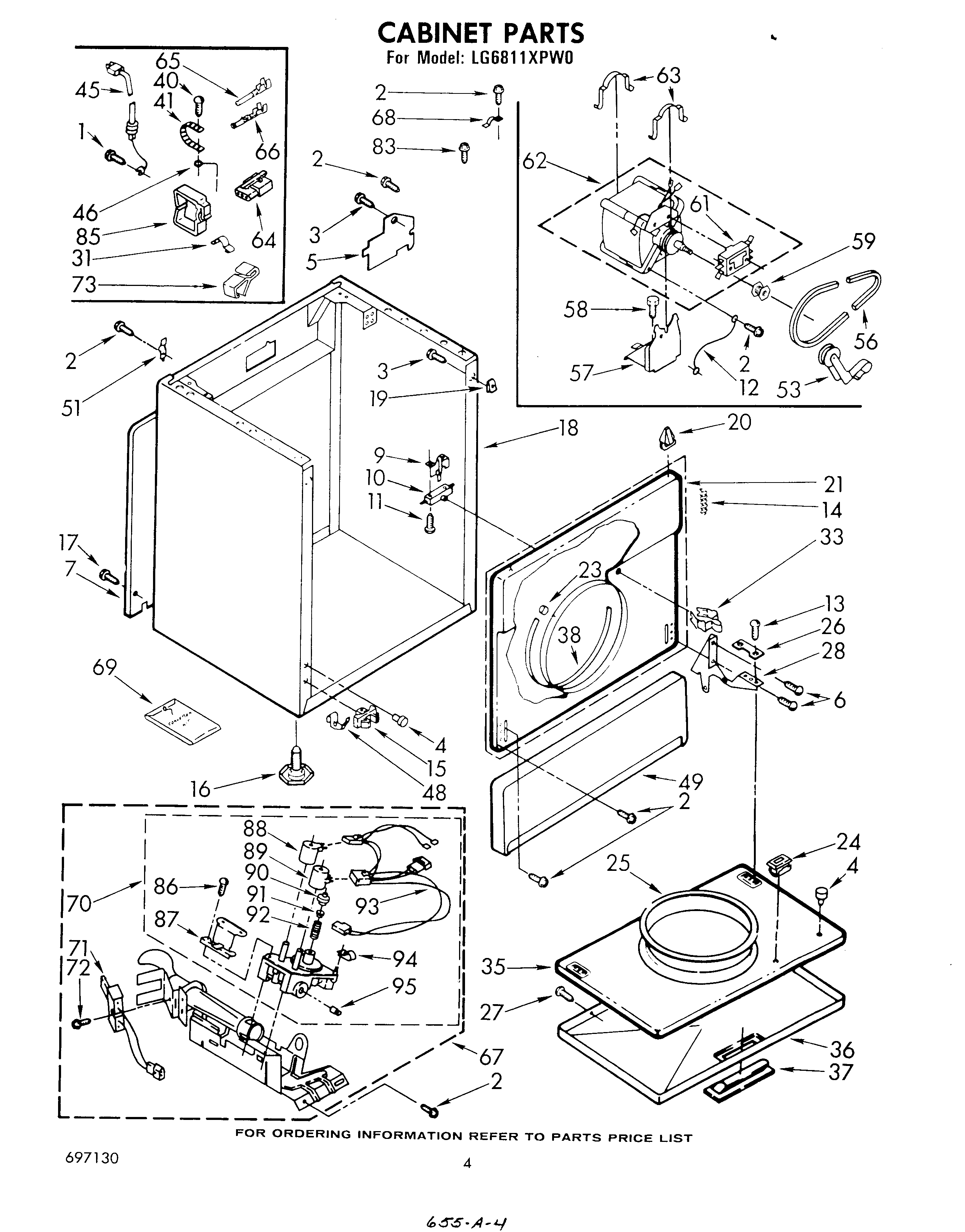

LG6811XPW0 03 – CABINET

LG6811XPW0 03 – CABINET

Written by

in

LG6811XPW0 03 – CABINET

Products

PositionProduct
3WP693995 Whirlpool Screw
4238614 Whirlpool Bumper Hinge
5W11736322 Whirlpool Cover Assembly
6Screw, 10-32 x 1/2
7Panel, Rear
9WP691581 Whirlpool Actuator
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
12Wire, Ground (Motor)
13WP308685 Whirlpool Microwave Screw
14Spring, Door (2)
15Clip, Toe Panel (2)
1649621 Whirlpool Leveling Feet
17WP489069 Whirlpool Compactor Screw
18Cabinet (Golden Harvest)
18Cabinet (Almond)
18Cabinet (Platinum)
18Cabinet (Toast)
18Cabinet (White)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly (White)
21Front Panel Assembly (Almond)
21Front Panel Assembly (Platinum)
21Front Panel Assembly (New Gold)
21Front Panel Assembly (Toast)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25WP3390733 Whirlpool Door Seal Assembly
26W11252547 Whirlpool Clip Assembly
27WP694091 Whirlpool Screw
28Hinge, R.H.
28Hinge, L.H.
318528351 Whirlpool Clip
35Door, Rear
36Door, Front (White)
36Door, Front (Golden Harvest)
36Door, Front (Almond)
36Door, Front (Toast)
36Door, Front
37WPL 695016
37WPL 695017
37Handle (Golden Harvest)
37Handle (Almond)
37WP348721 Whirlpool Handle
38279264 Whirlpool Bearing and Seal Kit
40Screw, Ground (10-24 x 1)
41Strap, Ground
45W11222083 Whirlpool Power Cord
46WPL 364089
48WP297092 Whirlpool Clip
49WPL 695000
49WPL 694999
49Panel, Toe (Golden Harvest)
49Panel, Toe (Almond)
49Panel, Toe (White)
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64Receptacle, 3-Way Terminal (Use W/94614)
65WP596797 Whirlpool Terminal
66WP94614 Whirlpool Terminal
67Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
68341029 Whirlpool Clamp
69Kit, Conversion Type 1 To Type 3 (MFD)
6949572A Whirlpool Dryer Propane Gas Conversion Kit
70279923 Whirlpool Gas Valve
71279311 Whirlpool Dryer Flat Igniter with Bracket
72WPW10366705 Whirlpool Screw
73Clip, Retainer
83SCREW
85Clip, Harness (Rear Bulkhead Area)
86694421 Whirlpool Screw Assembly
87694538 Whirlpool Bracket
89279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
90WP694424 Whirlpool Limiter
91WP694423 Whirlpool Regulator
92WP694422 Whirlpool Spring
93WP3401850 Whirlpool Wire Harness
94WPL 694510
95W10295523 Whirlpool Plug
