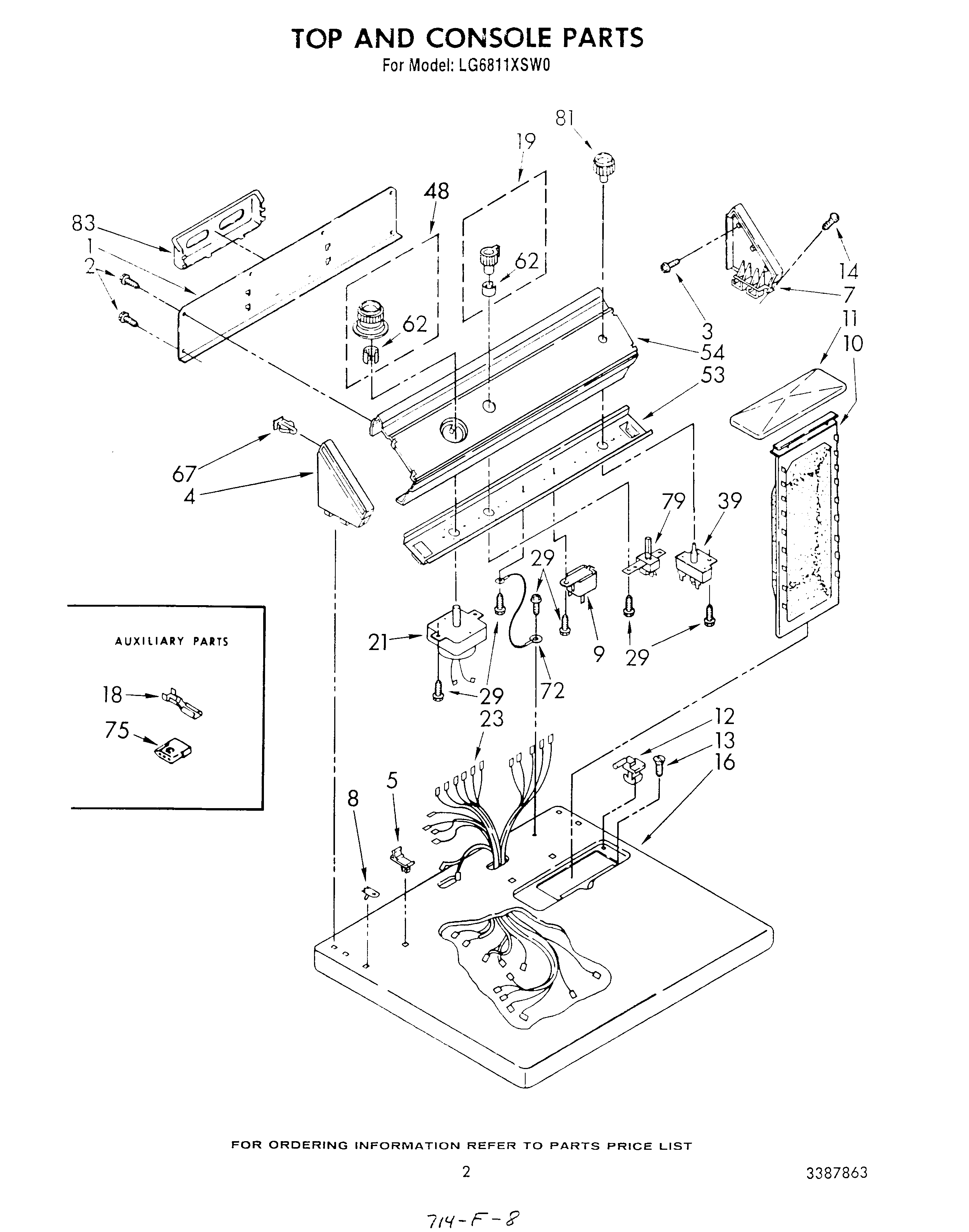

LG6811XSW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG6811XSW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG6811XSW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT677967
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
WPL 72112
Guide, Dryer
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
Washer (Belt Drive)
Platinum (Uncut)
Dryer
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL LIT3387863
WP72107 Whirlpool Touchup
WPL LIT3390209
WPL LIT677971
Leveler (Thinner)
350938 Whirlpool Spray Gun
Almond (Uncut)
350930 Whirlpool White Spray Paint
WPL LIT3389442
350956 Whirlpool Spray Assembly
1Panel, Rear
2WP489069 Whirlpool Compactor Screw
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
7WPL 63795
8Nut, Push-In (2)
9WP694419 Whirlpool Buzzer Adjuster
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (White)
16Top (Toast)
16Top (Almond)
16Top (Golden Harvest)
16Top (Platinum)
18WP94614 Whirlpool Terminal
19Control Knob, Temperature
21Timer Assembly, 60 Hz.
23Harness, Wiring
29WP3390631 Whirlpool Screw
39(Alt.)
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
79Switch, Temperature (Variable)
81Knob, Push-To-Start
83Rack, Literature
