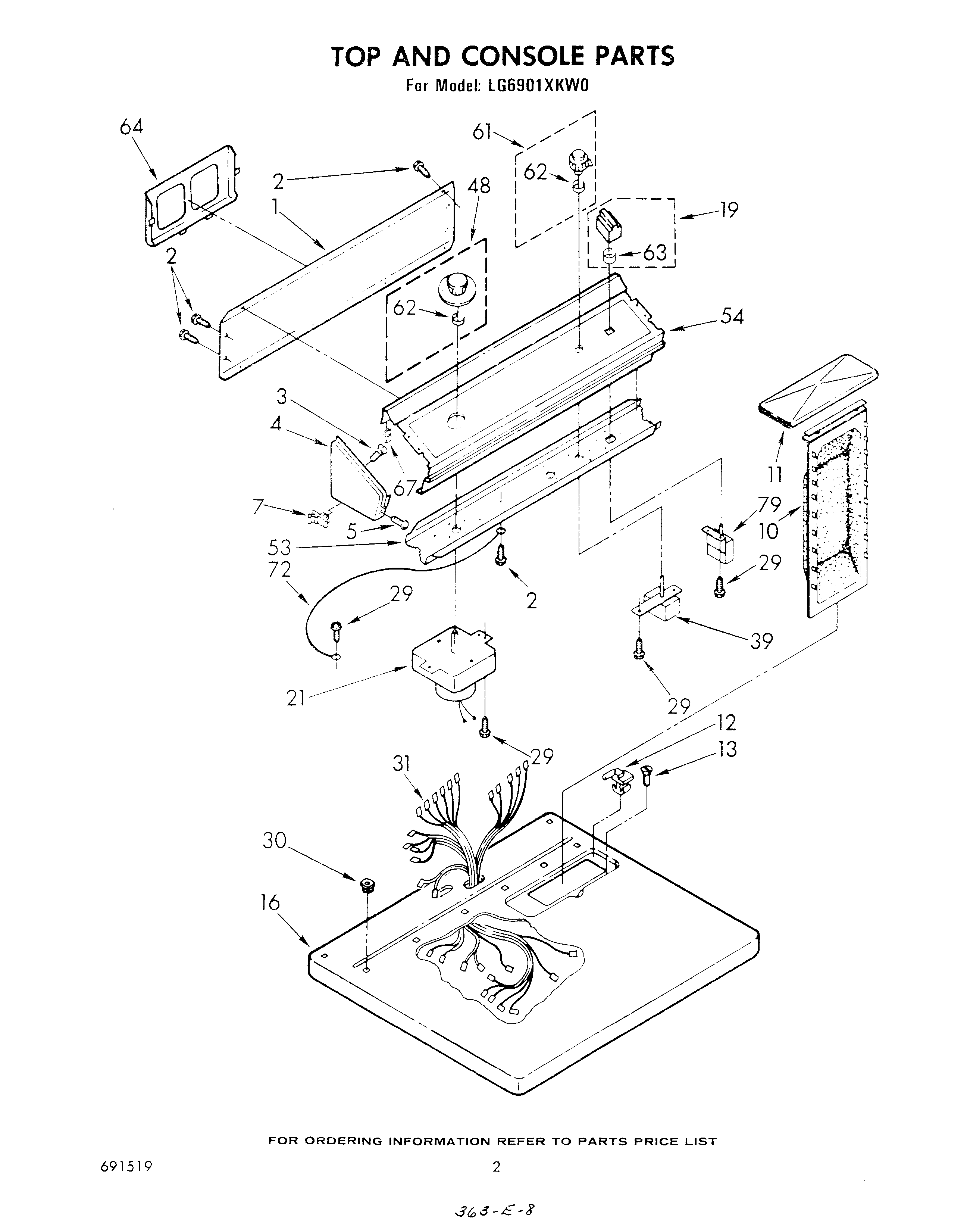

LG6901XKW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Golden Harvest (Uncut)
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (White)
4Cap, End L.H. (Golden Harvest)
5Screw, 8-18 x 1 (2)
7Stop, Push-In Top
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16top (white)
16Top (Almond)
16Top (Golden Harvest)
19Button Assembly
21Timer Assembly 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Rotary
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
61Control Knob Assembly
62WP688805 Whirlpool Spring Clip
63Clip
64Rack, Literature
67WP689559 Whirlpool Nut
72Wire, Ground
79Instructions,
79350956 Whirlpool Spray Assembly
79WPL 799351
79Use & Care Guide
79List, Service Parts
79350938 Whirlpool Spray Gun
79(Alt.)
7972017 Whirlpool Appliance Touch-Up Paint White
79WP72107 Whirlpool Touchup
79Switch, Push-To-Start (Alternate)
79WPL 688898
79350930 Whirlpool White Spray Paint
7972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
79Golden Harvest
79Leveler (Thinner)
