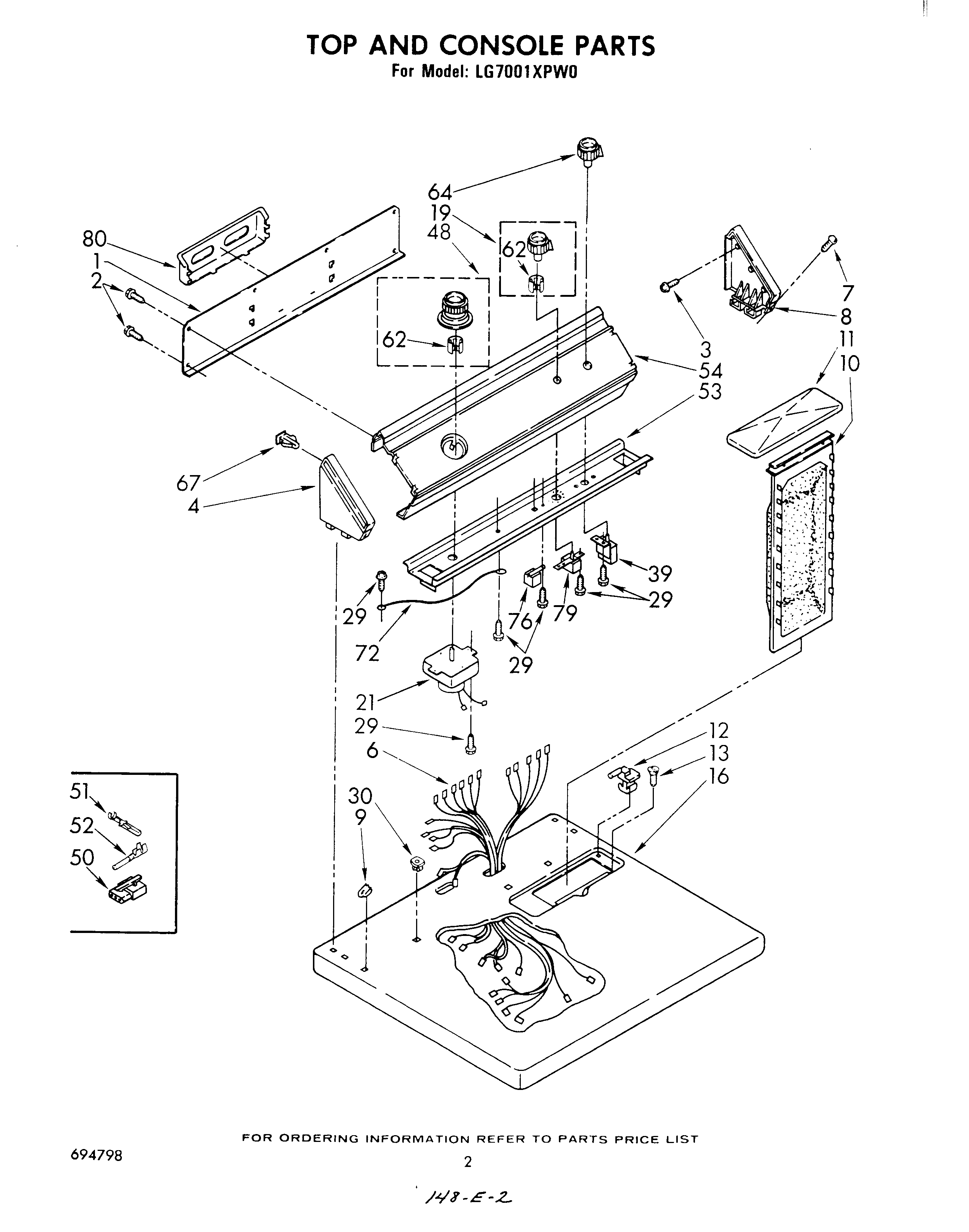

LG7001XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG7001XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG7001XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Almond (Uncut)
Golden Harvest (Uncut)
Wire, 25` Roll (Red 12 Ga.)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
799344 Whirlpool Refrigerator Paint
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
6Harness, Wiring
7WPL 64211
8WPL 63795
9Stop, Push-In Top
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Golden Harvest)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Toast)
16Top (White)
16Top (Almond)
16Top (Golden Harvest)
16Top (Platinum)
19Knob, Water Level
21Timer Assembly 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
39WPL 685067
48Timer Knob Assembly
50Receptacle, 3-Way Terminal (Use W/94614)
51WP596797 Whirlpool Terminal
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
64Knob, Push To Start
67WP689559 Whirlpool Nut
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79WPL 695091
80WPL 696233
80350956 Whirlpool Spray Assembly
80350938 Whirlpool Spray Gun
80WP72107 Whirlpool Touchup
80Use & Care Guide
80Leveler (Thinner)
8072017 Whirlpool Appliance Touch-Up Paint White
80350930 Whirlpool White Spray Paint
80WPL 799351
80Rack, Literature
80WPL 693849
80WPL 72112
80Paint, Spray (13 Oz.) (Platinum)
80Toast
80Golden Harvest
8072113 Whirlpool Touch-Up Paint
8072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
80WPL 694798
