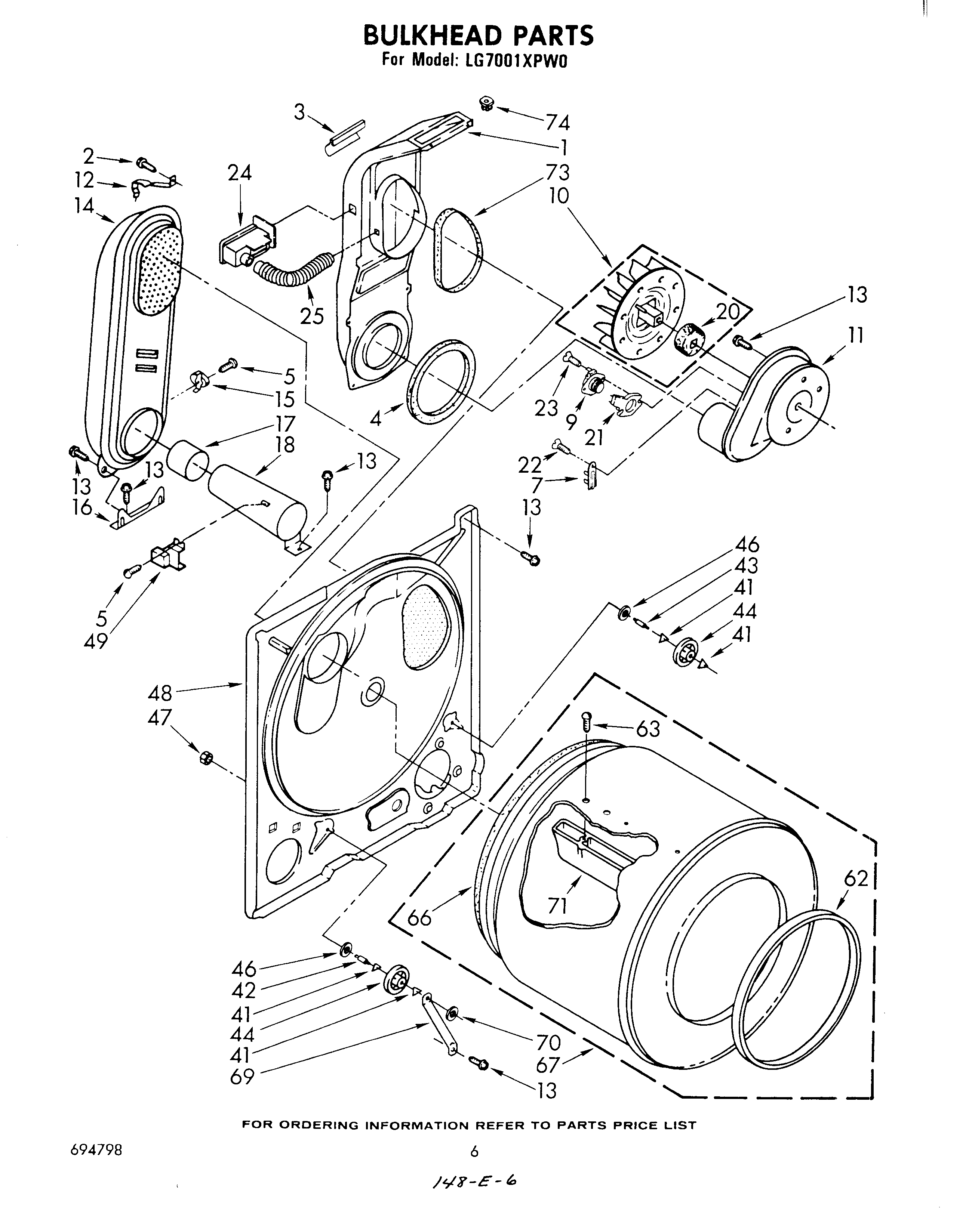

LG7001XPW0 04 – BULKHEAD

Products

PositionProduct
1Lint Chute
3686770 Whirlpool Support Bracket
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
7WP3392519 Whirlpool Dryer Thermal Fuse
9WP694674 Whirlpool Cycling Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
15Thermostat SPST (205)
15Thermostat, 205 F (96 C)
15(Alt.)
16Support, Heater Box (2)
17279900 Whirlpool Box O/S1
20Seal, Blower
21Thermostat, Heater
22WP965173 Whirlpool Dishwasher Screw
23WP488729 Whirlpool Refrigerator Door Screw
24Alert, Lint
25Hose, Differential
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
49WP338906 Whirlpool Dryer Gas Sensor
62WP3394509 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67697760 Whirlpool Drum Assembly Primary OS2
69Bracket, Support
70WP90296 Whirlpool Clip
71WP342847 Whirlpool Drum Baffle
73SEAL
7498460 Whirlpool Nut
