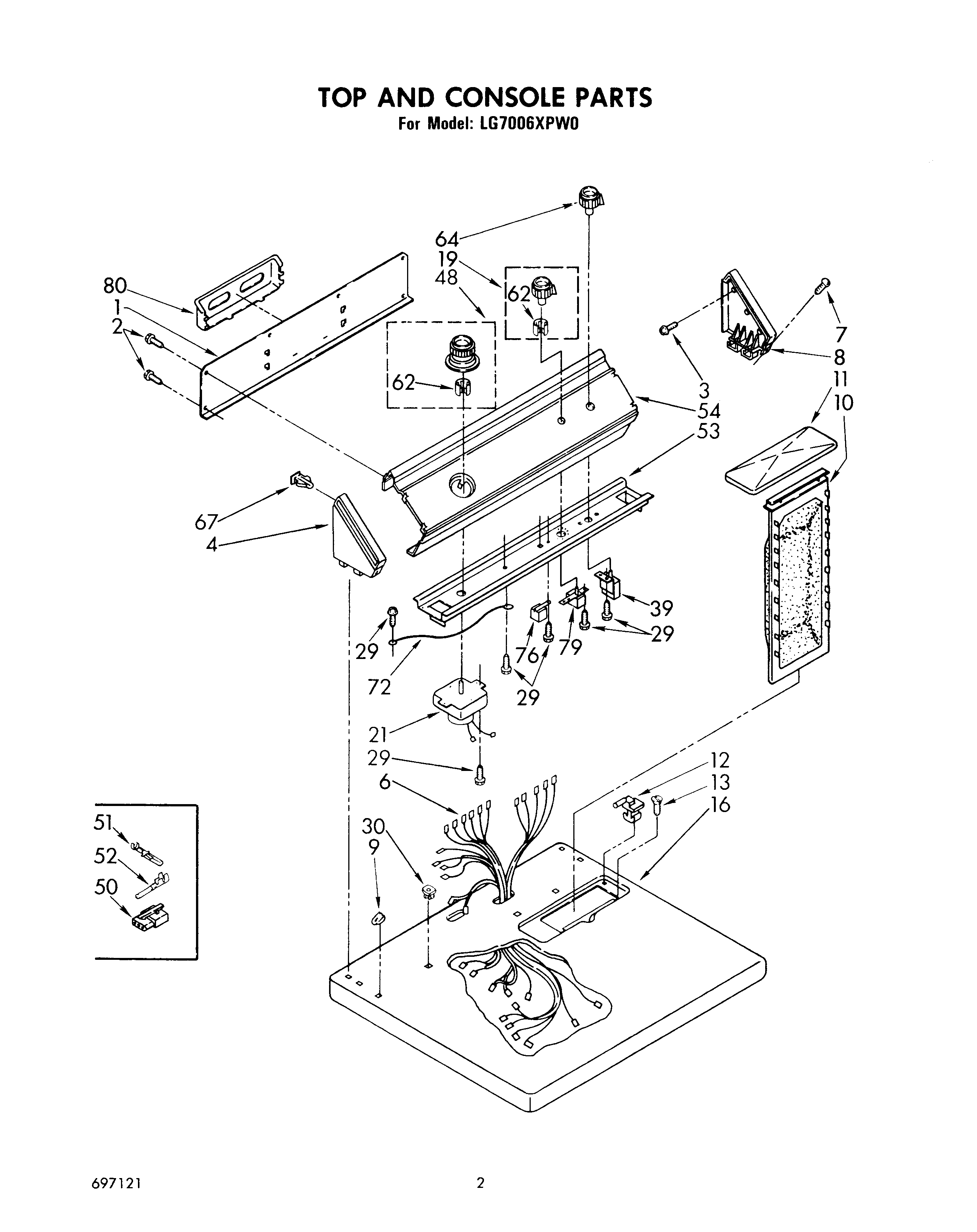

LG7006XPW0 02 – TOP AND CONSOLE, LIT/OPTIONAL

LG7006XPW0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LG7006XPW0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
WPL LIT696763
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
WPL LIT677967
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT677971
Washer (Belt Drive)
WPL LIT697121
Guide, Dryer
WPL LIT696233
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WP72107 Whirlpool Touchup
Leveler (Thinner)
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
72017 Whirlpool Appliance Touch-Up Paint White
Dryer
350930 Whirlpool White Spray Paint
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
6Harness, Wiring
7WPL 64211
8WPL 63795
9Stop, Push-In Top
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Golden Harvest)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Platinum)
16Top (Toast)
16Top (Golden Harvest)
16Top (Almond)
16Top (White)
19Knob, Water Level
21Timer Assembly 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
39WPL 685067
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
50Receptacle, 3-Way Terminal (Use W/94614)
51WP596797 Whirlpool Terminal
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
64Knob, Push To Start
67WP689559 Whirlpool Nut
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79WPL 695091
80Wire, 25` Roll (Red 12 Ga.)
80Rack, Literature
80WPL 010875
