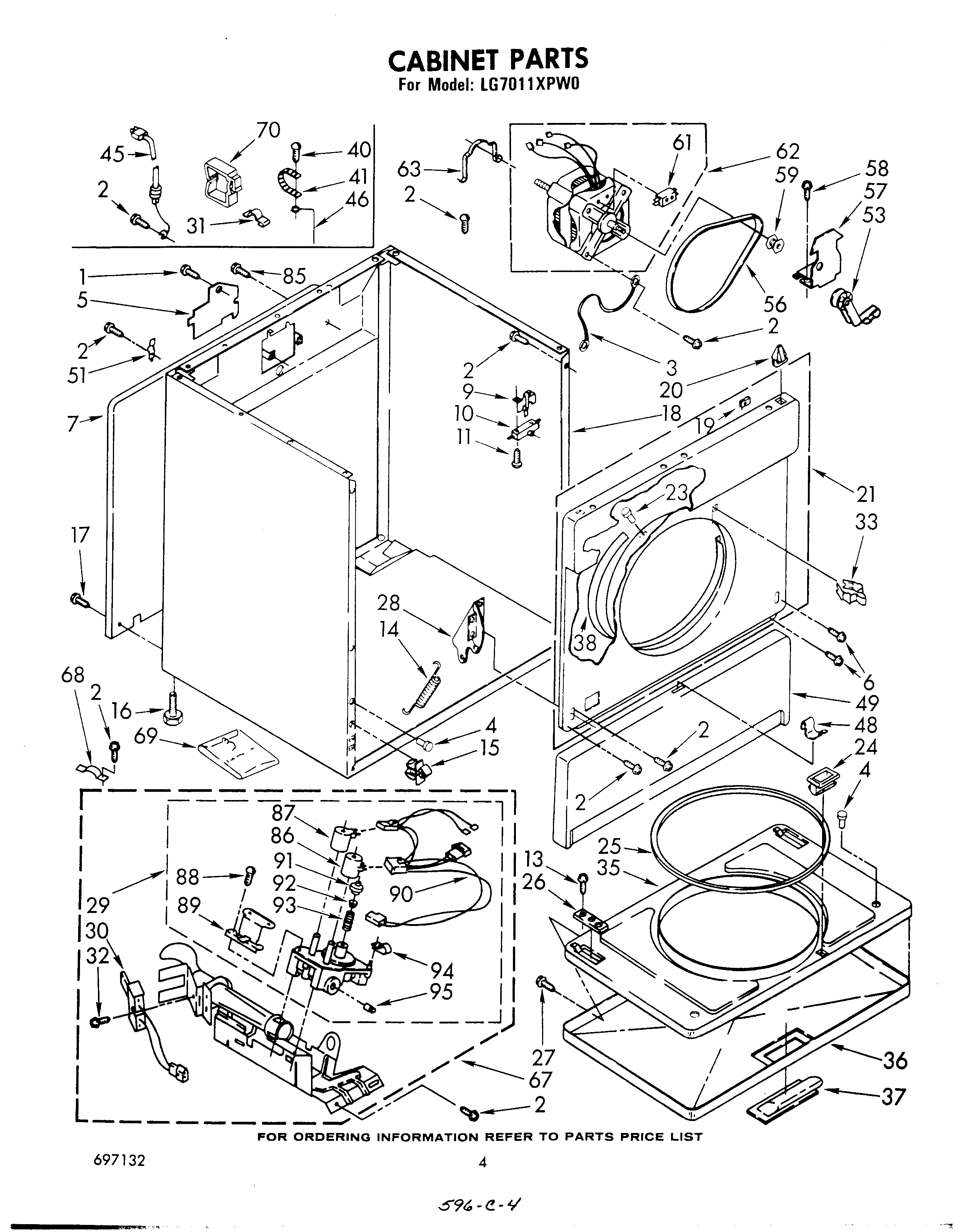

LG7011XPW0 03 – CABINET

Products

PositionProduct
1WP693995 Whirlpool Screw
2SCREW
3Wire, Ground (Motor)
4238614 Whirlpool Bumper Hinge
5W11736322 Whirlpool Cover Assembly
6Screw, 10-32 x 1/2
7Panel, Rear
9WP691581 Whirlpool Actuator
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
13WP308685 Whirlpool Microwave Screw
14Spring, Door (2)
15Clip, Toe Panel (2)
1649621 Whirlpool Leveling Feet
17WP489069 Whirlpool Compactor Screw
18Cabinet (Toast)
18Cabinet (Platinum)
18Cabinet (White)
18Cabinet (Golden Harvest)
18Cabinet (Almond)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly (Almond)
21Front Panel Assembly (Toast)
21Front Panel Assembly (White)
21Front Panel Assembly (Platinum)
21Front Panel Assembly (New Gold)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25WP3390733 Whirlpool Door Seal Assembly
26W11252547 Whirlpool Clip Assembly
27WP694091 Whirlpool Screw
28Hinge, L.H.
28Hinge, R.H.
29279923 Whirlpool Gas Valve
30279311 Whirlpool Dryer Flat Igniter with Bracket
318528351 Whirlpool Clip
32WPW10366705 Whirlpool Screw
35Door, Rear
36Door, Front (Golden Harvest)
36Door, Front (Almond)
36Door, Front
36Door, Front (White)
36Door, Front (Toast)
37WPL 695017
37Handle (Almond)
37Handle (Golden Harvest)
37WP348721 Whirlpool Handle
37WPL 695016
38279264 Whirlpool Bearing and Seal Kit
40Screw, Ground (10-24 x 1)
41Strap, Ground
45W11222083 Whirlpool Power Cord
46WPL 364089
48WP297092 Whirlpool Clip
49WPL 694999
49Panel, Toe (Golden Harvest)
49Panel, Toe (White)
49WPL 695000
49Panel, Toe (Almond)
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
67Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
68341029 Whirlpool Clamp
6949572A Whirlpool Dryer Propane Gas Conversion Kit
69Kit, Conversion Type 1 To Type 3 (MFD)
70Clip, Harness (Rear Bulkhead Area)
86279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
88694421 Whirlpool Screw Assembly
89694538 Whirlpool Bracket
90WP3401850 Whirlpool Wire Harness
91WP694424 Whirlpool Limiter
92WP694423 Whirlpool Regulator
93WP694422 Whirlpool Spring
94WPL 694510
95W10295523 Whirlpool Plug
