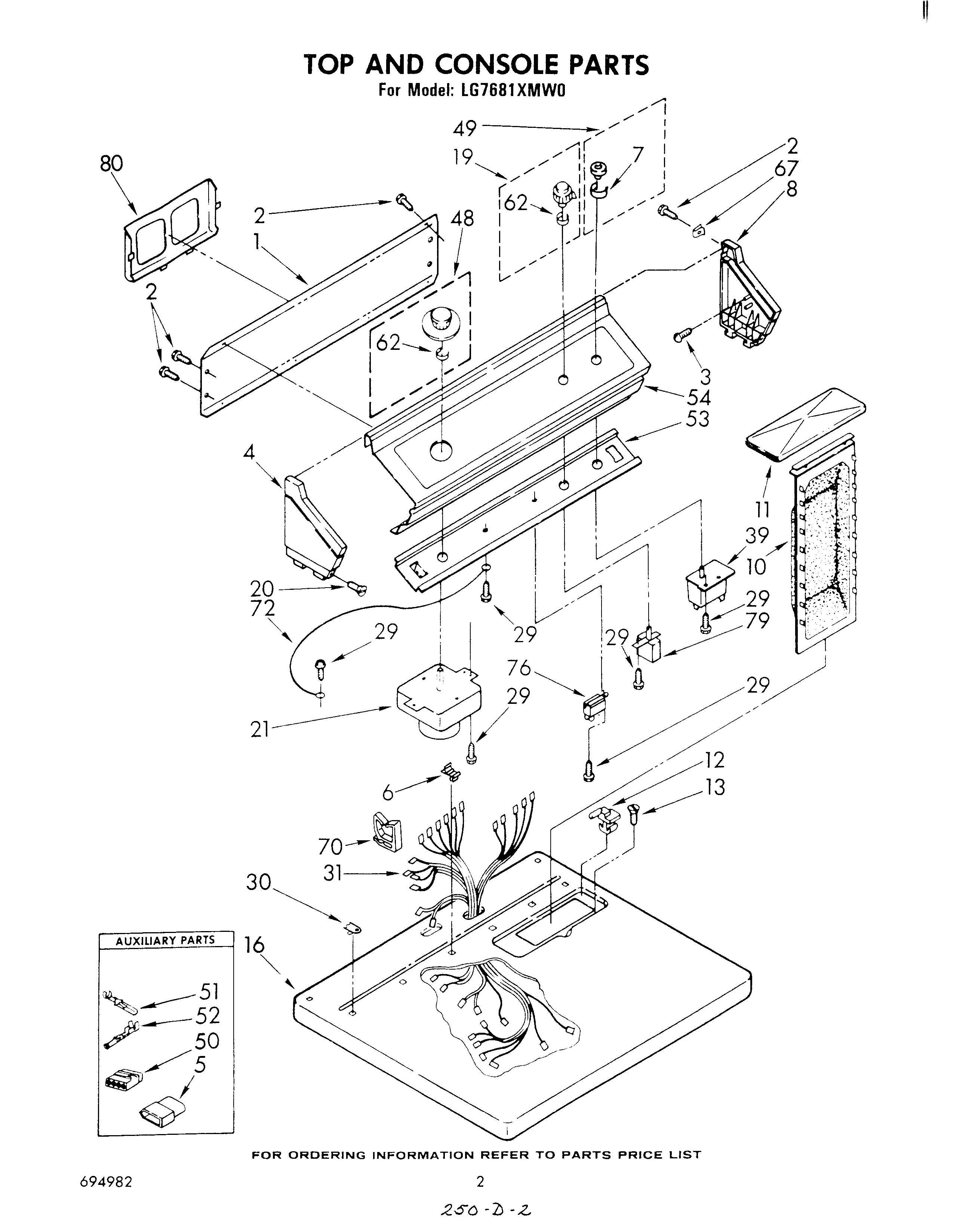

LG7681XMW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG7681XMW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG7681XMW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
799344 Whirlpool Refrigerator Paint
Golden Harvest (Uncut)
Platinum (Uncut)
Enamal, Toast (1 Qt. Uncut)
Almond (Uncut)
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
4Cap, End (L.H.) (White)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Toast)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
5353424 Whirlpool Connector
6Stop, Push-In Top
7Clip
8Cap, End L.H. (Golden Harvest)
8Cap, End (L.H.) (Almond)
8Cap, End L.H. (Toast)
8Cap, End L.H. (White)
8Cap, End L.H. (Platinum)
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Toast)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Almond)
16Top (Platinum)
16Top (Golden Harvest)
16Top (Toast)
16top (white)
19Control Knob Assembly
20Screw, 8-18 x 1 (2)
21Timer Assembly 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Push-To-Start (Alternate)
39Switch, Push-To-Start
39WPL 685067
48Timer Knob Assembly
49Button Assembly
50Connector (Door Switch)
51WP596797 Whirlpool Terminal
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67Nut, Push-In (4)
70Clip, Harness (Rear Bulkhead Area)
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79WPL 695091
80350956 Whirlpool Spray Assembly
80WPL 694344
8072017 Whirlpool Appliance Touch-Up Paint White
80350938 Whirlpool Spray Gun
80WPL 693681
80WP72107 Whirlpool Touchup
80Leveler (Thinner)
80Rack, Literature
80WPL 799351
80WPL 72112
80Paint, Spray (13 Oz.) (Platinum)
80Toast
80WPL 693849
80Golden Harvest
8072113 Whirlpool Touch-Up Paint
80350930 Whirlpool White Spray Paint
8072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
80WPL 694982
