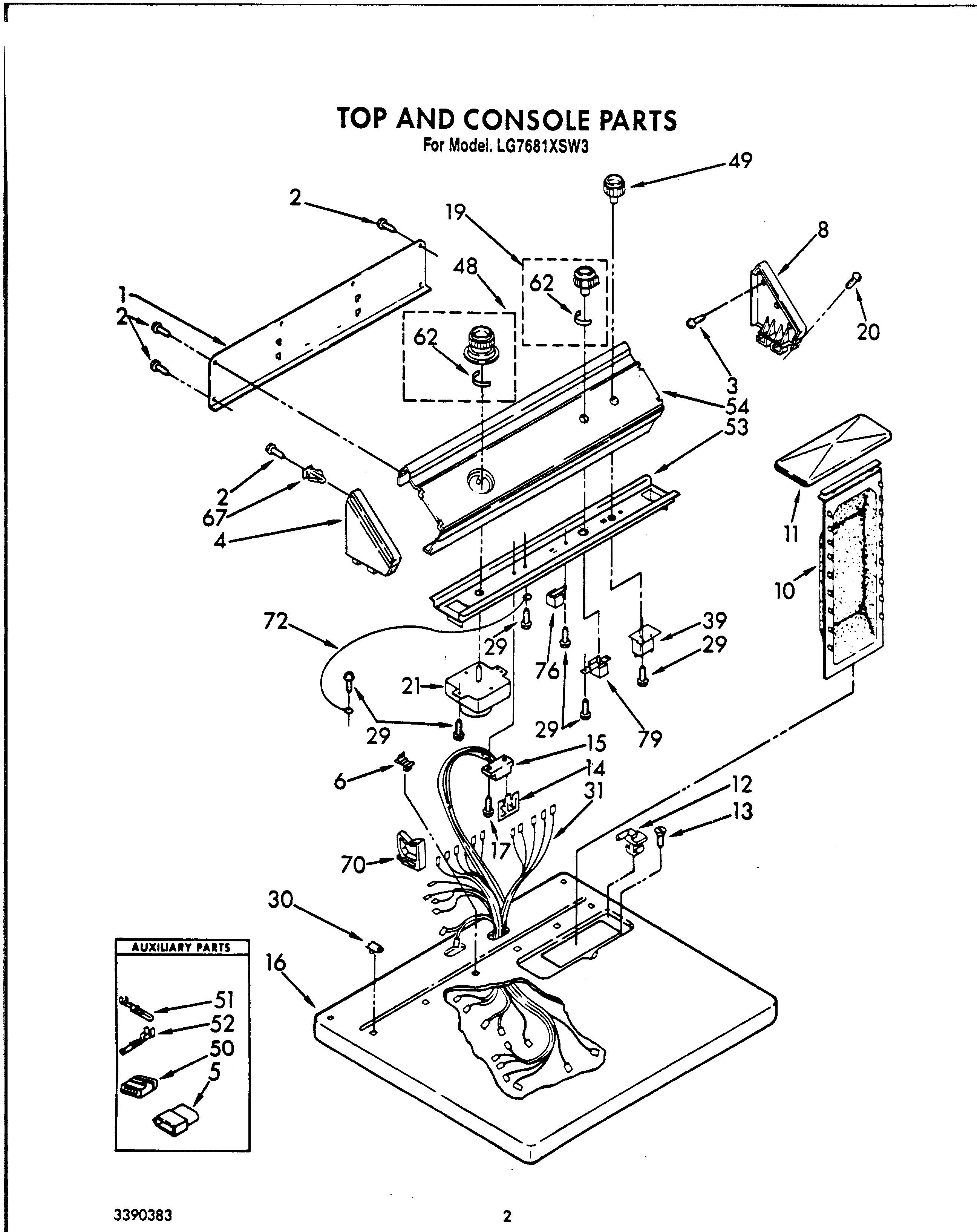

LG7681XSN3 02 – TOP AND CONSOLE, LIT/OPTIONAL

LG7681XSN3 02 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LG7681XSN3 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3390383
	72113 Whirlpool Touch-Up Paint
	Enamal, Toast (1 Qt. Uncut)
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Guide, Dryer
	Platinum (Uncut)
	WPL 72112
	WPL LIT3391344
	WPL LIT3393137
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	350938 Whirlpool Spray Gun
	Almond (Uncut)
	350930 Whirlpool White Spray Paint
1	Panel, Rear
2	WP489069 Whirlpool Compactor Screw
3	WPL 355326
4	Cap, End (L.H.)
5	Receptacle, 3-Way Terminal (Use W/94614)
6	Stop, Push-In Top
8	WPL 63795
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
15	3391885 Whirlpool Connector
16	Top (White)
16	Top (Almond)
17	SCREW
19	Control Knob, Temperature
20	WPL 64211
21	Timer Assembly (60 Hz.)
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
31	Harness, Wiring
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
48	Timer Knob Assembly
49	Knob, Push-To-Start
50	Connector (Door Switch)
51	WP596797 Whirlpool Terminal
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
70	Clip, Harness (Rear Bulkhead Area)
72	Wire, Ground
76	WP694419 Whirlpool Buzzer Adjuster
79	Switch, Temperature (Variable)
