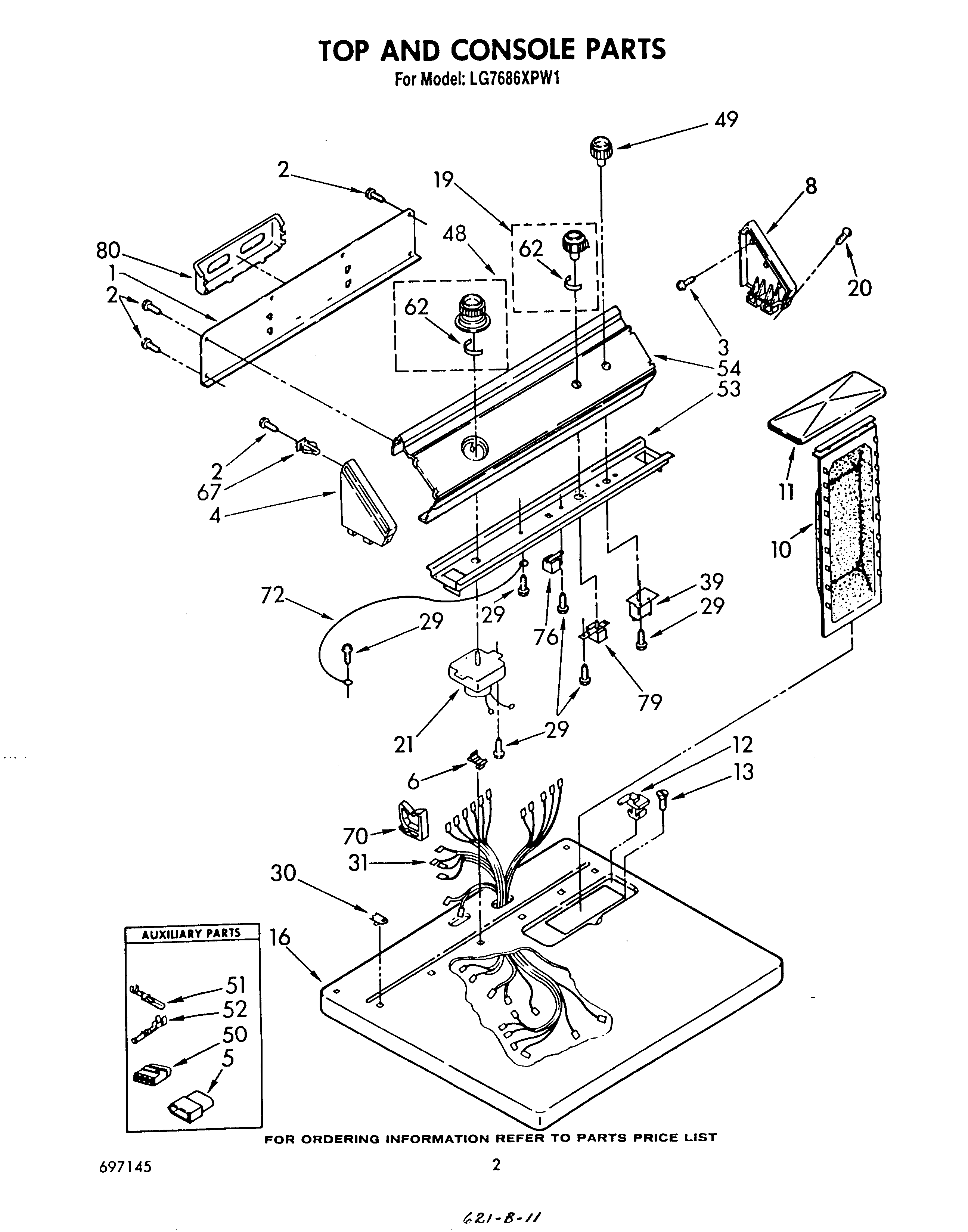

LG7686XPW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG7686XPW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG7686XPW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Golden Harvest (Uncut)
WPL 72112
Platinum (Uncut)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
72113 Whirlpool Touch-Up Paint
Toast
Golden Harvest
Guide, Dryer
WPL LIT696233
WPL LIT3387069
Almond (Uncut)
WPL LIT697145
Leveler (Thinner)
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
WP72107 Whirlpool Touchup
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
1Panel, Rear
2WP489069 Whirlpool Compactor Screw
3WPL 355326
4Cap, End (L.H.)
5353424 Whirlpool Connector
6Stop, Push-In Top
8WPL 63795
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Platinum)
16Top (Golden Harvest)
16Top (White)
16Top (Almond)
16Top (Toast)
19Knob, Water Level
20WPL 64211
21Timer Assembly, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39(Alt.)
39Switch, Push-To-Start (Alternate)
39Switch, Push-To-Start
48Timer Knob Assembly
49Knob, Push To Start
50Connector (Door Switch)
51WP596797 Whirlpool Terminal
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
70Clip, Harness (Rear Bulkhead Area)
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79Switch, Temperature (Variable)
80Rack, Literature
