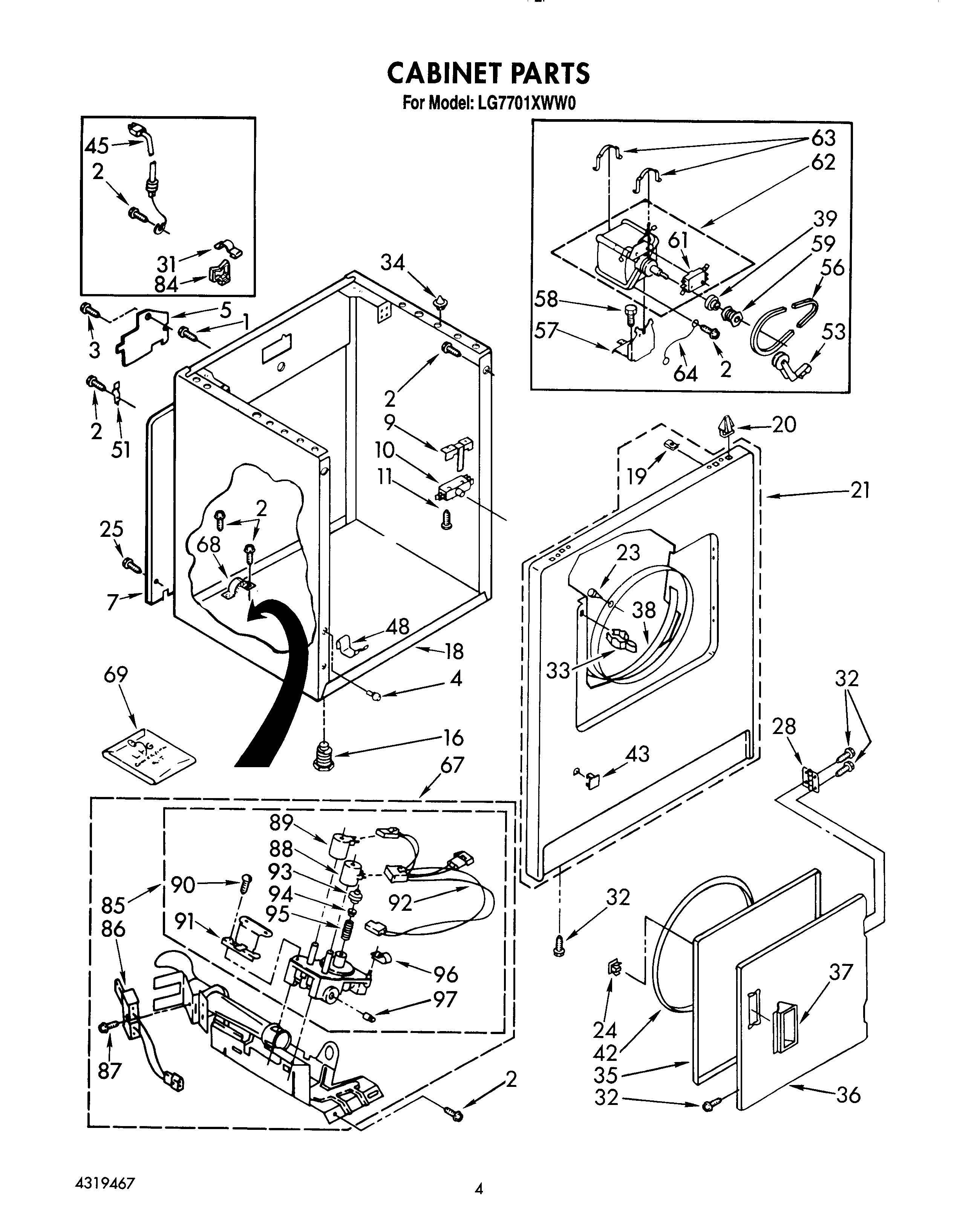

LG7701XWW0 03 – CABINET

LG7701XWW0 03 – CABINET

Written by

in

LG7701XWW0 03 – CABINET

Products

PositionProduct
1W10850756 Whirlpool Screw
3WP308685 Whirlpool Microwave Screw
4238614 Whirlpool Bumper Hinge
5W11736322 Whirlpool Cover Assembly
7Panel, Rear
9WP691581 Whirlpool Actuator
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
1649621 Whirlpool Leveling Feet
18Cabinet (White)
18Cabinet (Almond)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Upper Front Panel (White)
21Upper Front Panel (Almond)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25SCREW
28WPW10362431 Whirlpool Hinge Assembly
318528351 Whirlpool Clip
32WP694091 Whirlpool Screw
34Locator, Top
35Door, Rear
36Door, Front (Almond)
36Door, Front (White)
37WP3405184 Whirlpool White Door Handle
37Handle, Door (Almond)
38279264 Whirlpool Bearing and Seal Kit
39WP3393657 Whirlpool Belt Retainer
42WP3390733 Whirlpool Door Seal Assembly
43Plug, Front Panel (Almond)
43Plug, Front Panel (White)
45W11222083 Whirlpool Power Cord
48W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64Wire, Ground (Motor)
67Burner Assembly 60 Hz. (Alternate) (Refer To Pages For Further Burner Breakdown)
68341029 Whirlpool Clamp
6949572A Whirlpool Dryer Propane Gas Conversion Kit
69Kit, Conversion Type 1 To Type 3 (MFD)
84Clip, Harness (Rear Bulkhead Area)
85279923 Whirlpool Gas Valve
86279311 Whirlpool Dryer Flat Igniter with Bracket
87WPW10366705 Whirlpool Screw
88279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
90694421 Whirlpool Screw Assembly
91694538 Whirlpool Bracket
92WP3401850 Whirlpool Wire Harness
93WP694424 Whirlpool Limiter
94WP694423 Whirlpool Regulator
95WP694422 Whirlpool Spring
96WPL 694510
97W10295523 Whirlpool Plug
