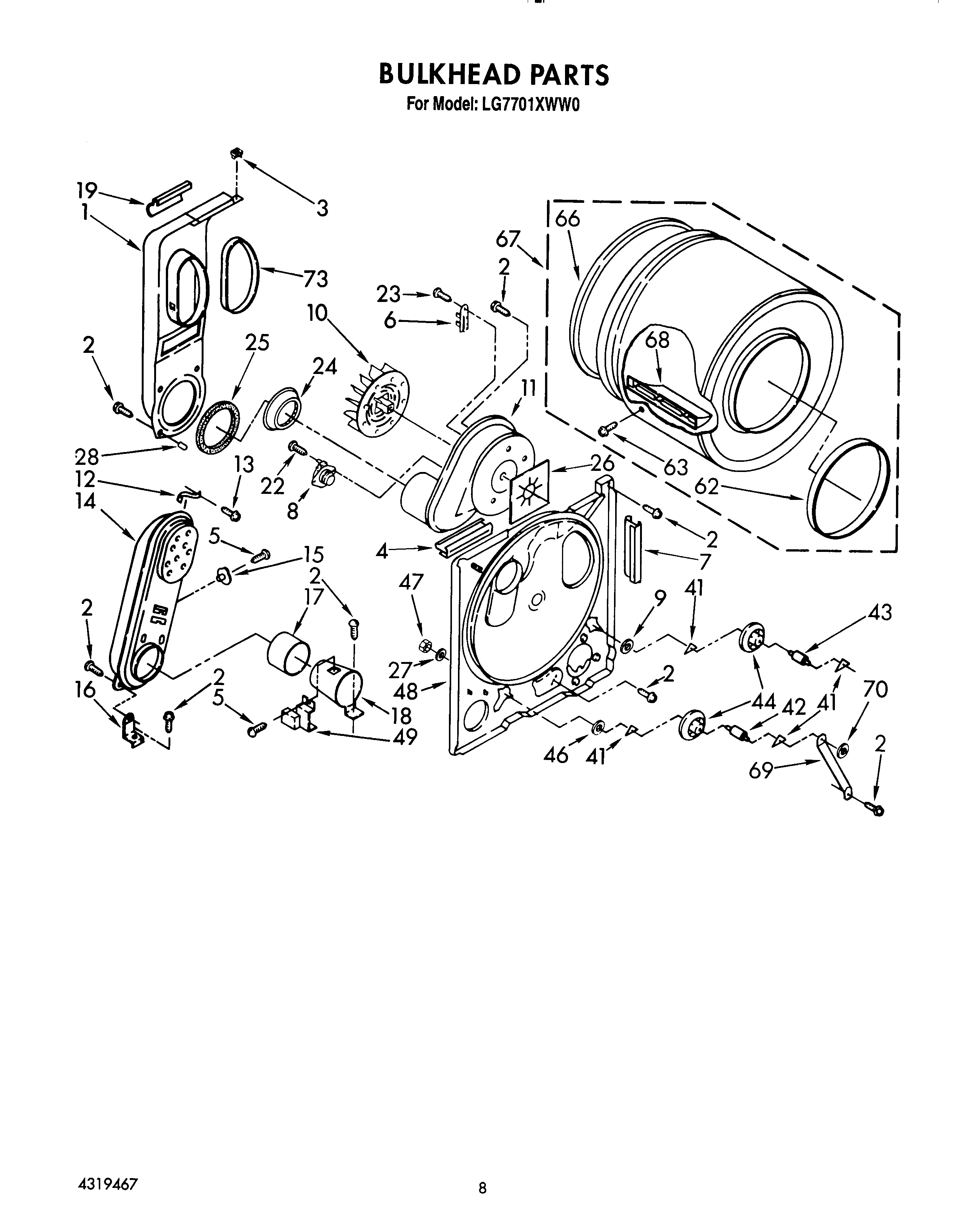

LG7701XWW0 05 – BULKHEAD

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	SCREW
3	98460 Whirlpool Nut
4	686889 Whirlpool Pad
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	WP3388703 Whirlpool Washer
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
15	(Alt.)
15	Thermostat, 205 F (96 C)
15	Thermostat SPST (205)
16	Support, Heater Box
18	279900 Whirlpool Box O/S1
19	686770 Whirlpool Support Bracket
22	WP489069 Whirlpool Compactor Screw
23	WP965173 Whirlpool Dishwasher Screw
24	W11233063 Whirlpool Shield Assembly
25	W11415783 Whirlpool Seal
26	Seal, Blower
27	Washer, Support
28	W10491983 Whirlpool Tine Tip
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	Washer, Support
47	WP358160 Whirlpool Nut
48	Bulkhead
49	WP338906 Whirlpool Dryer Gas Sensor
62	WP3394509 Whirlpool Bearing Ring
63	Screw, 11-16 x 7/8
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	Drum Assembly
68	WP342847 Whirlpool Drum Baffle
69	Bracket, Support Shaft
70	WP90296 Whirlpool Clip
73	SEAL
