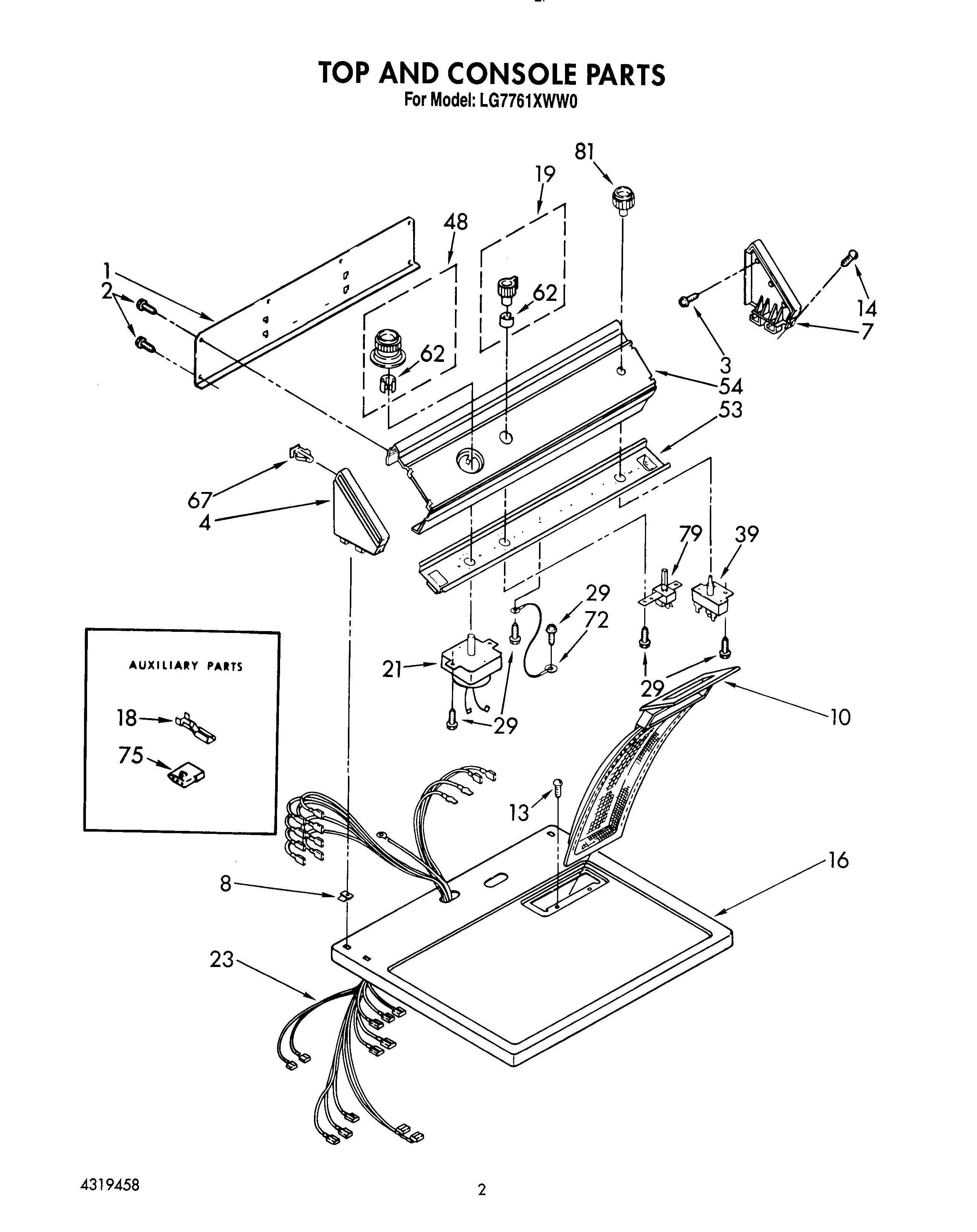

LG7761XWN0 02 – TOP AND CONSOLE, LIT/OPTIONAL

LG7761XWN0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LG7761XWN0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Instructions, Installation
Guide, Dryer
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
List, Service Parts
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
Use & Care Guide
1Panel, Rear
2Screw, 10-16 x 5/16
3WPL 355326
4Cap, End (L.H.)
7WPL 63795
8Nut, Push-In (2)
10WPW10717210 Whirlpool Dryer Lint Screen Filter
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (White)
16Top (Almond)
18WP94614 Whirlpool Terminal
19Control Knob, Temperature
21Timer Assembly, 60 Hz.
23Harness, Wiring
29SCREW
39(Alt.)
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
79Switch, Temperature Selector
81Knob, Push-To-Start
