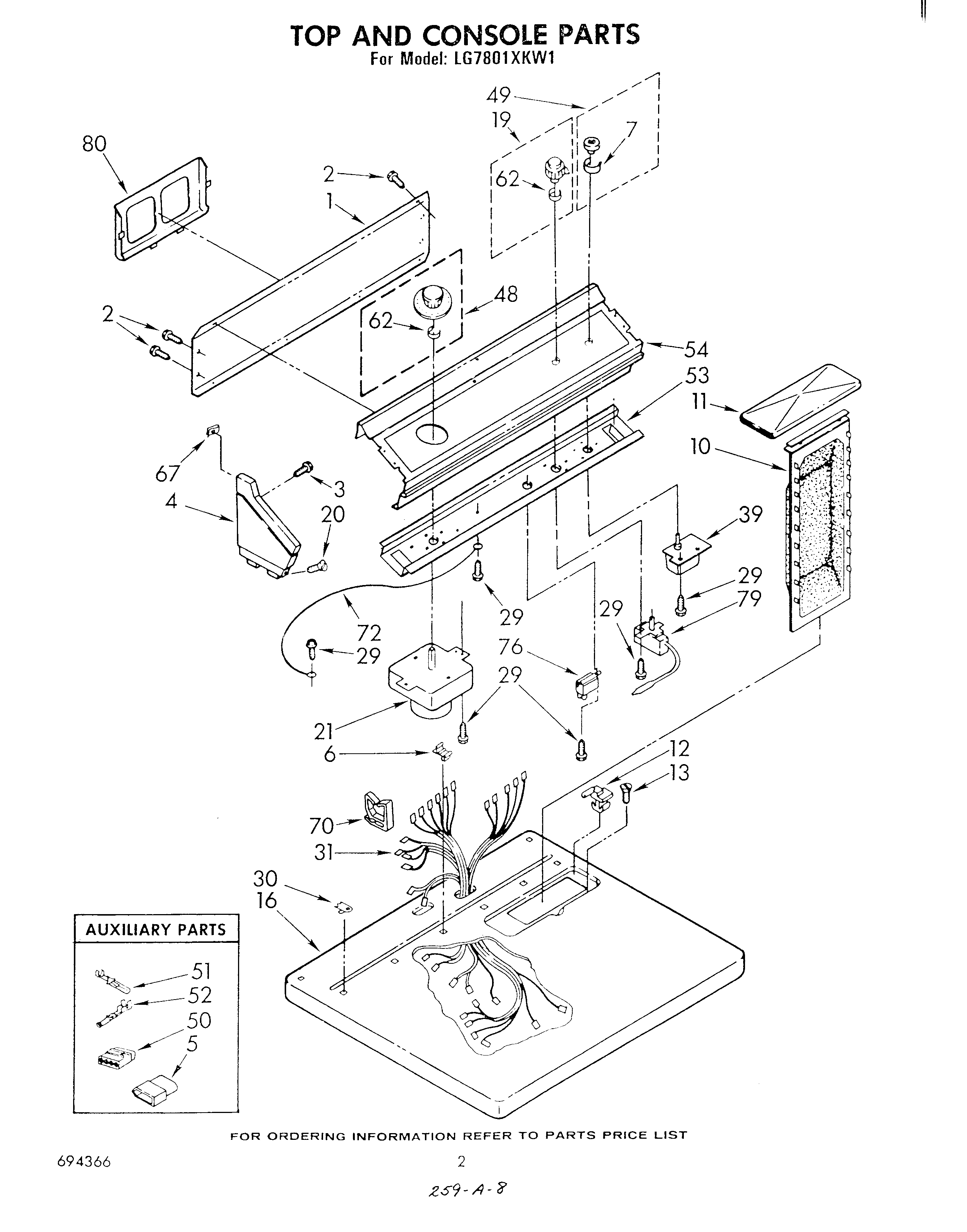

LG7801XKW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Enamel, Coffee (1 Qt. Uncut)
Golden Harvest (Uncut)
Enamel, New Avocado (1 Qt. Uncut)
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4End Cap Assembly, L.H. (Coffee)
4Cap, End (L.H.) (Almond)
4End Cap Assembly, L.H. (New Avocado)
4End Cap Assembly, L.H. (Coffee)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End L.H. (White)
4End Cap Assembly, L.H. (New Avocado)
4Cap, End L.H. (Golden Harvest)
5353424 Whirlpool Connector
6Stop, Push-In Top
7Clip
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Coffee)
11Cover, Lint Screen (New Avocado)
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (New Avocado)
16Top (Coffee)
16top (white)
16Top (Almond)
16Top (Golden Harvest)
19Control Knob Assembly
20Screw, 8-18 x 1 (2)
21Timer Assembly (60 Hz.)
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Relay, Push-To-Start
48Timer Knob Assembly
49Pushbutton Assembly
50Connector (Door Switch)
51WP596797 Whirlpool Terminal
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
70Clip, Harness (Rear Bulkhead Area)
72Wire, Ground
76Buzzer, Mini
79Thermostat, Adjustable
80350956 Whirlpool Spray Assembly
80350938 Whirlpool Spray Gun
80WPL 690721
8072017 Whirlpool Appliance Touch-Up Paint White
80WP72107 Whirlpool Touchup
80Leveler (Thinner)
80Rack, Literature
80WPL 694344
8072109 Whirlpool Dacor Avocado Touch-Up Paint
80WPL 799351
80WPL 693849
80Paint, Spray 13 Oz. (Avocado)
80paint, spray 13 oz. (coffee)
80Paint, Touch-Up 1/2 Oz. (Coffee)
80Golden Harvest
80350930 Whirlpool White Spray Paint
8072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
80WPL 694366
