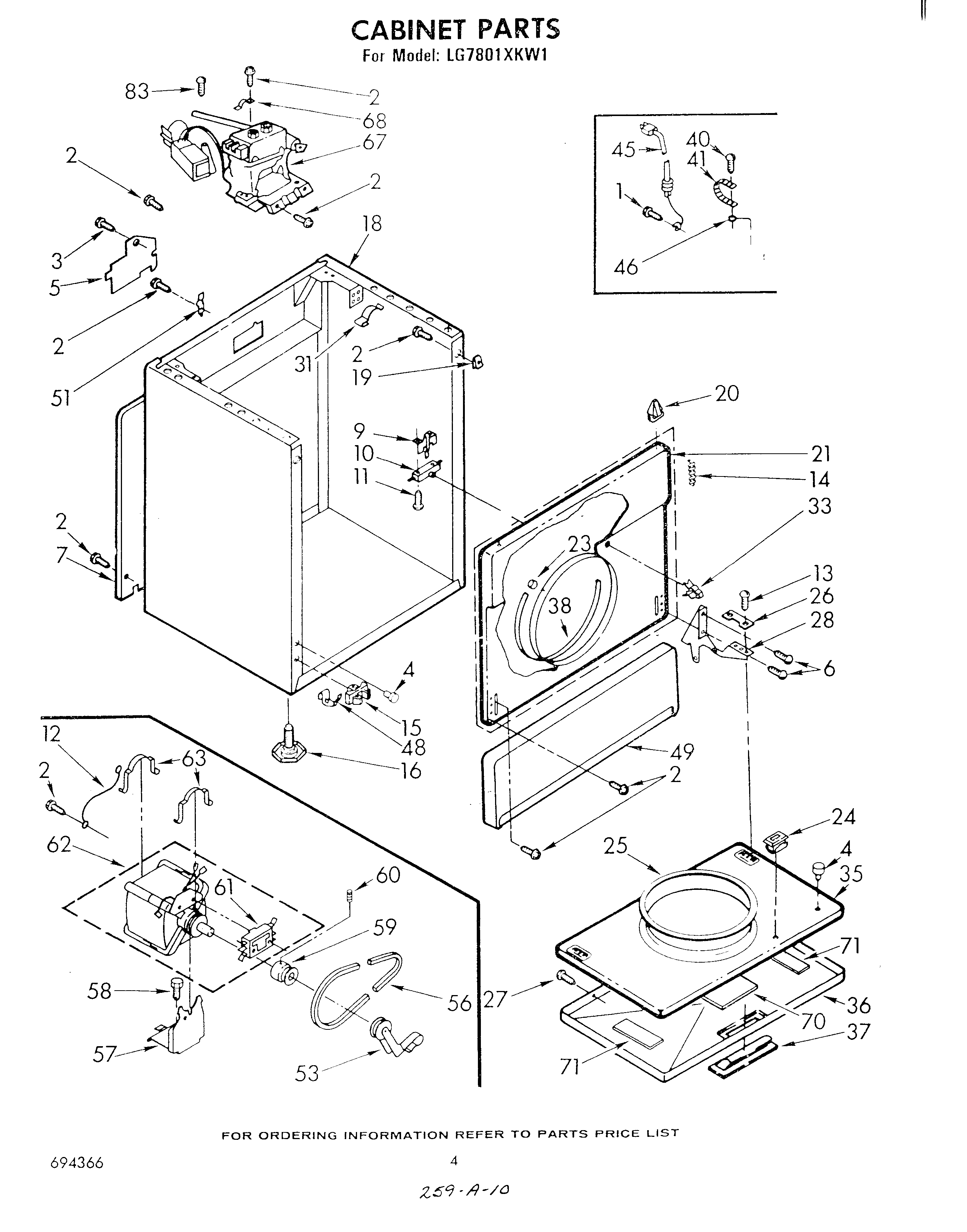

LG7801XKW1 03 – CABINET

LG7801XKW1 03 – CABINET

Written by

in

LG7801XKW1 03 – CABINET

Products

Position	Product
2	SCREW
4	238614 Whirlpool Bumper Hinge
5	W11736322 Whirlpool Cover Assembly
6	Screw, 10-32 x 1/2
7	Panel, Rear
9	WP691581 Whirlpool Actuator
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	Wire, Ground (Motor)
13	WP308685 Whirlpool Microwave Screw
14	Spring, Door (2)
15	Clip, Toe Panel
16	49621 Whirlpool Leveling Feet
18	Cabinet (Harvest Wheat)
18	Cabinet (White)
18	Cabinet (New Avocado)
18	Cabinet (Coffee)
18	Cabinet (Almond)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel Assembly, Upper Front (New Avocado)
21	Panel Assembly, Upper Front (Coffee)
21	Front Panel Assembly (New Gold)
21	Front Panel Assembly (White)
21	Front Panel Assembly (Almond)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	WP3390733 Whirlpool Door Seal Assembly
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	Hinge, L.H.
28	Hinge, R.H.
31	8528351 Whirlpool Clip
35	Door, Rear (Coffee)
35	Door, Panel (Almond)
35	Door, Panel (White)
35	Door, Rear (New Avocado)
35	Door, Panel (Golden Harvest)
36	Door, Front (New Avocado)
36	Door, Front (Coffee)
36	Door, Front (Almond)
36	Door, Front (White)
36	Door, Front (Golden Harvest)
37	Handle, Door (Coffee)
37	Handle (Golden Harvest)
37	WP348721 Whirlpool Handle
37	Handle (Almond)
38	279264 Whirlpool Bearing and Seal Kit
40	Screw, Ground (10-24 x 1)
41	Strap, Ground
45	W11222083 Whirlpool Power Cord
46	WPL 364089
48	WP297092 Whirlpool Clip
49	Panel, Toe (New Avoca
49	Panel, Toe (Golden Harvest)
49	Panel, Toe (Almond)
49	Panel, Toe (White)
49	WPL 689538
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WPL 348946
60	SCREW, SET
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	WPL 688639
67	WPL 688637
67	W10402145 Whirlpool LP Gas Connection
67	Kit, Conversion Type 1 To Type 3 (MFD)
68	341029 Whirlpool Clamp
70	WPL 691207
71	WPL 691525
71	WPL 691206
83	WPL 343826
