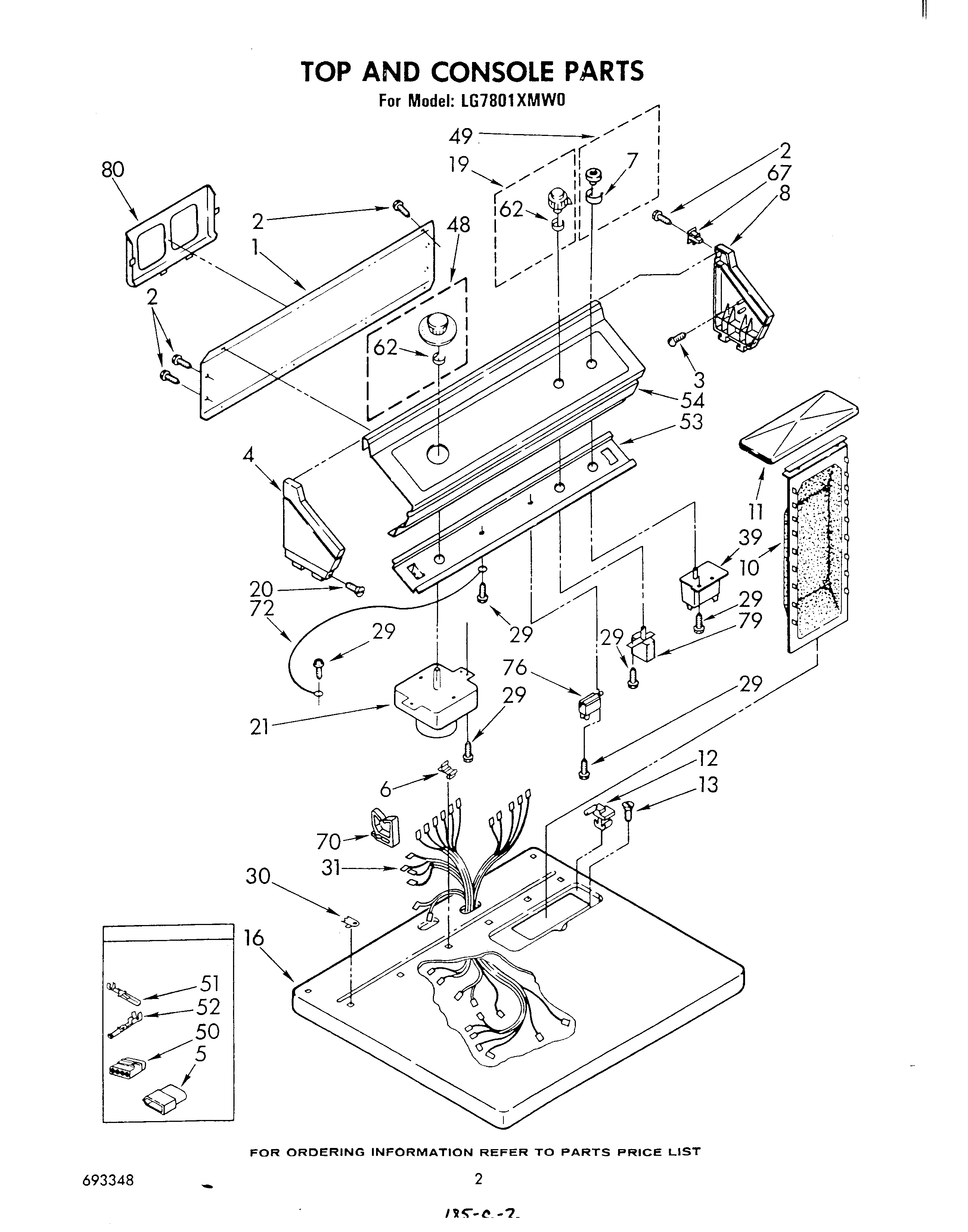

LG7801XMW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG7801XMW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG7801XMW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Almond (Uncut)
Enamel, Coffee (1 Qt. Uncut)
Golden Harvest (Uncut)
799344 Whirlpool Refrigerator Paint
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End (L.H.) (White)
4Cap, End L.H. (Almond Cap, End R.H.)
4End Cap Assembly, L.H. (Coffee)
5353424 Whirlpool Connector
6Stop, Push-In Top
7Clip
8Cap, End L.H. (Golden Harvest)
8Cap, End (L.H.) (Almond)
8Cap, End L.H. (White)
8End Cap Assembly, L.H. (Coffee)
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Coffee)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16top (white)
16Top (Coffee)
16Top (Almond)
16Top (Golden Harvest)
19Control Knob Assembly
20Screw, 8-18 x 1 (2)
21Timer Assembly (60 Hz.) (3 Cy)
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Relay, Push-To-Start
48Timer Knob Assembly
49Pushbutton Assembly
50Connector (Door Switch)
51WP596797 Whirlpool Terminal
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
70Clip, Harness (Rear Bulkhead Area)
72Wire, Ground
76Buzzer, Mini
79Switch, Fabric Selector Temperature
8072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
80WPL 691270
80Rack, Literature
80WPL 799351
80350938 Whirlpool Spray Gun
80350956 Whirlpool Spray Assembly
8072017 Whirlpool Appliance Touch-Up Paint White
80350930 Whirlpool White Spray Paint
80WP72107 Whirlpool Touchup
80Leveler (Thinner)
80Instructions,
80paint, spray 13 oz. (coffee)
80Paint, Touch-Up 1/2 Oz. (Coffee)
80WPL 693849
80Golden Harvest
80WPL 693348
