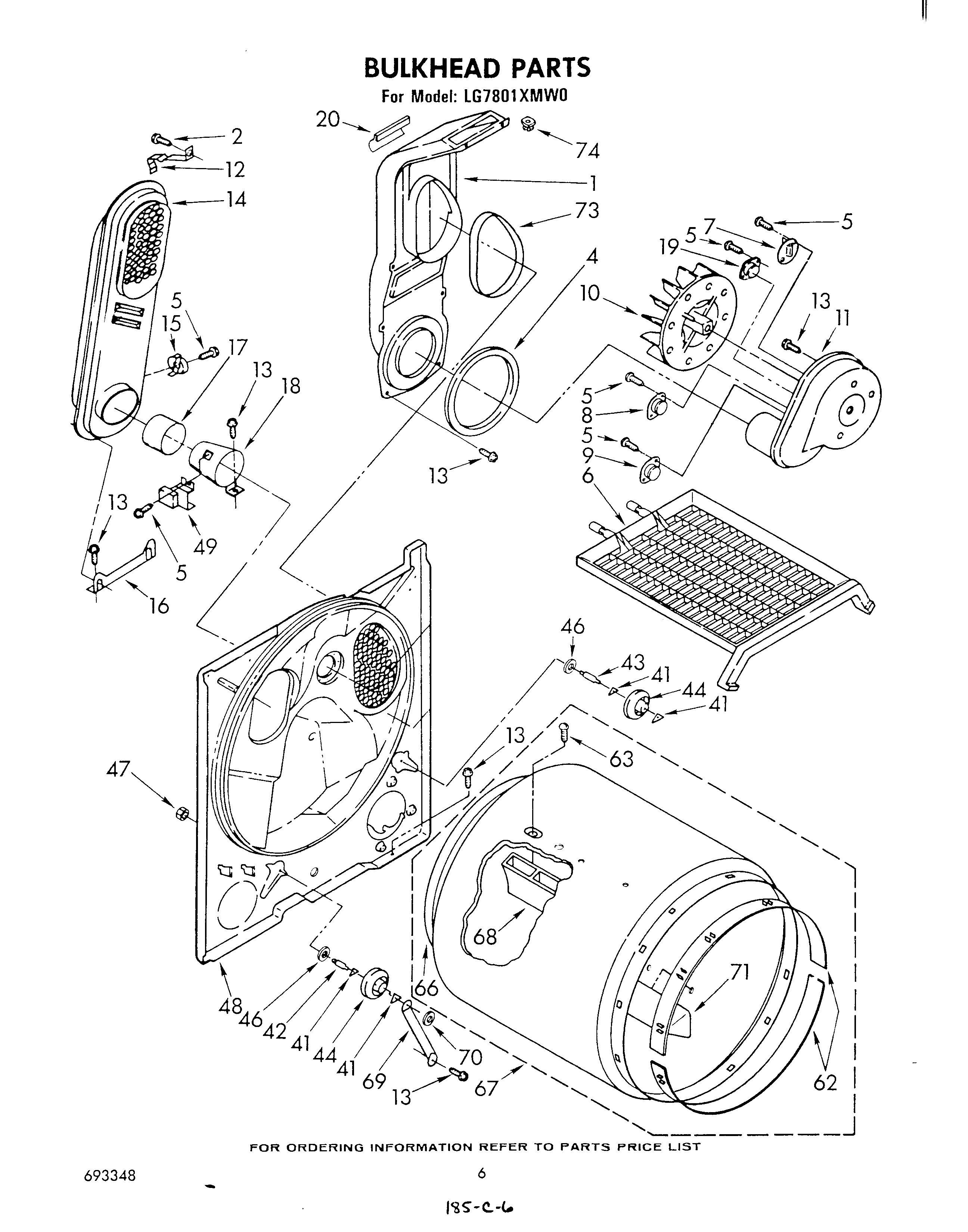

LG7801XMW0 04 – BULKHEAD

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6Rack, Dry
7WP3390719 Whirlpool Dryer Thermal Fuse
8WP694674 Whirlpool Cycling Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
15Thermostat, 205 F (96 C)
15Thermostat SPST (205)
15(Alt.)
16Support, Heater Box
18279900 Whirlpool Box O/S1
20686770 Whirlpool Support Bracket
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48W11178667 Whirlpool Bulkhead Assembly
49WP338906 Whirlpool Dryer Gas Sensor
62279441 Whirlpool Front Bearing Ring
63Screw, 11-16 x 7/8
66279408 Whirlpool Dryer Rear Drum Seal
67Drum Assembly
68BAFFLE-DRM
69W11684613 Whirlpool Bracket
70WP90296 Whirlpool Clip
71WP3403636 Whirlpool Drum Baffle
73SEAL
7498460 Whirlpool Nut
