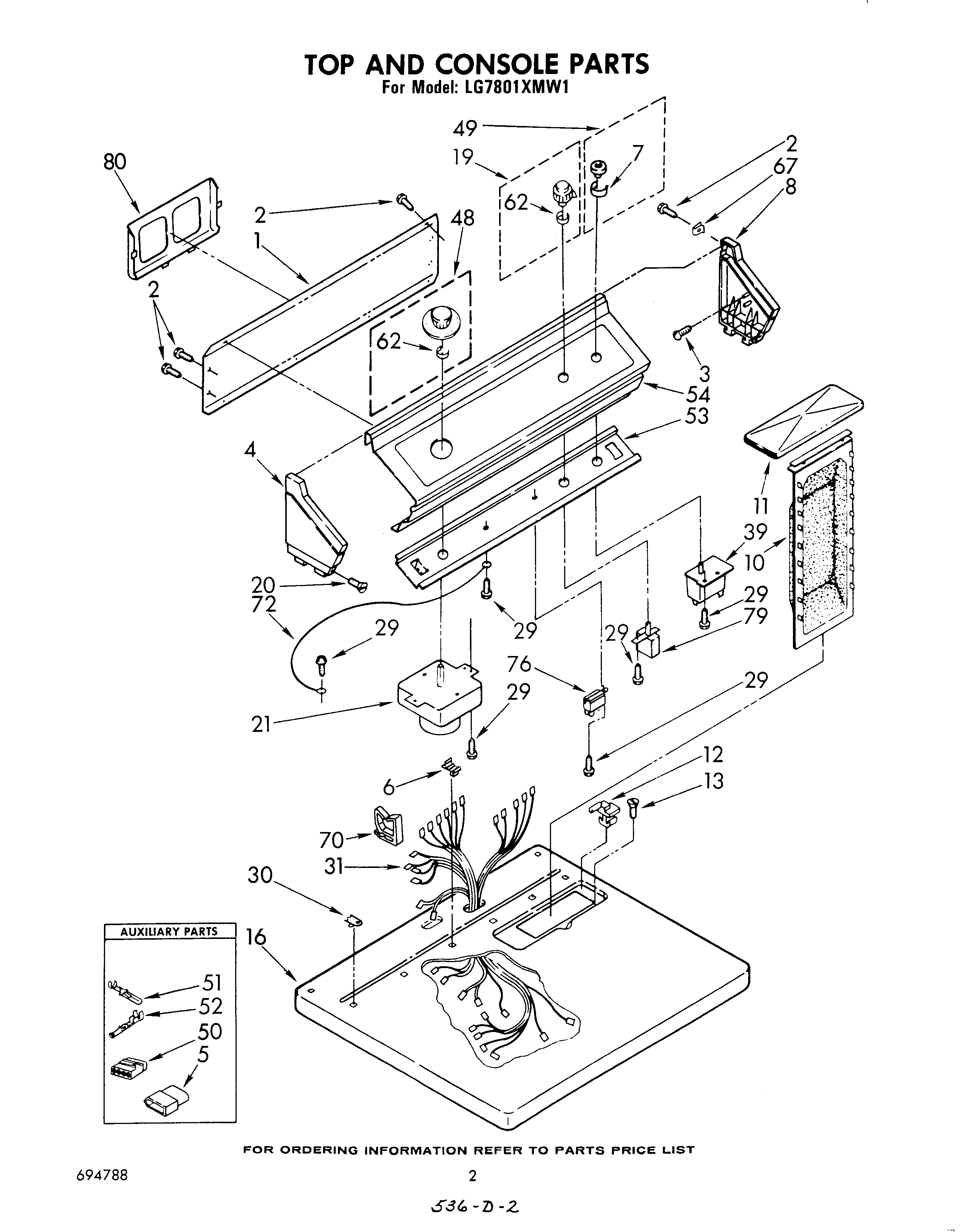

LG7801XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG7801XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG7801XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Platinum (Uncut)
Enamal, Toast (1 Qt. Uncut)
Golden Harvest (Uncut)
799344 Whirlpool Refrigerator Paint
Enamel, Coffee (1 Qt. Uncut)
Almond (Uncut)
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
4Cap, End (L.H.) (Toast)
4End Cap Assembly, L.H. (New Avocado)
4End Cap Assembly, L.H. (Coffee)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
5353424 Whirlpool Connector
6Stop, Push-In Top
7Clip
8End Cap Assembly, L.H. (Coffee)
8Cap, End L.H. (Golden Harvest)
8Cap, End (L.H.) (Almond)
8End Cap Assembly, L.H. (New Avocado)
8Cap, End L.H. (White)
8Cap, End L.H. (Toast)
8Cap, End L.H. (Platinum)
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Coffee)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (New Avocado)
11Cover, Lint Screen (Golden Harvest)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Toast)
16top (white)
16Top (Golden Harvest)
16Top (New Avocado)
16Top (Platinum)
16Top (Coffee)
16Top (Almond)
19Control Knob Assembly
20Screw, 8-18 x 1 (2)
21Timer Assembly (60 Hz.) (3 Cy)
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Relay, Push-To-Start
48Timer Knob Assembly
49Pushbutton Assembly
50Connector (Door Switch)
51WP596797 Whirlpool Terminal
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67Clip (4)
70Clip, Harness (Rear Bulkhead Area)
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79Switch, Fabric Selector Temperature
8072109 Whirlpool Dacor Avocado Touch-Up Paint
8072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
80Leveler (Thinner)
80WP72107 Whirlpool Touchup
80WPL 694344
8072017 Whirlpool Appliance Touch-Up Paint White
80350956 Whirlpool Spray Assembly
80350938 Whirlpool Spray Gun
80WPL 691270
8072113 Whirlpool Touch-Up Paint
80350930 Whirlpool White Spray Paint
80Golden Harvest
80WPL 693849
80Rack, Literature
80WPL 799351
80Enamel, New Avocado (1 Qt. Uncut)
80Paint, Spray 13 Oz. (Avocado)
80paint, spray 13 oz. (coffee)
80Paint, Touch-Up 1/2 Oz. (Coffee)
80WPL 72112
80Paint, Spray (13 Oz.) (Platinum)
80Toast
80WPL 694788
