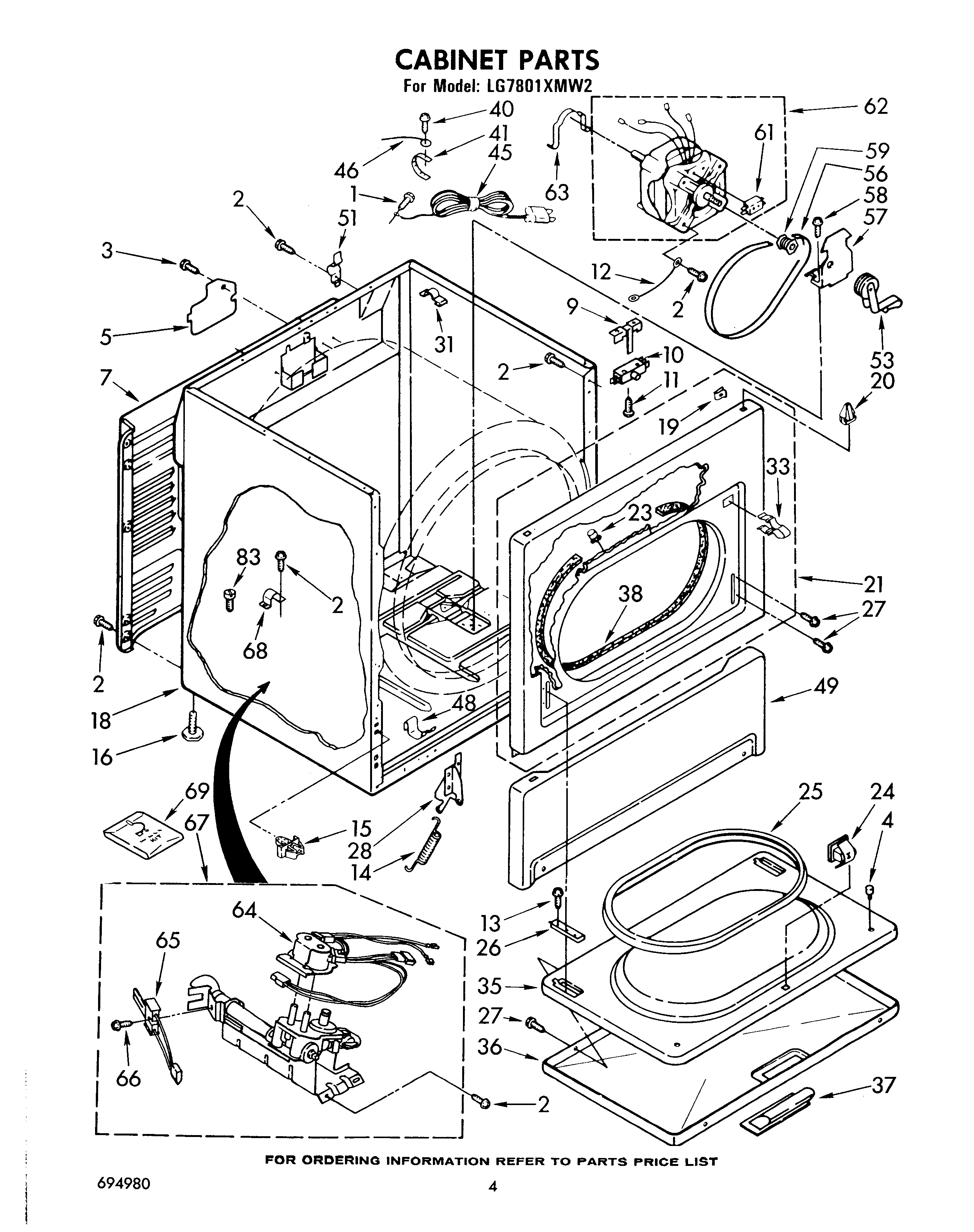

LG7801XMW2 03 – CABINET

LG7801XMW2 03 – CABINET

Written by

in

LG7801XMW2 03 – CABINET

Products

Position	Product
2	SCREW
4	238614 Whirlpool Bumper Hinge
5	W11736322 Whirlpool Cover Assembly
7	Panel, Rear
9	WP691581 Whirlpool Actuator
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	Wire, Ground (Motor)
13	WP308685 Whirlpool Microwave Screw
14	WPW10041960 Whirlpool Door Spring
15	Clip, Toe Panel
16	49621 Whirlpool Leveling Feet
18	cabinet (toast)
18	Cabinet (Harvest Wheat)
18	Cabinet (Platinum)
18	Cabinet (White)
18	Cabinet (Almond)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	279740 Whirlpool Panel Primary with O/S2
21	Panel Front (Almond)
21	Panel Front (Golden Harvest)
21	Panel Front (Platinum)
21	Panel Front (Toast)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	W10906683 Whirlpool Door Seal
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	WP8066057 Whirlpool Door Hinge
28	WP8066056 Whirlpool Door Hinge
31	8528351 Whirlpool Clip
35	WP695737 Whirlpool Door
36	Door, Front (Platinum)
36	Door, Front (Almond)
36	door, front (harvest wheat)
36	WP3393549 Whirlpool Door Assembly
36	door, front (toast)
37	WPL 695017
37	WP348721 Whirlpool Handle
37	Handle (Golden Harvest)
37	Handle (Almond)
37	WPL 695016
38	W11035878 Whirlpool Bearing and Seal
40	Screw, Ground (10-24 x 1)
41	Strap, Ground
45	W11222083 Whirlpool Power Cord
46	WPL 364089
48	WP297092 Whirlpool Clip
49	Panel, Toe (Almond)
49	Panel, Toe (Toast)
49	Panel, Toe (Platinum)
49	Toe Panel (Golden Harvest)
49	Panel, Toe (White)
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	W10837625 Whirlpool Dryer Motor Pulley
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
64	279923 Whirlpool Gas Valve
65	279311 Whirlpool Dryer Flat Igniter with Bracket
66	WPW10366705 Whirlpool Screw
67	Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
68	341029 Whirlpool Clamp
69	Kit, Conversion Type 1 To Type 3 (MFD)
69	49572A Whirlpool Dryer Propane Gas Conversion Kit
83	WPL 343826
