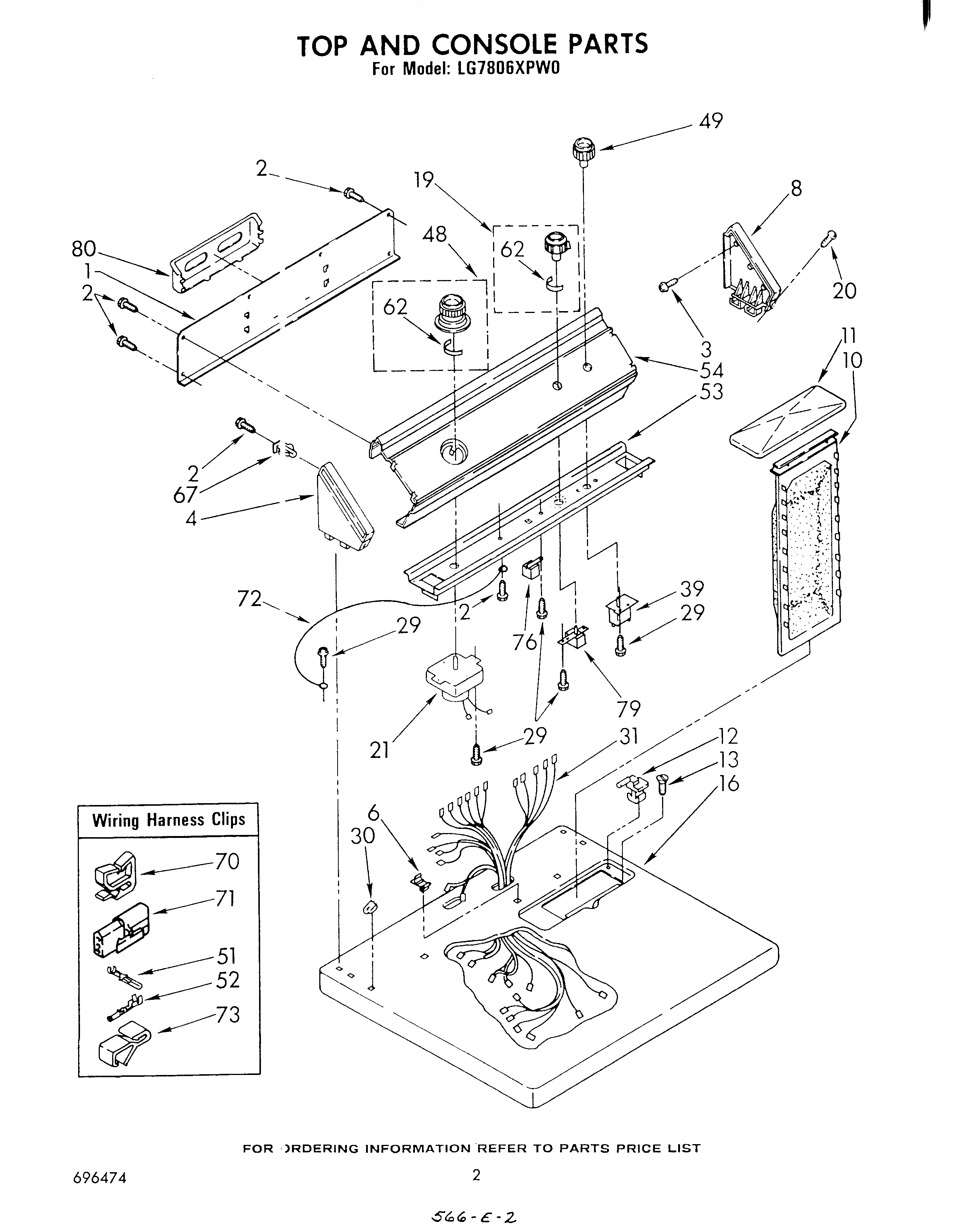

LG7806XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT696474
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
WPL LIT696210
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT677971
WPL LIT677967
Washer (Belt Drive)
Guide, Dryer
WPL LIT696233
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Dryer
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
Leveler (Thinner)
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
350930 Whirlpool White Spray Paint
WP72107 Whirlpool Touchup
72017 Whirlpool Appliance Touch-Up Paint White
1Panel, Rear
2WP489069 Whirlpool Compactor Screw
3WPL 355326
4Cap, End (L.H.)
6Stop, Push-In Top
8WPL 63795
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Golden Harvest)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (White)
16Top (Almond)
16Top (Golden Harvest)
16Top (Toast)
16Top (Platinum)
19Knob, Water Level
20WPL 64211
21Timer Assembly (60 Hz.)
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Relay, Push-To-Start
48Timer Knob Assembly
49Knob, Push To Start
51WP596797 Whirlpool Terminal
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
70Clip, Harness (Rear Bulkhead Area)
71Receptacle, 3-Way Terminal (Use W/94614)
72Wire, Ground
73Clip, Retainer
76WP694419 Whirlpool Buzzer Adjuster
79WPL 695091
80Rack, Literature
