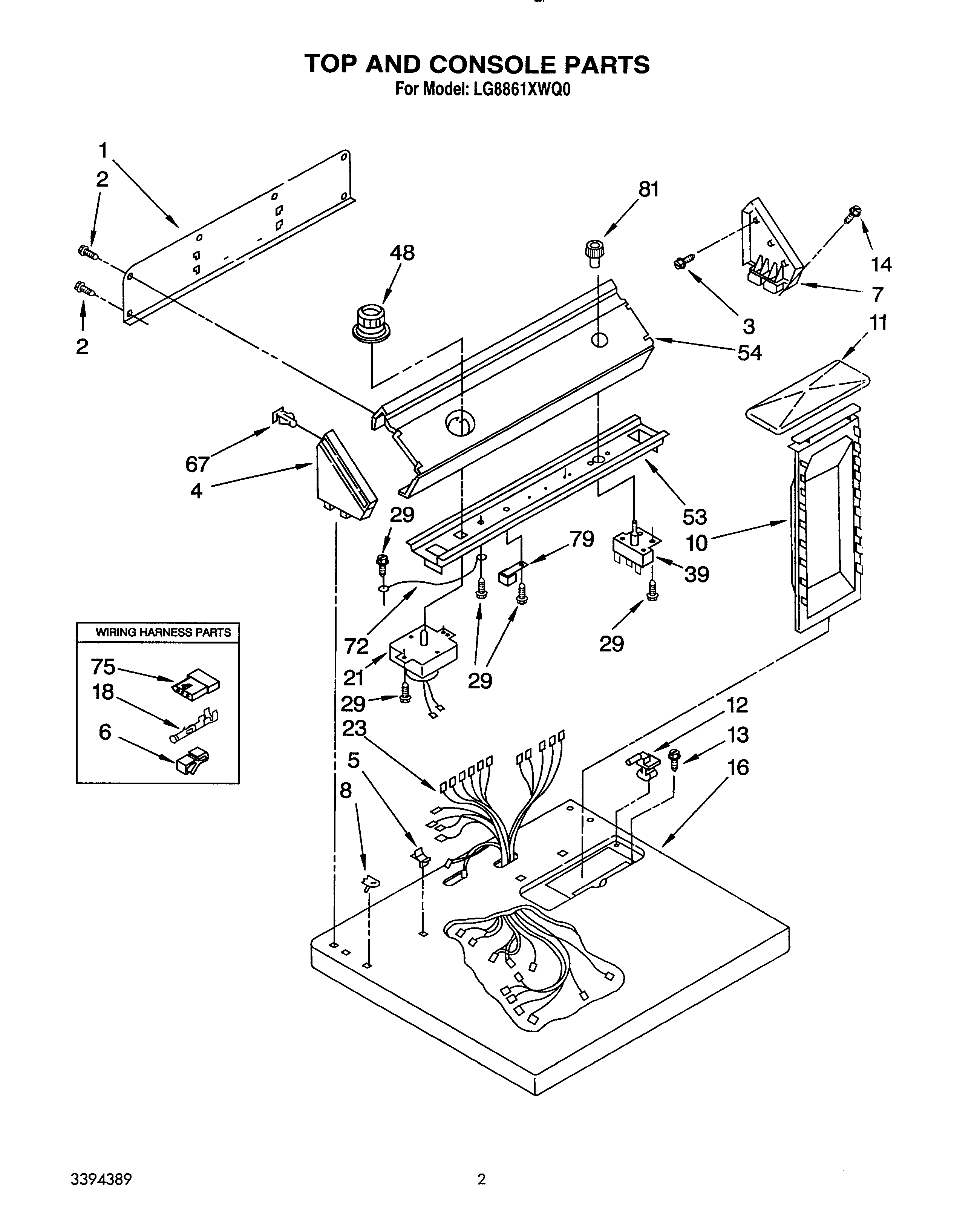

LG8861XWQ0 02 – TOP AND CONSOLE, LIT/OPTIONAL

LG8861XWQ0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LG8861XWQ0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
List, Service Parts
Guide, Dryer
Instructions, Installation
Use & Care Guide
Leveler (Thinner)
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
799344 Whirlpool Refrigerator Paint
1Panel, Rear
2WP489069 Whirlpool Compactor Screw
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
6Clip, Retainer
7Cap, End (R.H.)
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
16Top (White)
18WP94614 Whirlpool Terminal
21Timer Assembly, 60 Hz.
23Harness, Wiring
29WP3390631 Whirlpool Screw
39Switch, Push-To-Start (Alternate)
39(Alt.)
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
67WP689559 Whirlpool Nut
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
79WP694419 Whirlpool Buzzer Adjuster
81Knob, Push-To-Start
