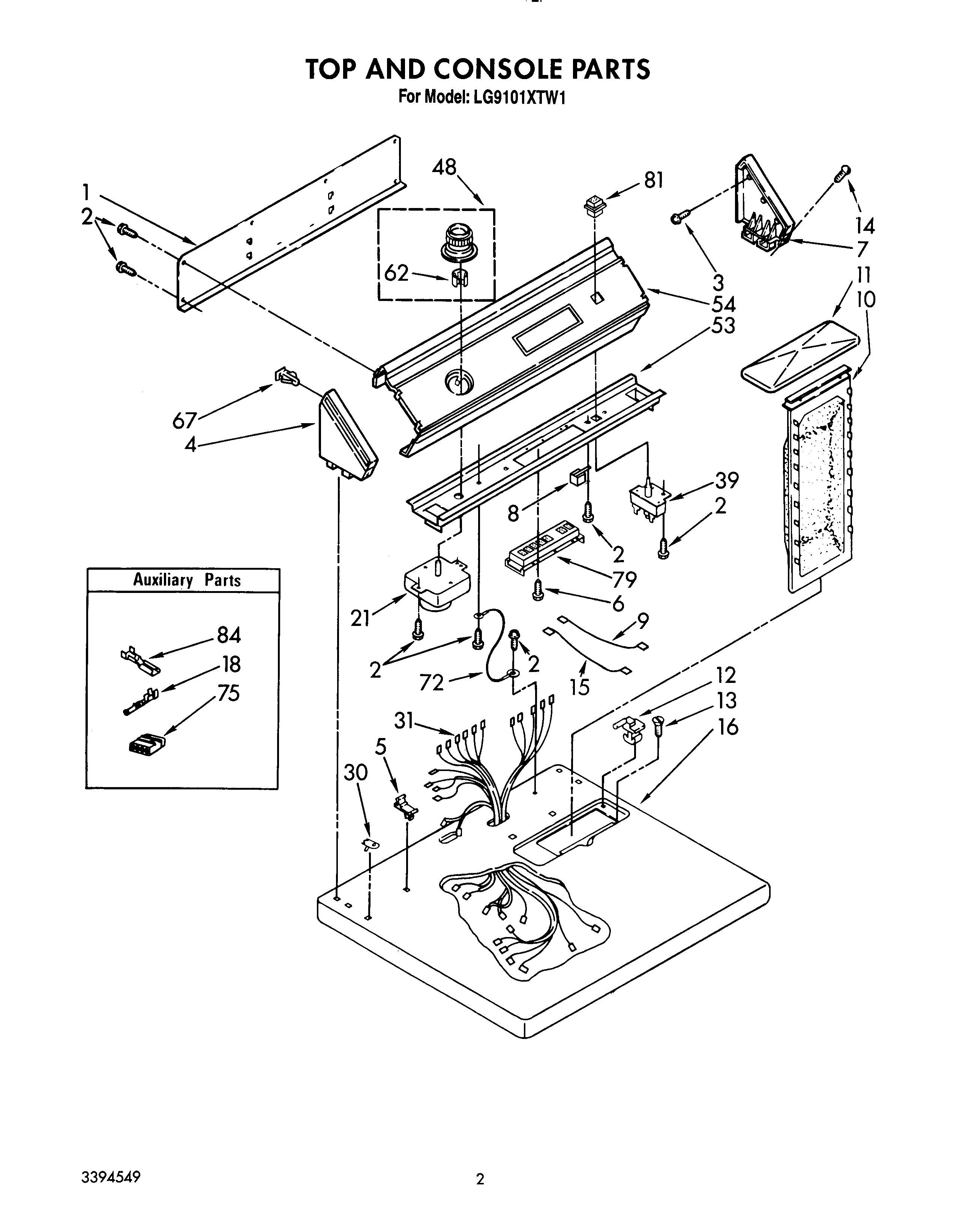

LG9101XTW1 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation
	List, Service Parts
	Guide, Dryer
	Washer (Belt Drive)
	Use & Care Guide
	Dryer
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	Stop, Push-In Top
6	WP273556 Whirlpool Screw
7	WPL 63795
8	WP694419 Whirlpool Buzzer Adjuster
9	Wire, Jumper (Violet)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
15	Wire, Jumper (Blue)
16	Top (White)
16	Top (Almond)
18	WP94614 Whirlpool Terminal
21	WP3394762 Whirlpool Timer
30	Nut, Push-In (2)
31	Harness, Wiring
39	Relay, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
79	Switch, Clean Touch
81	Knob, Push To Start
84	WP596797 Whirlpool Terminal
