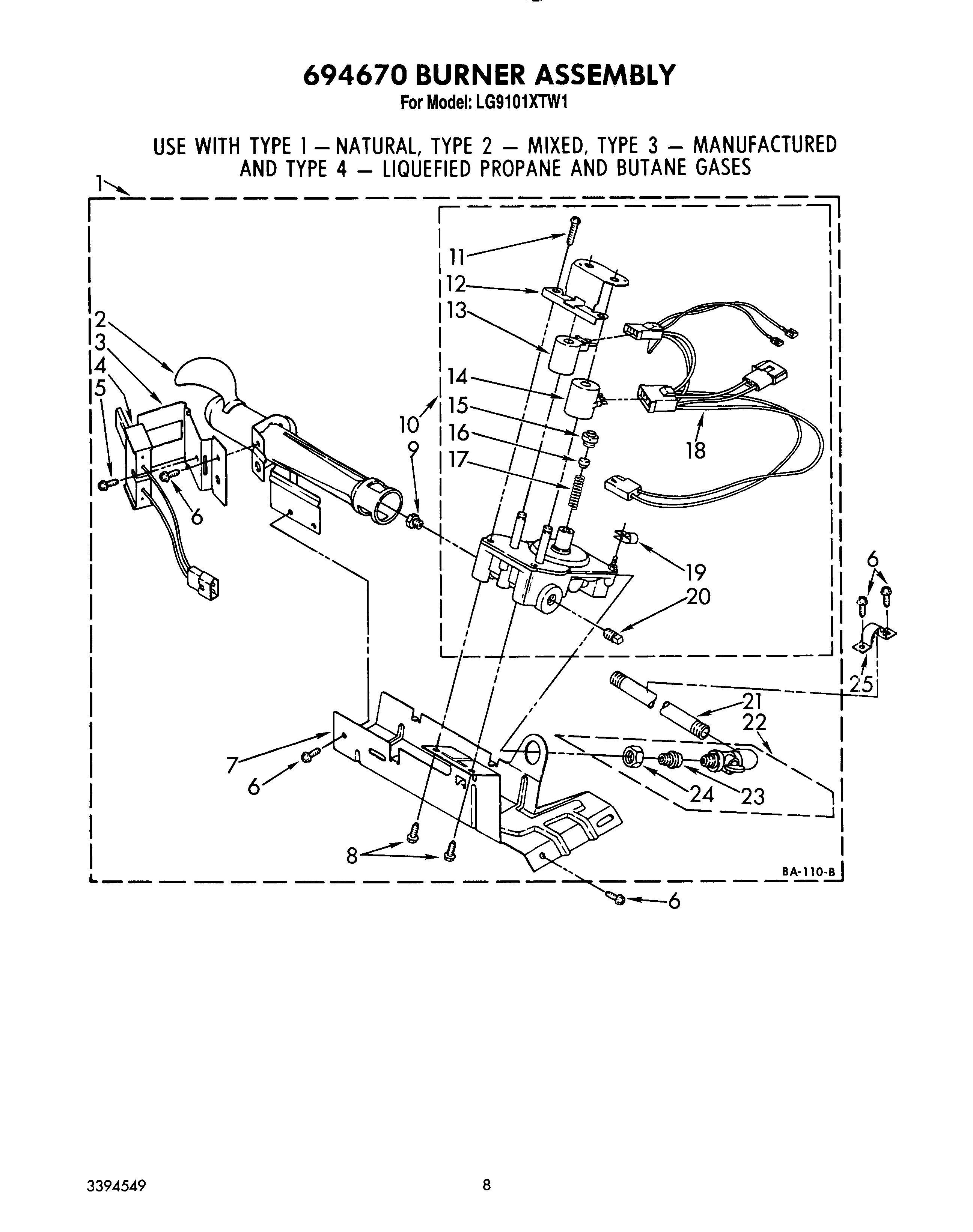

LG9101XTW1 05 – BURNER ASSEMBLYadmin2025-04-26T11:16:29+00:00LG9101XTW1 05 – BURNER ASSEMBLY ProductsPositionProduct1Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)2WP693140 Whirlpool Burner3WP694298 Whirlpool Bracket4279311 Whirlpool Dryer Flat Igniter with Bracket5WPW10366705 Whirlpool Screw6SCREW7Base, Burner8WP90767 Whirlpool Screw9Orifice, Burner (Type 2)9WP234826 Whirlpool Gas Orifice9Orifice, Burner (Type 3)9WP234868 Whirlpool Gas Orifice9WP229742 Whirlpool Gas Orifice10279923 Whirlpool Gas Valve11694421 Whirlpool Screw Assembly12694538 Whirlpool Bracket14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit15WP694424 Whirlpool Limiter16WP694423 Whirlpool Regulator17WP694422 Whirlpool Spring18WP3401850 Whirlpool Wire Harness19WPL 69451020W10295523 Whirlpool Plug21Pipe, Gas Supply22Valve & Union, Shut-Off233393767 Whirlpool Pipe24Nut, Compression2549572A Whirlpool Dryer Propane Gas Conversion Kit25341029 Whirlpool Clamp25Kit, Conversion Type 1 To Type 3 (MFD)
