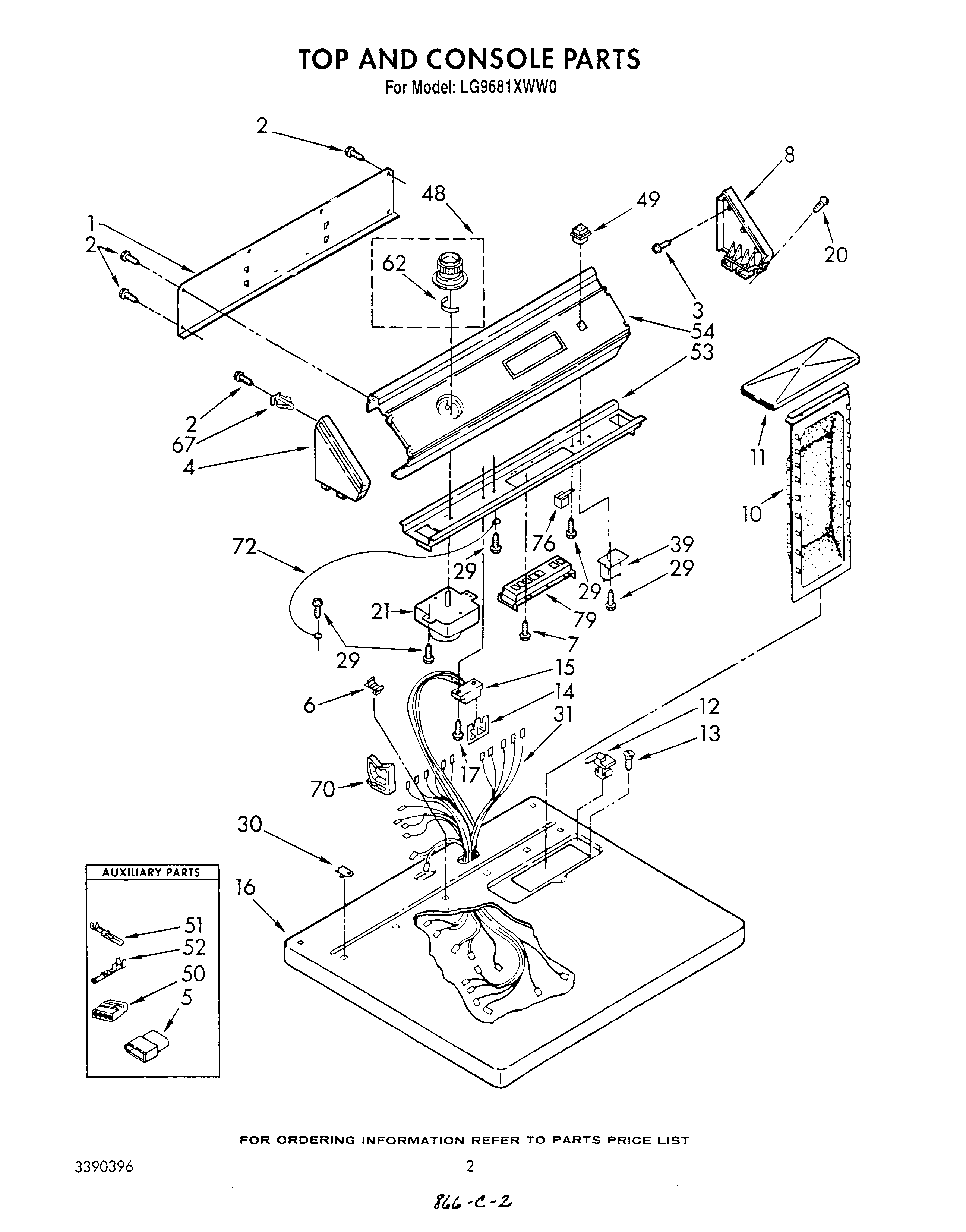

LG9681XWW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT3393137
	WPL LIT3391357
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	List, Service Parts
	Guide, Dryer
1	Panel, Rear
2	WP489069 Whirlpool Compactor Screw
3	WPL 355326
4	Cap, End (L.H.)
5	Receptacle, 3-Way Terminal (Use W/94614)
6	Stop, Push-In Top
7	WP273556 Whirlpool Screw
8	WPL 63795
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Control, Electronic
15	Connector
16	Top (White)
16	Top (Almond)
17	SCREW
20	WPL 64211
21	Timer, 60Hz.
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
31	Harness, Wiring
39	Relay, Push-To-Start
48	Timer Knob Assembly
49	Knob, Push To Start
50	Connector (Door Switch)
51	WP596797 Whirlpool Terminal
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
70	Clip, Harness (Rear Bulkhead Area)
72	Wire, Ground
76	WP694419 Whirlpool Buzzer Adjuster
79	Switch, Clean-Touch
