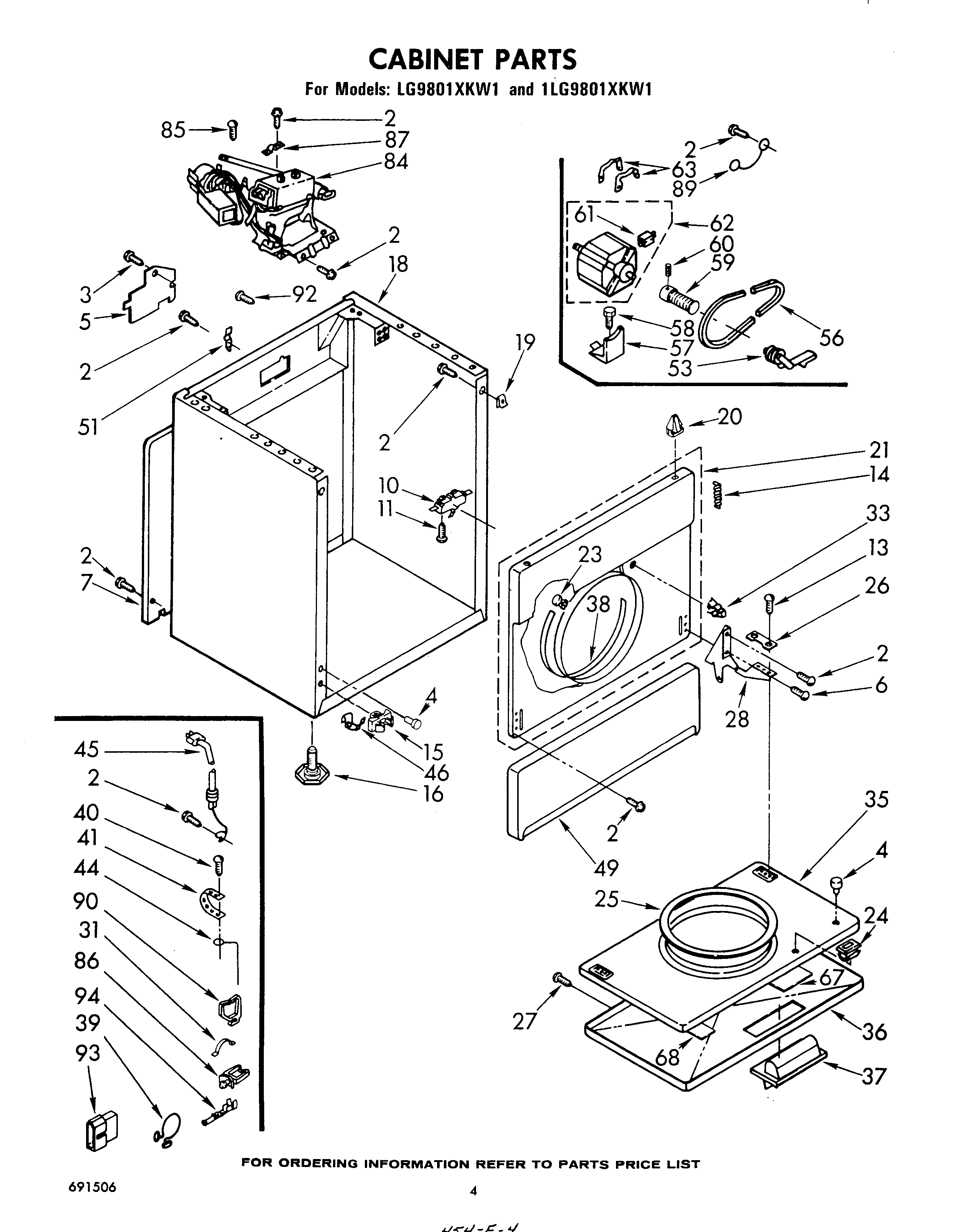

LG9801XKW1 03 – CABINET
Written by
in
LG9801XKW1 03 – CABINET
Products
Position
Product
2
SCREW
4
238614 Whirlpool Bumper Hinge
5
W11736322 Whirlpool Cover Assembly
6
Screw, 10-32 x 1/2
7
Panel, Rear
10
W10820036 Whirlpool Door Switch Kit
11
WP98129 Whirlpool Screw
13
WP308685 Whirlpool Microwave Screw
14
Spring, Door (2)
15
Clip, Toe Panel
16
49621 Whirlpool Leveling Feet
18
Cabinet (Almond)
18
Cabinet (Harvest Wheat)
18
Cabinet (White)
18
Cabinet (Coffee)
18
Cabinet (New Avocado)
19
WP98234 Whirlpool Nut
20
WP18776 Whirlpool Lock
21
Upper Front Panel Assembly (New Avocado)
21
Upper Front Panel Assembly (Golden Harvest)
21
Upper Front Panel Assembly (Almond)
21
Upper Front Panel Assembly (White)
21
Panel Assembly, Upper Front (Coffee)
23
279220 Whirlpool Clip
24
279570 Whirlpool Dryer Door Latch Kit
25
WP3390733 Whirlpool Door Seal Assembly
26
W11252547 Whirlpool Clip Assembly
27
Screw
28
Hinge, L.H.
28
Hinge, R.H.
31
8528351 Whirlpool Clip
35
Door, Panel (White)
35
Door, Panel (Golden Harvest)
35
Door, Rear (New Avocado)
35
Door, Rear (Coffee)
35
Door, Panel (Almond)
36
Door, Front (Coffee)
36
Door, Front (Almond)
36
Door, Front (New Avocado)
36
Door, Front (Golden Harvest)
36
Door, Front (White)
37
Handle (Almond)
37
Handle (Golden Harvest)
37
WP348721 Whirlpool Handle
37
Handle, Door (Coffee)
38
279264 Whirlpool Bearing and Seal Kit
39
Clamp, Harness
40
Screw, Ground (10-24 x 1)
41
Strap, Ground
44
WPL 364089
45
W11222083 Whirlpool Power Cord
46
WP297092 Whirlpool Clip
49
Panel, Toe (Golden Harvest)
49
Panel, Toe (White)
49
Panel, Toe (Almond)
49
WPL 689248
49
WPL 689247
51
WP8066217 Whirlpool Hinge
53
WP691366 Whirlpool Dryer Idler Pulley Assembly
56
341241 Whirlpool Dryer Drum Belt
57
WP348780 Whirlpool Base
58
3400500 Whirlpool Screw
59
WPL 348946
60
SCREW, SET
61
279827 Whirlpool Dryer Drive Motor
63
WP660658 Whirlpool Clamp
67
WPL 691207
68
WPL 691525
68
WPL 691206
84
WPL 688637
84
WPL 688639
84
Kit, Conversion Type 1 To Type 3 (MFD)
84
W10402145 Whirlpool LP Gas Connection
85
WPL 343826
86
488946 Whirlpool Air Conditioner Clamp
87
341029 Whirlpool Clamp
89
Wire, Ground (Motor)
90
Clip, Harness (Rear Bulkhead Area)
93
353424 Whirlpool Connector
93
Connector (Door Switch)
94
WP94614 Whirlpool Terminal
94
WP596797 Whirlpool Terminal
←
